Huawei EchoLife HG8312R GPON ONU Modem Optical Network Terminal

  • Huawei EchoLife HG8312R GPON ONU Modem Optical Network Terminal
  • Huawei EchoLife HG8312R GPON ONU Modem Optical Network Terminal
  • Huawei EchoLife HG8312R GPON ONU Modem Optical Network Terminal
  • Huawei EchoLife HG8312R GPON ONU Modem Optical Network Terminal
Place of Origin China
Brand Name Huawei
Certification ISO9001
Model Number HG8312R
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 3-5 working days
Payment Terms Western Union, T/T, L/C
Supply Ability 50000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type GPON ONU ONT PON Port SC/UPC
FE Port 2FE Network Wireless Lan, Wired LAN, TCP, Ip, Wifi
P/N HG8312R Dimension 130*105*30 (mm)
Weight 0.2kg Compatible OLT Huawei Series
High Light

HG8312R GPON ONU

,

Huawei EchoLife GPON ONU

,

HG8312R Optical Network Terminal
Leave a Message
Product Description

Huawei EchoLife HG8312R EPON GPON ONT ONU Modem Optical Network Terminal



Huawei Echolife HG8312R Description:

- The Huawei EchoLife HG8312R is an indoor Optical Network Terminal (ONT) used in Huawei’s FTTH solution.
- By using GPON technology, ultra-broadband access is provided for home and SOHO users. The Huawei EchoLife HG8312R provides 2FE+1POTS ports.
- The Huawei EchoLife HG8312R features high-performance service forwarding capabilities to ensure excellent experience with VoIP, Internet, and HD video services.
- Therefore, the Huawei EchoLife HG8312R provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.



Huawei Echolife HG8312R Parameter:

Fiber port

1 GPON interface,

SC single-mode/single-fiber,

Downstream rate 2.5Gbps,

Upstream rate 1.25Gbps
Wavelength

Tx 1310nm

Rx 1490nm
Fiber interface SC/PC
RX sensitivity <-28dBm (1490nm)
WLAN

IEEE802.11b/g/n,

300Mbps,

a built-in antenna
LAN

1*10/100/1000Mbps adaptive Ethernet ports,

full/half duplex,

RJ45 interface
Throughput Throughput can reach 950Mbps or more
POTS NO*FXS, RJ11 connector
DC power 12V 1A, external AC-DC power adapter
Button Reset, power
Power ≤8W
Operation

Working temperature: -5-+55℃

Working humidity:10-90% (non-condensation)
Storage

Storage temperature: -30℃-+60℃

Storage humidity: 10-90% (non-condensation)
Dimension 130*105*30mm (length*width*height)
Net weight ≤0.2Kg

* Plug-and-play (PnP): Internet and IPTV services can be deployed by one click on the NMS and on-site configuration is not required.
* Remote diagnosis: Remote fault locating is implemented by the precise positioning feeder and drop cables, and identifying problems of software and hardware.
* High speed forwarding: GE line rate forwarding.
* Applications & Benefits

* High-performance forwarding capability provides an optimal terminal solution and future oriented service supporting capabilities for FTTH deployment.
* Plug-and-play makes service provisioning easier and more quickly.

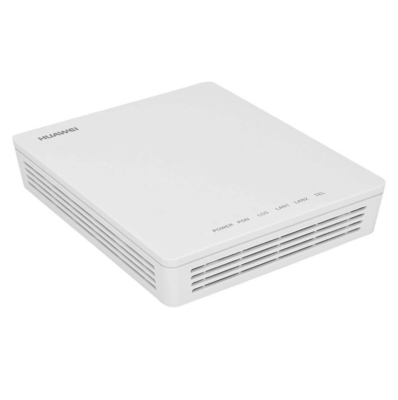

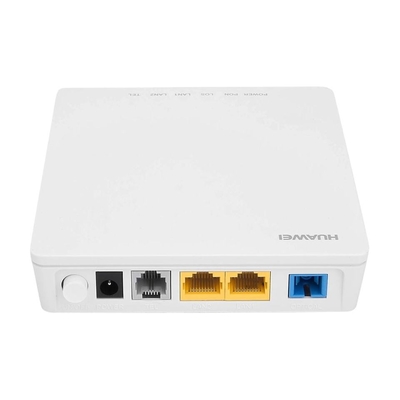

Huawei Echolife HG8312R Product Photo:

Huawei EchoLife HG8312R GPON ONU Modem Optical Network Terminal 0



Huawei Echolife HG8312R Function:

Smart O&M

• Variable-length OMCI messages

• Active/Passive rogue ONT detection and isolation

• PPPoE/DHCP simulation testing
QoS

• Ethernet port rate limitation

• 802.1p priority

• SP/WRR/SP+WRR

• Broadcast packet rate limitation

• Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Power Saving

• Indicator power saving

• Power consumption reduction of idle components in power-saving state

• COCv4
Smart interconnection • SIP/H.248 auto-negotiation
Security • MAC address filtering
Common O&M

• OMCI/Web UI

• Dual-system software backup and rollback

• 802.1ag Ethernet OAM

• Optical link measurement and diagnosis

• Loopback check
Multicast

• IGMP v2/v3 snooping

• MLD v1/v2 snooping

• Fast leave

• VLAN tag translation, transparent transmission, and removal for downstream multicast packets

• IGMP/MLD protocol packet rate limitation



Huawei ONU Main Catalogy:

HG8010H
GPON 1*GE ONU
EG8010H
GPON 1*GE ONU
HG8311
GPON 1*GE ONU
HG8010
EPON 1*GE ONU
HG8240F
EPON 4*FE+2Tel onu
HG8240F
GPON 4*FE+2Tel onu
HG8040F
GPON 4*FE ONU
HG8040F
EPON 4*FE ONU
HG8540(M)
GPON 1*GE+3FE ONU
HG8310M
GPON 1*GE ONU
HG8340M
GPON 4*FE ONU
HG8342M
GPON 4*FE+2Tel ONU
HG8346M
GPON 4*FE+2TEL+WIFI ONU
HG8546M
GPON 1*GE+3FE+1TEL+1USB+WIFI ONU
HG8247H
GPON 4GE+2TEL+WIFI+1USB+CATV ONU
HS8546V5
GPON 4*GE+1TEL+1USB+WIFI(2.4G/5G)ONU
EG8145A5
EPON/GPON 4GE+1TEL+2USB+WIFI(2.4G/5G)
EG8145V5
EPON/GPON 4GE+1TEL+2USB+WIFI(2.4G/5G)
HN8245Q
UP Date:10*ge 4ge+2tel+2usb+wifi(2.4G/5G)
MA2671-4T
GPON EPON 4GE ONU
MA5675-I
GPON 1GE+1FE+1TEL+WIFI+USB
MA5675
GPON EPON 4GE+4TEL+WIFI ONU
MA5675M
GPON EPON 4GE+4TEL+WIFI ONU
HG8321
GPON 2FE+1TEL ONU



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
