ODF Fiber Optic Splitter 3U 4U Patch Panel Distribution Frame Steel Tape Aluminum Alloy

  • ODF Fiber Optic Splitter 3U 4U Patch Panel Distribution Frame Steel Tape Aluminum Alloy
  • ODF Fiber Optic Splitter 3U 4U Patch Panel Distribution Frame Steel Tape Aluminum Alloy
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-3U-LGX-Splitter-x
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape/ Aluminum Alloy High 3U
Splitter Type Mini Tube Type Split Way 2 Way Input
Connector LC/APC Cable 0.9mm
High Light

ODF Fiber Optic Splitter

,

Fiber Optic Splitter 4U Patch Panel

,

Aluminum Alloy Fiber Optic Patch Panel
Leave a Message
Product Description



3U 4U PLC Splitter ODF Optical Fiber 1*4 1*8 LGX Rackmount Patch Panel Distribution Frame



Description:

- Fiber Optic Distribution Frame/ ODF is a high-capacity, high-density fiber distribution frame, suitable composition and distribution of fibers in the optical access network to achieve the fiber optic lines connection, distribution and scheduling, the 19” rack-mounted patch panel, and fiber optic splitter can be loaded inside.

- This 2*16 LGX Box Fiber Optical Splitter LC/APC is special design for our 3U Splitter Chassic Patch Panel. Please contact with our sales team to get detail information about this box.

- The box can make by steel tape with thickness 0.8mm, 1.0mm and 1.2mm. Or also can make by Aluminium Alloy material.

- Paint color can choose grey, white or black or as your request.

- OEM service is open for all of old and new customer.

- Splitter and adapter installation charging is free if you buy all patch panel, splitter and adapter from us.

- Logo printing is free for all of order with quantity more than 100pcs.



Descriptions:

- Fiber optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

- The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation.

- It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.



Product picture:

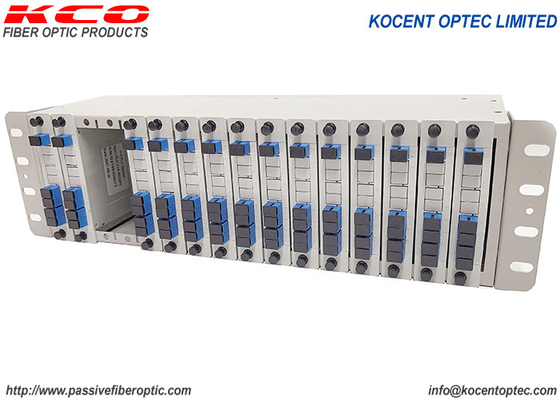

ODF Fiber Optic Splitter 3U 4U Patch Panel Distribution Frame Steel Tape Aluminum Alloy 0

ODF Fiber Optic Splitter 3U 4U Patch Panel Distribution Frame Steel Tape Aluminum Alloy 1



Features:

- Low insertion loss.

- Low Polarization Dependent Loss.

- Excellent Environmental Stability.

- Excellent Mechanical Stability.

- Meet Telcordia GR-1221 and GR-1209.



Applications:

  • Fiber to The Home (FTTH)
  • Passive optical networks (PON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
  • FTTX Systems
  • PON Networks
  • CATV Links
  • Optical Signal Distribution



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



Packing information:

- 1pc/small carton box/ 45*15*14cm/1.85kg

(full loaded 1*4 PLC Splitter: 3.3kg)

(full loaded 1*8 PLC Splitter: 3.5kg)



- 8pcs/carton box/ 46*30*59cm/16kg



Relation products:



ODF Fiber Optic Splitter 3U 4U Patch Panel Distribution Frame Steel Tape Aluminum Alloy 2



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.





Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
