SM G657A1 Fiber Optic Patch Cord with 1310/1550nm Wavelength for 10km Data Transport

  • SM G657A1 Fiber Optic Patch Cord with 1310/1550nm Wavelength for 10km Data Transport
  • SM G657A1 Fiber Optic Patch Cord with 1310/1550nm Wavelength for 10km Data Transport
  • SM G657A1 Fiber Optic Patch Cord with 1310/1550nm Wavelength for 10km Data Transport
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number DLC Unitboot
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 80,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 LC Uniboot Fiber SM, MM
Insertion Loss 0.3dB Return Loss 55dB (SM), 30dB (MM)
Color Yellow (SM), Orange (OM1, OM2), Aqua (OM3, OM4) Cover LSZH
Connector 2 DLC, DSC, ST, FC, E2000, DIN, D4, MPO... Cable Diameter 2.0mm
Patch Cord Length Customized
Highlight

Duplex Fiber Optical Patch Cord

,

Uniboot Fiber Optical Patch Cord

,

Monomode Optical Patch Cord
Leave a Message
Product Description
Single Mode Monomode Multimode LC UPC APC Uniboot Duplex Fiber Optical Patch Cord
KOCENT OPTEC LIMITED offers high-quality fiber optic solutions including indoor and outdoor fiber optic patch cords, splitters, cables, distribution boxes, and production machinery.
Product Overview
This fiber optic patch cord features LC Uniboot duplex connectors in a compact design, ideal for high-density cabling applications. The uniboot design reduces cable count by 50% compared to traditional duplex cords while allowing easy polarity reversal.
Key Features
  • Low insertion loss and high return loss
  • Excellent repeatability and interchangeability
  • High-quality zirconia ferrules
  • RoHS compliant materials
  • Superior environmental adaptability
  • Supports 1G/10G/25G/40G/100G/400G Ethernet
  • Transmission distances up to 10km (1310nm) or 40km (1550nm)
Technical Specifications
Property Value
Connector Type DLC UPC to DLC UPC
Fiber Grade G.657.A1 (Compatible with G.652.D)
Fiber Mode SM G657A1 9/125μm
Wavelength 1310/1550nm
Insertion Loss ≤0.3dB
Return Loss ≥50dB
Min. Bend Radius (Fiber Core) 10mm
Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static)
Attenuation at 1310 nm 0.36 dB/km
Attenuation at 1550 nm 0.22 dB/km
Fiber Count Duplex
Cable Diameter 2.0mm
Cable Jacket LSZH
Polarity A (Tx) to B (Rx)
Operating Temperature -20~70°C
Storage Temperature -40~80°C

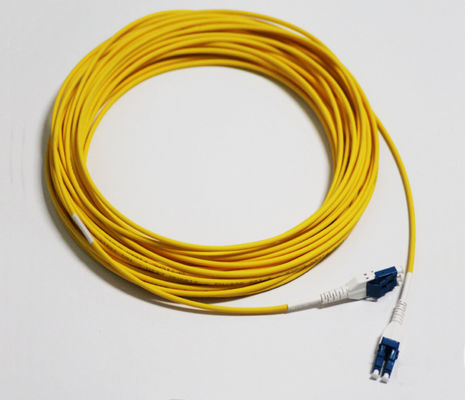

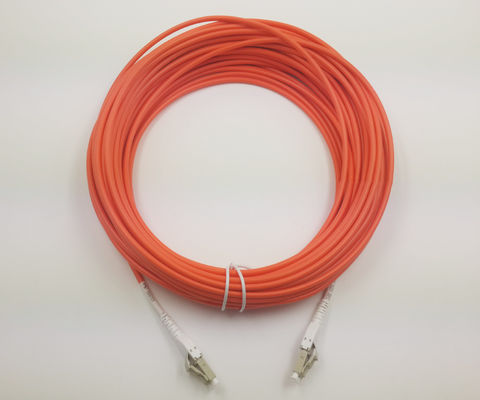

Product Images
SM G657A1 Fiber Optic Patch Cord with 1310/1550nm Wavelength for 10km Data Transport 0 SM G657A1 Fiber Optic Patch Cord with 1310/1550nm Wavelength for 10km Data Transport 1 SM G657A1 Fiber Optic Patch Cord with 1310/1550nm Wavelength for 10km Data Transport 2
OEM/ODM Services
We offer custom branding options for cables, packaging, and labels. Contact our sales team for personalized solutions.
Packaging & Shipping
  • Standard export packaging (carton box, wooden box, pallet)
  • International express: UPS, TNT, DHL
  • Air freight: CA, AA, EA
  • Sea freight from Shenzhen, Hongkong, Ningbo ports
  • Air shipment from Shenzhen, Hongkong, Hangzhou, Shanghai airports
