3in 3out 24 48 96 Fibers KCO-FOSC-106 Fiber Coupling Fiber Splice Enclosure Box

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number KCO-FOSC-106
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Inline Type Cable Ports 6 Ports, 3 In 3 Out
Cable Diameter 8.0~22.0mm Min. Capacity 4 Cores
Max Capacity 96 Cores Material PP
P/N GJS-H3304
High Light

Fiber Coupling Fiber Splice Enclosure Box

,

3in 3out Fiber Splice Enclosure Box

,

KCO-FOSC-106 Fiber Splice Enclosure Box

Leave a Message
Product Description

3in 3out 24 48 96 Fibers KCO-FOSC-106 Fiber Coupling Fiber Splice Enclosure Box



KOCENT OPTEC LIMITED - passive fiber optic product's provider

Product catalog:

- Fiber Optic Cable (outdoor cable, indoor cable, ftth drop cable, tactical cable, ...)

- Fiber Optic Patch Cord &Pigtail,

- Fiber Optic PLC Splitter, FTB splitter, CWDM, FDWM, ...

- Fiber Optic Distribution Box, Terminal Box, Distribution Frame, Cross Cabinet, Fiber Access Termination Box, ...

- Fiber Optic Splice Cloure for wall mount, earial, duct, underground, pole mount, ...

- Fiber Optic Accessories: adapter, connector, attenuator, ferrule heat shrink tube, ....



Description:
- KCO-FOSC-106 fiber optic splice closure is a multifunctional fiber splice equipment which is designed for fiber connection, branching and terminal connection.

- KCO-FOSC-106 fiber optic splice closure has 6 cable ports ( 3 input ports and 3 output ports)

- KCO-FOSC-106 fiber optic splice closure can install maximum 4 pcs of splice tray, each tray can splice 24 fibers. Maximum capacity 96 fibers.

- KCO-FOSC-106 fiber optic splice closure is suitable for wall-mounting, aerial, pole-mounting, especially used for FTTH fiber distribution.



Quick detail:

- Name: fiber optic splice enclosure box

- Type: Inline, Horizontal

- Application: Outdoor

- Part number: KCO-FOSC-106

12fo: KCO-FOSC-106-12F

24fo: KCO-FOSC-106-24F

48fo: KCO-FOSC-106-48F

96fo: KCO-FOSC-106-96F

- Size: 330*200*80mm

- Weight: about 3.5kg

- Cable entry port: 6 ports

- Max Capacity of fibers: 96 cores

- Splice tray number: max. 4 trays

- Material: PP

- Cable Diameter: 7.0-22.0mm

- Protection grade: IP67

- Working temperature: -40℃ to 65℃


Applications:

- Widely used in FTTH access network

- PON system

- CATV networks

- Local area networks

- Metro
- Telecommunication networks
- Data communications networks

- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.



Features:

- High-strength engineering plastic shell
- High mechanical performance
- Endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
- Great aging resistant ability
- Does not require special tools, easy to install and open the duplicate.
- Excellent sealing performance



Product pictures:

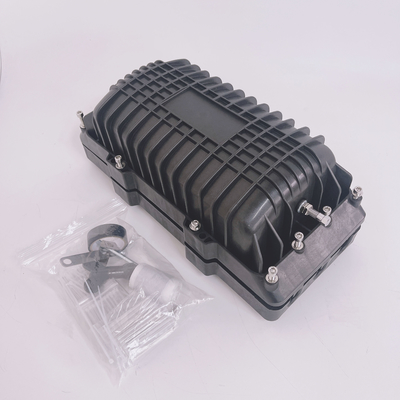

3in 3out 24 48 96 Fibers KCO-FOSC-106 Fiber Coupling Fiber Splice Enclosure Box 0

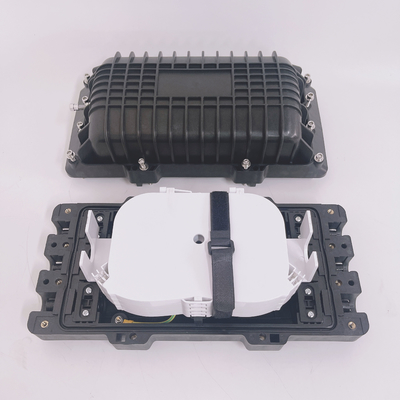

3in 3out 24 48 96 Fibers KCO-FOSC-106 Fiber Coupling Fiber Splice Enclosure Box 1





Main performance:
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;
- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.



OEM/ODM Service:

- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
