1x8 Fiber Optic Splitter PLC Splitter with SC/APC Connector and G657A1 Fiber for FTTH Networks

  • 1x8 Fiber Optic Splitter PLC Splitter with SC/APC Connector and G657A1 Fiber for FTTH Networks
  • 1x8 Fiber Optic Splitter PLC Splitter with SC/APC Connector and G657A1 Fiber for FTTH Networks
  • 1x8 Fiber Optic Splitter PLC Splitter with SC/APC Connector and G657A1 Fiber for FTTH Networks
  • 1x8 Fiber Optic Splitter PLC Splitter with SC/APC Connector and G657A1 Fiber for FTTH Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x4-2.0-1.5M-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000 set/ month
Product Details
Package Type Mini Plc Splitter Pigtail Length 1.0m, 1.5m
Splitter Type 1*4, 1x4, 1:4 Connector SC/APC
Cable Dia. 2.0mm P/N KCO-ABS-1x4-2.0-1.5M-SCA
Connector Color Green Pigtail Color Yellow
Highlight

SMF G657A1 fiber optic splitter 1x8

,

PLC fiber optic splitter SCAPC connector

,

FTTH fiber optic splitter 2.0mm
Leave a Message
Product Description
Product Overview

The SMF G657A1 PLC Fiber Optic Splitter (1×8) is a passive optical power management component designed to uniformly split a single incoming fiber optic light beam into eight output paths. Based on Planar Lightwave Circuit (PLC) technology, it delivers reliable, consistent performance for FTTH and FTTx deployments.

Housed in a rugged ABS black plastic box, this splitter provides robust protection for the internal silica optical waveguide chip and fiber arrays. It is ideal for standard fiber-to-the-home (FTTx) networks, data communications, and outdoor distribution boxes.

Technical Data
  • Fiber Type: Single Mode Fiber G657A1
  • Operating Wavelength: Wide operating window spanning 1260 nm to 1650 nm (fully covering EPON and GPON bands)
  • Insertion Loss: Typically ≤ 10.8 dB
  • Polarization Dependent Loss (PDL): Exceptionally low, usually ≤ 0.2 dB
  • Fiber Tail: 2.0 mm diameter pigtails, 1.0 m length
  • Connector Types: SC/APC
Key Features
  • Uniform Power Splitting
  • Wide Operating Wavelength
  • High Thermal Stability
  • Low Insertion & High Return Loss
  • Ultra-Low Polarization Dependent Loss (PDL)
  • Bend-Insensitive Fiber Core
  • Rugged ABS Plastic Box
  • Heavy-Duty Fiber Pigtails resist pinching and pulling far better than bare fiber versions
  • Completely Passive Design
Technical Specifications
Parameter Specification
Configuration Type 1×8, 1:8, 1*8
Fiber Type G.657A1
Pigtail Diameter 2.0 mm
Pigtail Length 1.0 m input / 1.0 m output
Connector Type SC/APC
Loose Tube Color Yellow
MNF Kocent Optec Limited
Origin Guangdong, China
Applications
  • FTTx networks (FTTB, FTTH, FTTC)
  • Passive optical networks (PON)
  • CATV systems
  • Local area networks (LAN)
  • Test and measurement equipment
  • DWDM and CWDM systems
Product Images

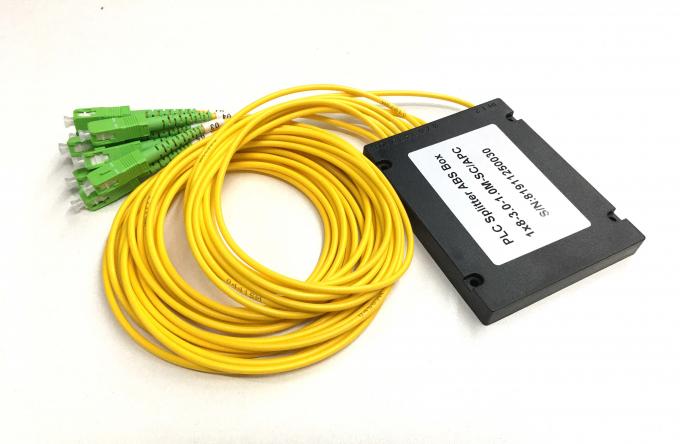

SMF G657A1 PLC fiber optic splitter 1x8 SC/APC with ABS box and yellow pigtails – front view SMF G657A1 PLC fiber optic splitter 1x8 SC/APC with ABS box and yellow pigtails – side view showing connectors SMF G657A1 PLC fiber optic splitter 1x8 SC/APC with ABS box and yellow pigtails – top view showing label SMF G657A1 PLC fiber optic splitter 1x8 SC/APC with ABS box and yellow pigtails – close-up of SC/APC connector
Packaging & Shipping
  • Standard export packing (carton box, wooden box, pallet)
  • Shipping options: Express (DHL, UPS, TNT), Air freight, Sea freight
  • Export ports: Shenzhen, Hongkong, Ningbo
  • Export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
OEM/ODM Services

Custom branding is available for cables, packaging, labels, and other components. Contact our sales team for personalized solutions.

OEM/ODM service example showing custom branding on fiber optic splitter packaging and labels
