1x16 Fiber Optic PLC Splitter with SC/APC Connector in ABS Box, Single Mode G657A1 Pigtail 2.0mm for FTTx PON Networks

  • 1x16 Fiber Optic PLC Splitter with SC/APC Connector in ABS Box, Single Mode G657A1 Pigtail 2.0mm for FTTx PON Networks
  • 1x16 Fiber Optic PLC Splitter with SC/APC Connector in ABS Box, Single Mode G657A1 Pigtail 2.0mm for FTTx PON Networks
  • 1x16 Fiber Optic PLC Splitter with SC/APC Connector in ABS Box, Single Mode G657A1 Pigtail 2.0mm for FTTx PON Networks
  • 1x16 Fiber Optic PLC Splitter with SC/APC Connector in ABS Box, Single Mode G657A1 Pigtail 2.0mm for FTTx PON Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x4-2.0-1.5M-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000 set/ month
Product Details
Package Type Mini Plc Splitter Pigtail Length 1.0m, 1.5m
Splitter Type 1*4, 1x4, 1:4 Connector SC/APC
Cable Dia. 2.0mm P/N KCO-ABS-1x4-2.0-1.5M-SCA
Connector Color Green Pigtail Color Yellow
Highlight

ABS fiber optic splitter box

,

1x16 PLC splitter G652D

,

single mode fiber splitter pigtail
Leave a Message
Product Description
Product Overview

The ABS Box Type 1×16 Fiber Optic PLC Splitter is a high-performance passive optical power management device designed to evenly distribute a single optical input into 16 distinct outputs. It features a yellow outsheath pigtail with a 2.0 mm diameter and is housed in a rugged black ABS plastic box for reliable physical protection.

Fiber Optic Splitter PLC (Planar Lightwave Circuit) is a passive optical power management component used to split a single (or double) incoming fiber optic light beam into multiple output paths uniformly. This 1×16 configuration is ideal for deployments in FTTx networks, PON installations, and telecommunications closets.

Technical Data Information
  • Fiber Type: Single Mode Fiber G657A1
  • Operating Wavelength: Wide operating window spanning 1260 nm to 1650 nm (fully covering EPON and GPON bands)
  • Insertion Loss: Typically ≤ 14.0 dB
  • Polarization Dependent Loss (PDL): Exceptionally low, usually ≤ 0.2 dB
  • Fiber Tail: 2.0 mm diameter pigtails, 1.0 m length
  • Connector Types: SC/APC
Key Features
  • Uniform Power Splitting
  • Wide Operating Wavelength
  • High Thermal Stability
  • Low Insertion & High Return Loss
  • Ultra-Low Polarization Dependent Loss (PDL)
  • Bend-Insensitive Fiber Core
  • Rugged ABS Plastic Box
  • Heavy-Duty Fiber Pigtails that resist pinching and pulling far better than bare fiber versions
  • Completely Passive Design
Technical Specifications
Parameter Specification
Configuration Type 1×16, 1:16, 1*16
Fiber Type G.657A1
Pigtail Diameter 2.0 mm
Pigtail Length 1.0 m input / 1.0 m output
Connector Type SC/APC
Loose Tube Color Yellow
MNF Kocent Optec Limited
Origin Guangdong, China
Applications
  • FTTx Networks (FTTH, FTTB, FTTC)
  • Passive Optical Networks (PON)
  • Cable Television (CATV) Infrastructure
  • Local Area Networks (LAN) & WAN
  • Outdoor Fiber Distribution Hubs (FDH)
  • Wall-Mounted Distribution Boxes
  • Optical Splice Closures (FOSC)
Product Images

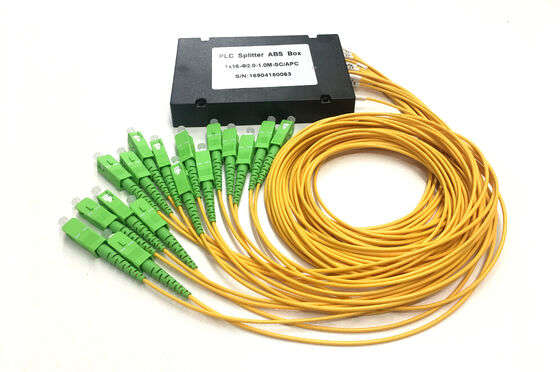

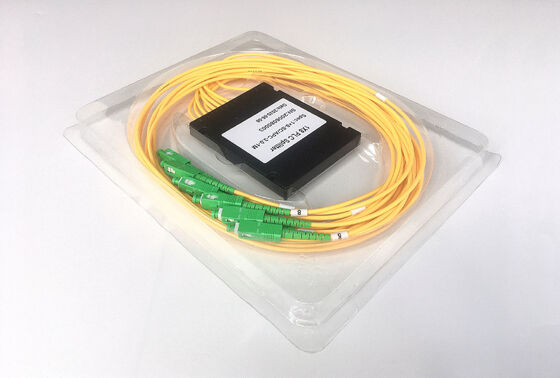

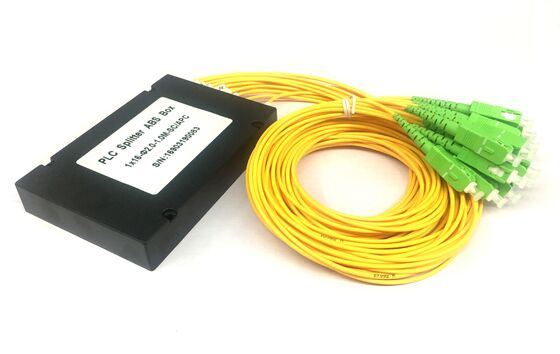

ABS box type 1x16 fiber optic PLC splitter front view with SC/APC connectors and yellow pigtails ABS box type 1x16 fiber optic PLC splitter side view showing rugged black plastic housing Close-up of SC/APC connector pigtails on 1x16 PLC fiber optic splitter 1x16 fiber optic PLC splitter with 2.0mm yellow pigtails laid out showing full length
Packaging & Shipping
  • Standard export packing (carton box, wooden box, pallet)
  • Shipping options: Express (DHL, UPS, TNT), Air freight, Sea freight
  • Export ports: Shenzhen, Hongkong, Ningbo
  • Export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
OEM/ODM Services

Custom branding is available for cables, packaging, labels, and other components. Contact our sales team for personalized solutions.

OEM/ODM service example showing custom branded fiber optic splitter packaging and labels
