FTTx Fiber Optic Tools Handheld Fiber Optical Power Meter , Laser Source Power Meter
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001 |
| Model Number | RY3205 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | soft caring case, carton box |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 20,000 set/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Light Source Power | 10mW | Wave Length | 850, 980, 1300, 1310, 1490, 1550 Um |
|---|---|---|---|
| Light Source Length | 10km | Connector | FC/UPC |
| Measuring Range | -70~+10/ -50~+26 | Resolution | 0.01dB |
| Highlight | fiber optic accessories,fiber optic tools and equipment |
||
Product Description
FTTx Fiber Optic Tools Handheld Fiber Optical Power Meter & Laser Source Power Meter
We supply brand new fiber optic power meters and related fiber optic test equipment including fiber optical light sources, laser pens, OTDRs, fiber optic fusion splicer machines, and more. We offer OEM and ODM services for fiber optical polishers, including custom branding on machines and packaging.
RY3205 Optical Power Meter Overview
The RY3205 series handheld fiber optical multimeter integrates laser light or red light with a precise optical power meter. This all-in-one solution eliminates the inconvenience of carrying two separate instruments, providing fiber network installation, operation, and maintenance engineers with accurate, durable, and efficient testing tools.
Designed specifically for FTTx applications and maintenance, the RY3205 PON Optical Power Meter can simultaneously test and evaluate PON signals while performing normal power measurements. It concurrently measures optical power values for voice, data, and video signals, making it an essential tool for PON project construction and maintenance.
RY3205 Key Features
- User calibration function
- LC/FC/SC/ST and other common interfaces
- Configurable automatic shutdown function
- High stability mode laser output with single/multi-wavelength CW mode or modulation mode
- Color LCD display
- Rechargeable lithium batteries for reduced operating costs
- Data transfer to PC via RS232 or USB

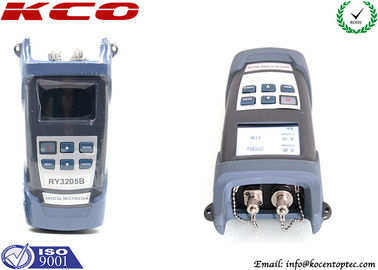

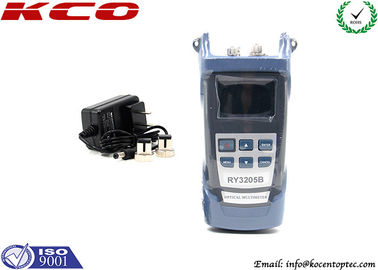

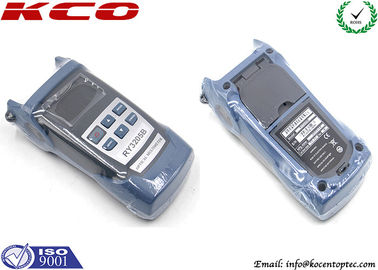

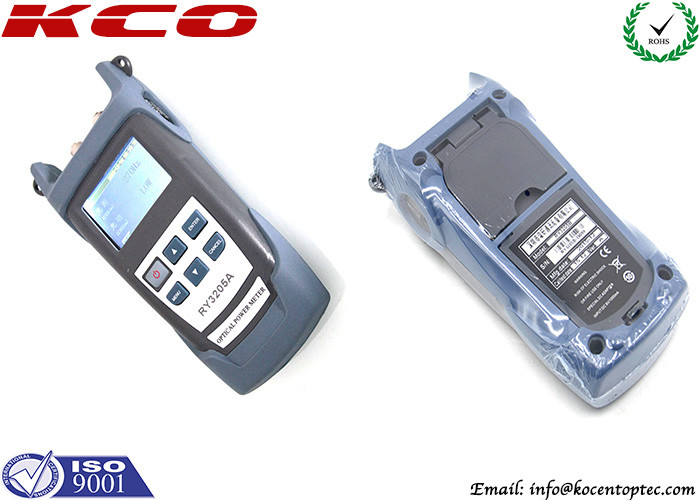

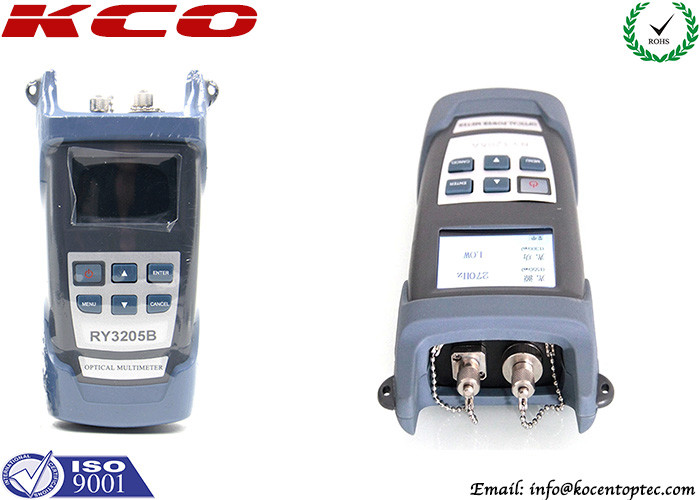

Product Image
Technical Specifications
| Model | GW3205 |
|---|---|
| Measuring Range | -70~+10/-50~+26 |
| Probe Type | InGaAs |
| Uncertainty (dB) | ±0.2(5%) |
| Standard Wavelength (nm) | 850, 980, 1300, 1310, 1490, 1550 |
| Display Resolution | 0.01 |
| Light Source Wavelength | 1310/1550 (optional) |
| Light Source Output Power | 10mw |
| Display | 2.4" TFT color display, LED back light |
| Optical Interface | FC/PC |
| Measurement Unit | dB/dBm/μW |
| Resolution (dB) | 0.01 |
| Power Supply | Internal Battery |
| Operation Temperature | -10°C~60°C |
| Storage Temperature | -25°C~70°C |
| Dimensions (mm) | 172x82x33 |
| Weight (g) | 280g |
| Battery Runtime | No less than 15 hours |
| Auto Power-off | After 10 minutes |
Package Contents
- RY3205 fiber optical power meter
- User Manual
- Cotton swabs
- AC power adapter
- Soft carrying case

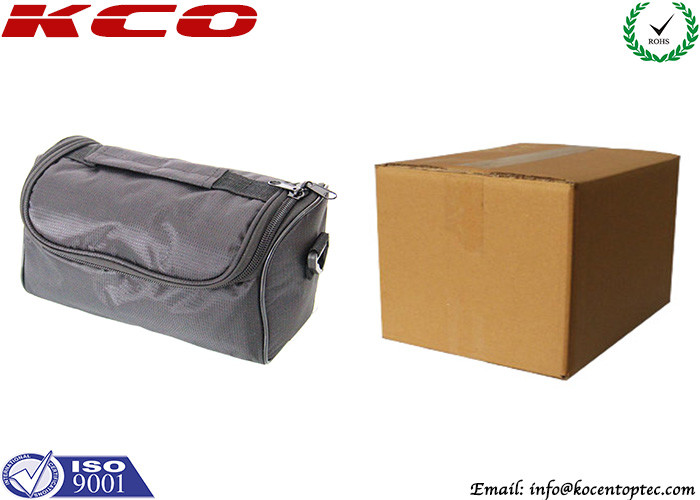

Product Packaging
Customization Services
Custom labeling and packaging services are available. Kocent Optec Limited is a leading manufacturer and supplier of fiber optic power meters and fiber optic light source equipment. We welcome inquiries for high-quality products, wholesale customized fiber optical power meters, and offer free samples when necessary.
