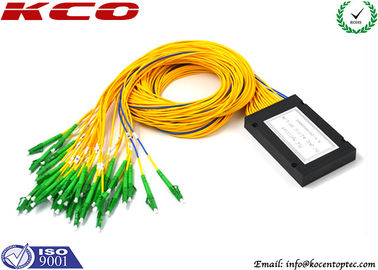

LC APC Connector PLC Fiber Optic Splitter Module 2x32 2:32 Corning Fiber ABS Box Type

  • LC APC Connector PLC Fiber Optic Splitter Module 2x32 2:32 Corning Fiber ABS Box Type
  • LC APC Connector PLC Fiber Optic Splitter Module 2x32 2:32 Corning Fiber ABS Box Type
  • LC APC Connector PLC Fiber Optic Splitter Module 2x32 2:32 Corning Fiber ABS Box Type
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number PLC-LCA-2x32 or PLC-SCA-2x32
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box
Delivery Time 3~7 days after payment
Payment Terms L/C,T/T,Western Union
Supply Ability 50,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 2x32 Connector SC/APC, SC/UPC
Uniformity (Max.) 2.5dB Insertion Loss 18.2dB
PDL(Max.) 0.4dB ABS Plastic Box Size 120x90x18mm
Highlight

Planar Lightwave Circuit Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
LC APC Connector PLC Fiber Optic Splitter Module 2x32
2:32 Corning Fiber ABS Box Type PLC splitter designed for high-performance fiber optic networks with excellent reliability and stability.
Product Overview
This 2x32 fiber optic PLC splitter is available in both connectorized and un-connectorized configurations, featuring Corning fiber and ABS plastic box construction for superior performance in various network applications.
Available Configurations
  • Split Ratios: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64
  • Split Ratios: 2x2, 2x4, 2x8, 2x16, 2x32, 2x64
  • Un-connectorized options available
  • Fiber jacketing: 2mm to 3mm
  • ABS box type or metal box/module cassette type
  • Connector options: SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC
  • Custom connector configurations and combinations
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
Key Features
  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability
  • Compliant with Telcordia GR-1221 and GR-1209 standards
Product Image
LC APC Connector PLC Fiber Optic Splitter Module 2x32 2:32 Corning Fiber ABS Box Type 0
Technical Specifications
Fiber length: 1m or custom length
Connector Type: Custom specified
Optical Fiber Type: Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min: 55
Return Loss (dB) Min: 55 (50)
Power Handling (mW): 300
Operating Wavelength (nm): 1260 ~ 1650
Operating Temperature (°C): -40 ~ +85
Storage Temperature (°C): -40 ~ +85
Performance Specifications
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1
OEM/ODM Services
We offer comprehensive OEM and ODM services, including custom branding on cables, packaging, labels, and other components to meet your specific requirements.
Packaging & Shipping
Packaging: Standard export packing including carton boxes, wooden boxes, and wooden pallets.
Shipping Methods: International express (UPS, TNT, DHL), international air freight (CA, AA, EA), and sea freight.
