LAN WAN Single Mode 9/125 12 Cores 24 Cores MPO MTP Breakout Cable MPO MTP Fan-out Cable

  • LAN WAN Single Mode 9/125 12 Cores 24 Cores MPO MTP Breakout Cable MPO MTP Fan-out Cable
  • LAN WAN Single Mode 9/125 12 Cores 24 Cores MPO MTP Breakout Cable MPO MTP Fan-out Cable
  • LAN WAN Single Mode 9/125 12 Cores 24 Cores MPO MTP Breakout Cable MPO MTP Fan-out Cable
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MPO-8LC-OM3-xM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Type MPO, MTP Other Type LC, FC, SC
Mode Single Mode 9/25 Cover PVC, LSZH, Customized
Insertion Loss 0.3dB Return Loss 60dB
Highlight

qsfp breakout cable

,

fiber optic breakout cable
Leave a Message
Product Description
Product Overview

LAN WAN MPO MTP Breakout Cable Fiber Single Mode 9/125 12 Cores 24 Cores. MTP/MPO harness cable, also called MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end. The main cable is usually 3.0mm LSZH round cable with 2.0mm breakout cable. Female and Male MPO/MTP connectors are available, and the Male type connector has pins. All MPO/MTP connectors we use are USConec Brand.

All Kocentoptec's MPO/MTP fiber patch cables are compliant to IEC-61754-7 and TIA-604-5 (FOCIS-5) standards. We can produce both Standard type and Elite type. For the jacket cable, we can do 3.0mm round cable, flat jacketed ribbon cable, or bare ribbon MTP cables. We offer Single mode and Multimode MTP fiber optical patch cables, custom design MTP fiber optic cable assemblies. 9/125, 50/125, 62.5/125, SM, MM, Simplex, Duplex, 12-core MTP/MPO patch cables, 24-core MTP/MPO patch cables, and 48-core MTP/MPO patch cables are all available.

MTP/MPO harness cables are designed for high density applications requiring high performance and speedy installation. Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. The MTP/MPO harness cables are terminated with MTP/MPO connectors on one end and standard LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end. Therefore, they can meet a variety of fiber cabling requirements.

Key Features
  • Single mode and multi mode (flat) APC (catercorner 8 degree angled) available
  • High fiber density (maximum 24 fibers for Multimode)
  • Fiber in single connector: 4, 8, 12, 24
  • Insert/Pull latching connector
  • High reflection loss with APC
  • Comply with Telcordia GR-1435-CORE specification and RoHS standard
Applications
  • FTTH, CATV, LAN, MAN, WAN, Test & Measurement
  • Video transmission, Data transmission
  • Active Device Termination
  • Premise Installations
  • Telecommunication and Data processing Networks
  • Industrial, medical & other specialized environments
  • Systems Integration for Long Haul, Metro and Access Network
About MTP/MPO Fiber Optic Patch Cord
  • MPO/MTP Single mode 3.0mm fiber optic trunk cables
  • MPO/MTP fiber optic harness patch cables
  • Data Center application with high density environment
  • Optical fiber to the building
  • Internal connector application in fiber equipment
Product Pictures

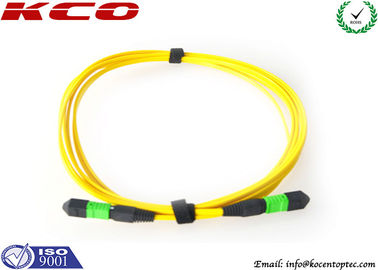

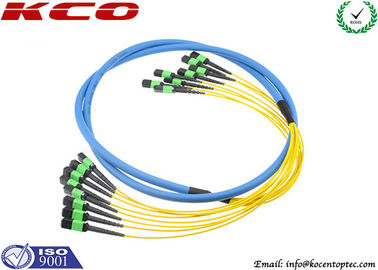

MTP/MPO breakout trunk cable fiber single mode 9/125 with 12 and 24 cores, showing connector and cable assembly
MTP/MPO Connector Specifications
TypeSingle Mode (APC Polish)Single Mode (UPC Polish)Multi Mode (PC Polish)
Fiber Count8, 12, 24 etc.8, 12, 24 etc.8, 12, 24 etc.
Fiber TypeG652D, G657A1 etc.G652D, G657A1 etc.OM1, OM2, OM3 etc.
Max. Insertion LossElite Low Loss ≤0.35 dB
Standard ≤0.75 dB		Elite Low Loss ≤0.35 dB
Standard ≤0.75 dB		Elite Low Loss ≤0.35 dB
Standard ≤0.60 dB
Return Loss≥60 dB≥60 dBNA
Durability≥500 times≥500 times≥500 times
Operating Temperature-40℃~+80℃-40℃~+80℃-40℃~+80℃
Test Wavelength1310nm1310nm1310nm
Insert-pull Test1000 times <0.5 dB
Interchange<0.5 dB
Anti-tensile Force15kgf
MTP/MPO Fiber Optic Patch Cord Ordering Information
MPO/PC–MPO/PC-SM-12CORE–2M-LSZH

① Connector type   ② Ferrule end-face   ③ Core type   ④ Fiber quantity   ⑤ Cable length   ⑥ Cable type

Ordering Options
  1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
  2. Ferrule End-face: PC, UPC, APC
  3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
  4. Fiber Quantity: 4 core, 8 core, 12 core, 24 core
  5. Cable Length: 1, 2, 3 meter or customized
  6. Cable Type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
Packing
MTP/MPO patch cable packing method showing coiled cable with protective packaging
OEM & ODM Service

OEM ODM Service is always ready!

Kocent Optec Limited is one of the largest and best MTP/MPO single mode fiber optic patch cord cable manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized MTP/MPO fiber optic patch cord cable in stock with our factory. Also, free sample is also available if necessary.
