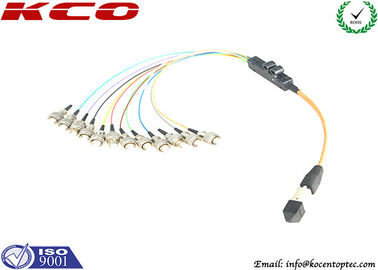

12 Fibers Single Mode LSZH MPO to FC Fanout Patch Cable and MTP to FC Patch Cord for Active Device Termination

  • 12 Fibers Single Mode LSZH MPO to FC Fanout Patch Cable and MTP to FC Patch Cord for Active Device Termination
  • 12 Fibers Single Mode LSZH MPO to FC Fanout Patch Cable and MTP to FC Patch Cord for Active Device Termination
  • 12 Fibers Single Mode LSZH MPO to FC Fanout Patch Cable and MTP to FC Patch Cord for Active Device Termination
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MPO-12FC-fanoutkits
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Connector 1 MPO, MTP Connector 2 FC/UPC Single Mode
Fiber 12 Fibers Wave Length 1260~1650nm
Length 1m, 1.5m Cover PVC, LSZH, OFNR, OFNP, Plenum
Highlight

breakout fiber optic cable

,

fiber optic breakout cable
Leave a Message
Product Description
Product Overview

The 100G MPO to FC Fanout Patch Cable (MTP to FC Patch Cord) is a high-density fiber optic breakout assembly designed for 12-fiber active device termination. It transitions a multi-fiber MPO/MTP connector into individual FC connectors, enabling efficient signal distribution in data centers, telecommunication networks, and high-density cabling environments.

About MTP/MPO Fiber Breakout Cable
  • MPO/MTP OM3 3.0mm fiber optic breakout cables
  • MPO/MTP-LC fiber optic harness patch cables
  • MTP is a high-density optical fiber pre-connect system, generally used in three key areas:
    • Data center applications with high-density environments
    • Optical fiber to the building (FTTB)
    • Internal connector applications in fiber equipment
MTP/MPO Fiber Breakout Cable Description

MTP/MPO harness cable, also called MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end. The main cable is usually 3.0mm LSZH round cable with 2.0mm breakout cable.

Female and Male MPO/MTP connectors are available; Male type connectors have pins. All MPO/MTP connectors we use are USConec brand. All Kocentoptec MPO/MTP fiber patch cables are compliant to IEC-61754-7 and TIA-604-5 (FOCIS-5) standards. Both Standard and Elite types are available. For the jacket cable, we can provide 3.0mm round cable, flat jacketed ribbon cable, or bare ribbon MTP cables.

We offer Single mode and Multimode MTP fiber optical patch cables, custom-designed MTP fiber optic cable assemblies. 9/125, 50/125, 62.5/125, SM, MM, Simplex, Duplex, 12-core MTP/MPO patch cables, 24-core MTP/MPO patch cables, and 48-core MTP/MPO patch cables are all available.

MTP/MPO harness cables are designed for high-density applications requiring high performance and speedy installation. Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. The MTP/MPO harness cables are terminated with MTP/MPO connectors on one end and standard LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end, meeting a variety of fiber cabling requirements.

Key Features
  • Single mode and multimode (flat) APC (catercorner 8-degree angled) available
  • High fiber density (maximum 24 fibers for multimode)
  • Fiber counts in single connector: 4, 8, 12, 24
  • Insert/pull latching connector
  • High reflection loss with APC
  • Complies with Telcordia GR-1435-CORE specification and RoHS standard
Applications
  • FTTH, CATV, LAN, MAN, WAN, Test & Measurement
  • Video transmission, Data transmission
  • Active Device Termination
  • Premise Installations
  • Telecommunication and Data Processing Networks
  • Industrial and Medical
  • Systems Integration for Long Haul, Metro and Access Networks
Product Image

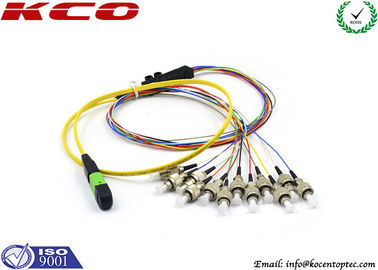

MPO to FC fanout patch cable with 12-fiber breakout, showing MPO/MTP connector on one end and individual FC connectors on the other
MTP/MPO Connector Specifications
TypeSingle Mode (APC Polish)Single Mode (UPC Polish)Multi Mode (PC Polish)
Fiber Count8, 12, 24 etc.8, 12, 24 etc.8, 12, 24 etc.
Fiber TypeG652D, G657A1 etc.G652D, G657A1 etc.OM1, OM2, OM3 etc.
Max. Insertion Loss (Elite Low Loss)≤0.35 dB≤0.35 dB≤0.35 dB
Max. Insertion Loss (Standard)≤0.75 dB≤0.75 dB≤0.60 dB
Return Loss≥60 dB≥60 dBNA
Durability≥500 times≥500 times≥500 times
Operating Temperature-40℃~+80℃-40℃~+80℃-40℃~+80℃
Test Wavelength1310nm1310nm1310nm
Insert-pull Test1000 times < 0.5 dB
Interchange< 0.5 dB
Anti-tensile Force15 kgf
Ordering Information

Example part number format:

MPO/PC - MPO/PC - SM - 12CORE - 2M - LSZH ① ② ③ ④ ⑤ ⑥
Ordering Options
  1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
  2. Ferrule End-face: PC, UPC, APC
  3. Core Type: Single-mode (SM: 9/125μm), Multimode (MM: 50/125μm or 62.5/125μm)
  4. Fiber Quantity: 4 core, 8 core, 12 core, 24 core
  5. Cable Length: 1, 2, 3 meter or customized
  6. Cable Type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
OEM/ODM Service

If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — it is no problem. Our OEM and ODM service is always ready to accommodate your requirements.

Packing & Shipping
Packing

According to standard export packing: carton box, wooden box, wooden pallet.

Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
