SC / UPC To SC / UPC FTTH Single Mode Duplex Fiber Optic Patch Cord

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC-SC-SMDX-ftth-black-xM-lszh
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 SC/UPC Duplex Connector 2 SC/UPC Duplex
Cable Length 3m, 5m, Customized Cable Color Black
Fiber Type Single Mode G657A Cable Diameter 2x3.0mm
High Light

fiber optic pigtail cables

,

patch cord pigtail

Leave a Message
Product Description

FTTH fiber optic patch cable SC/UPC to SC/UPC single mode duplex black cover optic fiber patch cord



KOCENT OPTEC LIMITED is manufacturer of ftth fiber optic patch cable, we can supply series of ftth fiber optic patch cable to you with all type of terminal connector such as: SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, ST/APC, MTRJ, E2000, etc. About the cable fiber number we can make the cable with simplex (1 fiber), duplex (2 fibers), fan-out type patch cable, or customized. The FTTH fiber cable cutting machine is already to make the cord with any length as you need.



Quick informations:

- Connector 1: SC/UPC

- Connector 2: SC/UPC

- Fiber mode: single mode, SM

- Fiber number: 2 fiber, duplex

- Fiber type: G657A

- Cable diameter: 2x3.0mm

- Cable color: black

- Cable length: 3m or customized

- Cover material: LSZH, flame retardant



Applications:

- Access Networks
- LAN (Local Area Network)
- Fiber Optic Communication System
- FTTH (Fiber to The Home) Indoor Building
- Optical fiber connected and transmitted equipment



Features:

- Good mechanical and environmental characteristic
- Simple structure, light weight and high practicability
- Low smoke zero halogen (LSZH) and flame retardant sheath
- Novel flute design, easily strip and splice, simple installation and maintenance
- Two parallel FRP strength members ensure good performance of anti-electromagnetic and crush resistance
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

- Field assembly connector (also call fast connector) can be used as a terminal connector.



Descriptions:

With easy accessiblility to the fiber and simple installation, FTTH cable can be directly connected to the homes. It is suitable for connecting with communication equipment, and used as access building cable in premises distribution system. The optical fibers are positioned in the center of cable and two parallel strength members are placed at the two sides. The metal messenger wire is on the top of cable for aerial installation and outside of all is covered with the black LSZH sheath. Also, customers can specify your required connectors.

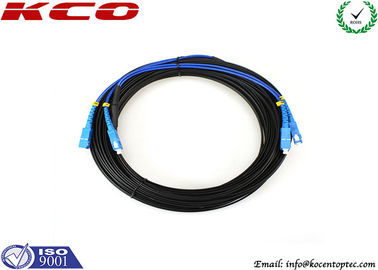

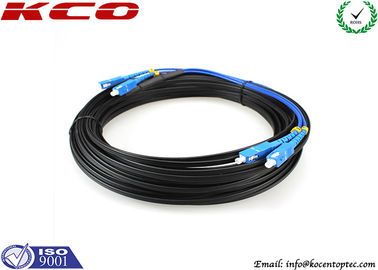

Product pictures:

SC / UPC To SC / UPC FTTH Single Mode Duplex Fiber Optic Patch Cord 0



Specifications:

Item FTTH fiber optic patch cable Applications: Indoor, outdoor
Connector 1 SC, FC, LC, ST, MTRJ, E2000, etc Connector 2: SC, FC, LC, ST, MTRJ, E2000, etc
Fiber number simplex, duplex Cable length customized
Jacket Material LSZH (Black/white/ customized) Fiber Type Single mode G652D/G657A1
Cable Diameter 2.0x5.2mm Cable Weight 18kg/km
Working temperature(°C) -40~+80 Temperature cycle(°C) -40~+75
Storage temperature(°C) -40~+85 Interchangeability (dB) ≤0.2
Plug times 1000 times Repeat ability(dB) ≤0.1
IL(dB) ≤0.2 Max IL(dB) ≤0.3
RL (dB) ≥45 ≥50 ≥60 Immersion Temperature 43°C, PH5.5 for 7days
Strength Member Material FRP Tensile Strength (long/short term) 300/600N
Crush Load (long/short term) 1100/2200 (N/100mm) Bending Radius (long/short term) 15D/20D (mm)



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
