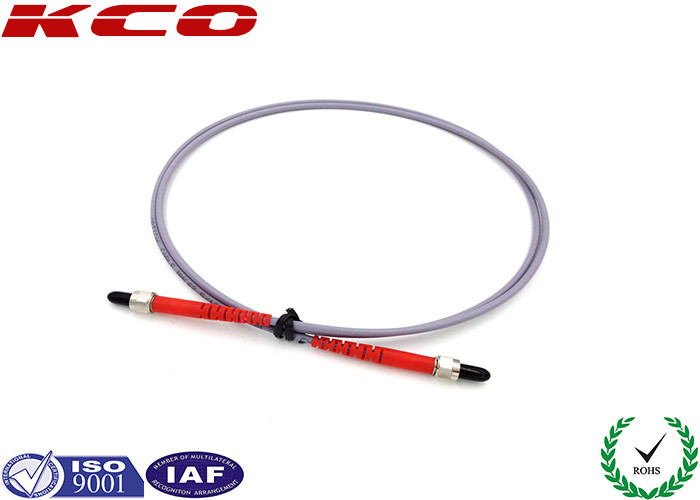

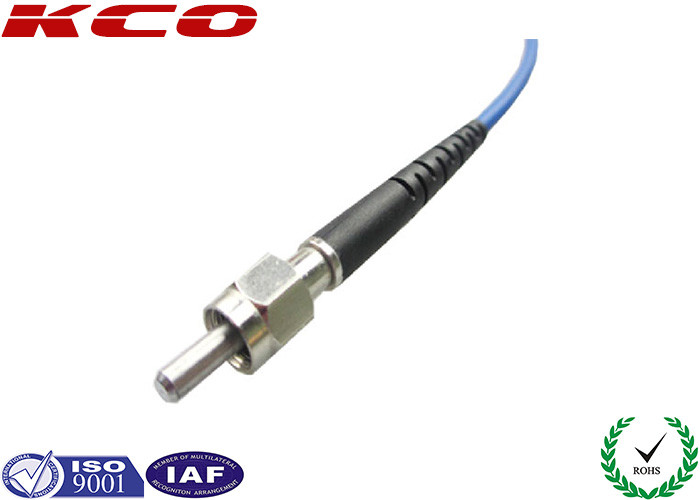

Multimode Fiber Optic Connectors SMA 906 Connector With Metal Ferrule

  • Multimode Fiber Optic Connectors SMA 906 Connector With Metal Ferrule
  • Multimode Fiber Optic Connectors SMA 906 Connector With Metal Ferrule
  • Multimode Fiber Optic Connectors SMA 906 Connector With Metal Ferrule
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SMA 905, 906
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type SMA Insertion Loss 0.2dB
Mode Multimode, MM Return Loss 55dB
Pull Strength 98N Ferrule Ceramic, Metal
Highlight

fibre optics connectors

,

optical fibre cable connectors
Leave a Message
Product Description
Multimode Fiber Optic Connectors SMA 906 Connector With Metal Ferrule
Fiber optic connectors are precision devices that connect two optical fiber cables, enabling face-to-face coupling to transmit light from one fiber to another. These connectors ensure stable transmission system performance through excellent insertion loss and optical characteristics.
Product Overview
The SMA 905 and 906 multimode fiber optic connectors feature stainless alloy or stainless steel ferrules. The stainless alloy ferrule accommodates various fiber sizes from 240μm up to 1550μm. When installing 906 SMA connectors into 905 SMA mating sleeves, a provided 1/2 sleeve must be installed on the 906 ferrule.
Applications
  • Telecommunication Networks & Wide Area Networks
  • Local Area Networks (LAN)
  • Testing Equipment & Instrumentation
  • Optical Switch Interface Connections
  • Gigabit Ethernet Systems
  • CATV and WAN Infrastructure
  • Active Device Connections
  • Premise Installations
  • Fiber to the Home (FTTH)
Key Features
  • High quality ceramic components and materials
  • End-face geometry compliant with Telcordia GR-326-CORE
  • 100% optical performance tested (Insertion Loss & Return Loss)
  • Available in simplex, duplex and higher core densities
  • Compatible with 900 micron, 2mm, and 3mm cable applications
  • Low insertion loss and high return loss
  • Excellent repeatability and reliability
  • Compact anti-pull design
  • High precision exact alignment
  • UPC, PC or APC polished connectors
Product Image

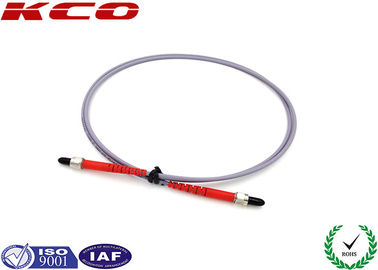

Multimode Fiber Optic Connectors SMA 906 Connector With Metal Ferrule 0
Technical Specifications
Component Material
Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ, etc.
Performance Specifications
Parameter Single Mode Multimode
Insertion Loss/Connector (Single Fiber) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB (PC), ≥50 dB (UPC), ≥60 dB (APC) N.A
Insertion Loss/MTRJ Connector 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N
Ordering Information
Connector Type
SC, LC, FC, ST, MTRJ, SMA, DIN, D4, etc.
Polish Type
UPC, PC, APC
Mode
Single mode, Multimode
Fiber Count
Simplex or Duplex
Connector Boot Diameter
0.9mm, 2.0mm or 3.0mm
OEM/ODM Services
We offer comprehensive OEM and ODM services. Custom branding options are available for cables, packaging, labels, and other components to display your company logo.
Packaging & Shipping
Packaging: Standard export packaging including carton boxes, wooden boxes, and wooden pallets.
Shipping Methods: International express (UPS, TNT, DHL), international air freight, and sea freight.
