SM SC / APC Simplex Fiber Optic Connectors Housing Set 0.2dB Low Insertion Loss with RoHS

  • SM SC / APC Simplex Fiber Optic Connectors Housing Set 0.2dB Low Insertion Loss with RoHS
  • SM SC / APC Simplex Fiber Optic Connectors Housing Set 0.2dB Low Insertion Loss with RoHS
  • SM SC / APC Simplex Fiber Optic Connectors Housing Set 0.2dB Low Insertion Loss with RoHS
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC/APC, SC/UPC, SC/PC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month
Product Details
Type SC/APC Color Green
Pull Strength 98N Mode Single Mode, Multi Mode, Mono Mode
Insertion Loss 0.2dB Return Loss 55dB
Highlight

optical fibre cable connectors

,

plastic optical fiber connectors
Leave a Message
Product Description

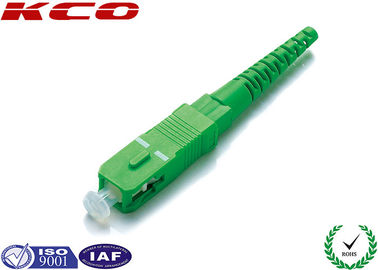

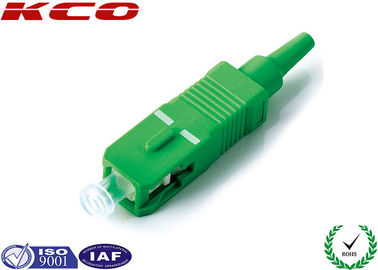

SM SC / APC Simplex Fiber Optic Connectors Housing Set
High-performance 0.2dB low insertion loss fiber optic connectors with RoHS compliance, designed for reliable telecommunications and networking applications.
Applications
  • Telecommunication Networks
  • Local Area Networks (LAN)
  • CATV Systems
  • FTTH Installations
  • Testing Equipment
Key Features
  • High-quality ceramic components and materials
  • End-face geometry compliant with Telcordia GR-326-CORE
  • 100% tested for optical performance (Insertion Loss & Return Loss)
  • Available in simplex, duplex, and higher core densities
  • Compatible with 900 micron, 2mm, and 3mm cable applications
Product Description
The SC connector features a non-optical disconnect design with a 2.5mm pre-radiused zirconia ferrule. Available in both simplex and duplex configurations, this connector utilizes a push-pull connection mechanism for quick patching of cables into rack or wall mounts. Includes reusable duplex holding clip for creating duplex connections.
Product Images
SM SC / APC Simplex Fiber Optic Connectors Housing Set 0.2dB Low Insertion Loss with RoHS 0 SM SC / APC Simplex Fiber Optic Connectors Housing Set 0.2dB Low Insertion Loss with RoHS 1 SM SC / APC Simplex Fiber Optic Connectors Housing Set 0.2dB Low Insertion Loss with RoHS 2
Technical Specifications
Component Material
Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Performance Specifications
Parameter Single Mode Multimode
Insertion Loss (Single Fiber) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB (PC/UPC)
≥60 dB (APC)		 N.A
Insertion Loss (MTRJ Connector) 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N
Ordering Information
  • Connector Type: SC, LC, FC, ST, MTRJ, etc.
  • Polish Type: UPC, PC, APC
  • Mode: Single mode, Multimode
  • Fiber Count: Simplex or Duplex
  • Connector Boot Diameter: 0.9mm, 2.0mm or 3.0mm
OEM/ODM Services
Custom branding available for cables, packaging, labels, and other components. Our OEM and ODM services are ready to accommodate your specific requirements.
Packaging & Shipping
Standard export packaging using carton boxes, wooden boxes, or wooden pallets. Available shipping methods include international express (UPS, TNT, DHL), international air freight, and sea freight.
