Ferrule Plug Fiber Optic Polishing Equipment For Connectors Boot Bonding

Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-boding
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 50,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-Bonding Ferrule 1.25mm, 2.5mm
Fiber Mode Single Mode, Multimode Pressure Max 200KGF
Running Speed Max 200RPM Connector SC, FC, LC, ST, E2000, MPO, ...
High Light

optical fiber polishing machine

,

fiber optic polishing machine

Leave a Message
Product Description

Ferrule Plug Fiber Optic Polishing Equipment For Connectors Boot Bonding



Features:

1. Used in the connector assembly and ceramic insert core metal tail pressure welding assembly, and other products

2. Use pneumatic acuity 0.5 Mpa, the biggest pressure for 200 KGF

3. By changing the pressure welding tooling, can adapt to different parts assembly and the press

4. The pressure is adjustable, adapt to different products

5. The operation is simple, reliable, high processing efficiency

6. Stable quality

7. Preventive maintenance, easy and convenient

8. Can provide the connector crimping mold, adapter and metal tail crimping mold

9. Can be made according to customer needs, different pressure welding tooling




Quick Detail:
- Surrunding Temperature: -40°C~85°C
- Relative Humidity: 15%~85%
- Vibration: 1.0g 5~100Hz 45min
- Acceptable impact: Fall from 50mm high

Description:
- 1.2.1 Running surroundings
- Temperature: 10°C~40°C
- Relative Humidity: 15%~85%
-Sound: Vacancy load≤50dB
- Vibration:
A) Running Status: 0.25g 5~100Hz 10min
B) Stop Status: 0.50g 5~100Hz 10min
- Power : 220~230VAC 50Hz/60Hz
- Voltage: 110W
Running speed: 20~220RPM
Specifications :

ItermGrinded materialSpecificationRemarks
1ZrO2 China mandril2.5mm, 2.0mm, 1.25mmCan be used for PC,APC assembly or unassembly
2Quartz capillary1.8mmCan be used for plan, bevel and sphere etc.
3Glass1.0mm~10.0mm
4Stainless steel, Titanium alloy3.0mm,2.5mm
5ColophonyMT-RJ,MPO and MPT etc

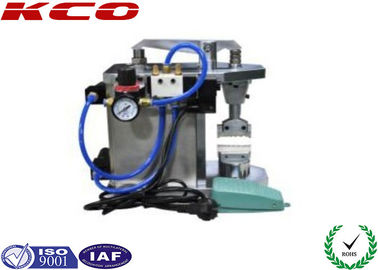

Product picture:
Ferrule Plug Fiber Optic Polishing Equipment For Connectors Boot Bonding 0

We also can supply full automatic fiber optic ferrule bonding machine.
Specifications:
1. Fiber optic and tail handle of the vibration plate automatic feeding.
2. The wheel pressure welding method.
3. The concentricity and vertical degree of pressure to ensure the plus or minus 0.02 mm.
4. Pressure welding speed is about 1500 / hour.
5. Pressure to yield 99.99%.
6. High pressure plus or minus 0.02 mm.
Ferrule Plug Fiber Optic Polishing Equipment For Connectors Boot Bonding 1
Package:
Ferrule Plug Fiber Optic Polishing Equipment For Connectors Boot Bonding 2

Fiber optic patch cable/ pigtail production machine/ tool list:

Work stage nameMachines/Tools
Ferrule bondingFerrule bonding by hand or automatic
Optic fiber CutOptic fiber cable Cutting machine
Fiber paresSable jacket stripper
Scissors
Fiber stripper
Glue ModulateMeasuring cup
Syringe
Separator
toothpick
Weigh Scale
Epoxy 353ND glue
CuringCable jacket stripper
Scissors
Fiber stripper
Curing oven
250um curing jig
125um curing jig
MTRJ curing jig
Dusty free paper
Alcohol bottle
Getting glue awayFiber reamer
50*50CM glass
50*50*cm rubber polishing pad
Sandpaper #1200
Sandpaper #1000
Spanner
Ferrule stand plate
Ferrule locator
PolishingHigh Frequency Cleaner
Polish machine
Polish oil
Polish film-9U
Polish film-3U
Polish film-1U
Polish film-0.05U
Rubber rubber polishing pad insert 75#
Rubber rubber polishing pad insert 55#
Hand polish disc-LC MU
Hand polish discST SC FC 250um
Watering can
Spanner
Polishing checkingMicroscope, Optical fiber end face detector
Dusty free paper
Alcohol bottle
AssemblyAssembling machine (connector boot bonding machine)
Plier
Cutting plier
Heat-treatment gun
Screw glue 262#
Instant adhesives 414#
Blade
TestPower metterInsertion Loss&Return Loss
alcohol bottle
Dusty free paper
FC Test adaptor
SC Test adaptor
LC Test adaptor
FC-SCTest adaptor
FC Test Master
SC Test Master
ST Test Master
LC Test Master
Packingmicroscope
Visual Fault Locator
Otherssingle sided glue
double sided glue
forceps
bump
ribbon
air compressor
Alcohol
tool box
