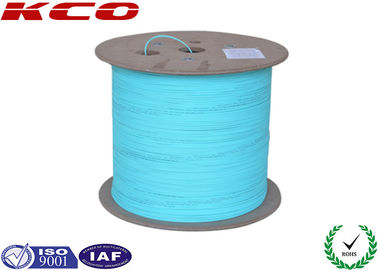

2-96cores Tight Buffer GJFJV Indoor Optical Fiber Cable OM3 OM4 Multifibers Distribution Cable
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | Indoor cable, OM3 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Product Details
| Material | LSHZ,PVC | Diameter | 0.9~3.0mm Or More |
|---|---|---|---|
| Name | Single-fiber Armored, OM3 | Length | 2km, 3km Each Roll |
| Cores | Simplex, Duplex, Multi-fibers | Model | Single-fiber Armored Indoor Cable |
| Highlight | optical fibre cable,indoor outdoor fiber optic cable |
||
Product Description
Product Overview
KOCENT OPTEC LIMITED supplies a comprehensive range of indoor fiber optic cables in single mode and multimode configurations, available in diameters of 0.6mm, 0.9mm, 1.6mm, 1.8mm, 2.4mm, 2.8mm, and 3.0mm. Cables are offered with PVC or LSZH (Low Smoke Zero Halogen) jackets, suitable for fiber optic patch cord and pigtail production.
We manufacture simplex, duplex, and multi-fiber cable assemblies to your specifications. OEM and ODM services are available — we can print your brand logo on the cable and packaging. Contact us by phone or email for further information.
Applications
- Indoor distribution networks
- Pigtails for communication equipment
- Suitable for communication equipment servicing
- Convenient installation and simple operation
Key Characteristics
- 0.6mm tight buffer fiber construction
- High-strength Kevlar yarn member for enhanced tensile performance
- Steel armored flexible tube increases the cable's twist resistance

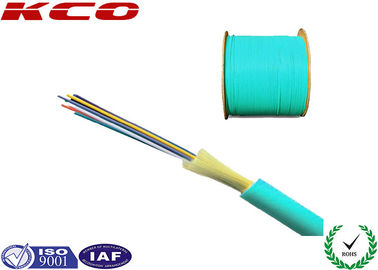

Cable Construction
Technical Parameters
| Out Sheath Diameter (mm) | Tight Buffer Diameter (mm) | Weight (kg) | Min. Tensile Strength — Short Term (N) | Min. Tensile Strength — Long Term (N) | Min. Crush Load — Short Term (N/100mm) | Min. Crush Load — Long Term (N/100mm) | Min. Bending Radius — Short Term (mm) | Min. Bending Radius — Long Term (mm) | Storage Temperature (°C) |
|---|---|---|---|---|---|---|---|---|---|
| 2.0 | 0.6 | 15.00 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20 to +60 |
| 2.4 | 0.6 | 16.00 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20 to +60 |
| 2.8 | 0.6 | 18.00 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20 to +60 |
| 3.0 | 0.6 | 18.00 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20 to +60 |
Optical Characteristics
| Fiber Sort | Type | Standard | Specification |
|---|---|---|---|
| Multimode | G.651 | A1a: 50/125 | Graded-index fiber |
| G.651 | A1b: 62.5/125 | Graded-index fiber | |
| Single Mode | G.652 (A, B, C) | B1.1: Conventional fiber | Standard single-mode fiber |
| G.652D | B2: Zero dispersion shifted | Low water peak fiber | |
| G.655 | B1.2: Cut-off wavelength shifted | Non-zero dispersion shifted fiber | |
| G.657 (A1, A2, B3) | B4: Positive dispersion shifted single-mode fiber | Bend-insensitive fiber |
Packing
OEM / ODM Service
We offer full OEM and ODM services. Display your own brand logo on the cable, packaging bag, label, or any other location. Our team is ready to accommodate your customization requirements.
Shipping
- International express: UPS, TNT, DHL, etc.
- International air freight: CA, AA, EA, etc.
- By sea
