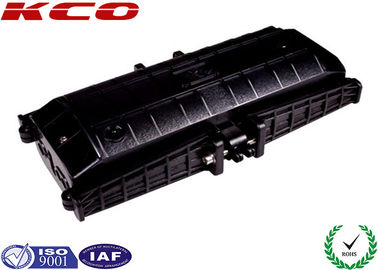

Horizontal Type Fiber Optic Splice Closure 6 Cable Ports 3 Inputs 3 Outputs

  • Horizontal Type Fiber Optic Splice Closure 6 Cable Ports 3 Inputs 3 Outputs
  • Horizontal Type Fiber Optic Splice Closure 6 Cable Ports 3 Inputs 3 Outputs
  • Horizontal Type Fiber Optic Splice Closure 6 Cable Ports 3 Inputs 3 Outputs
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number Inline 3-3-02-xFO
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T,L/C
Supply Ability 50,000pcs/week
Product Details
Type In-line Cable Diameter 8.0~22.0mm
Min. Capacity 6 Cores Max Capacity 96 Cores
Material ABS, PP, PC, PPR Weight 3.6KG
Size 410x200x120mm
Highlight

fiber optic joint closure

,

fibre optic splice closure
Leave a Message
Product Description
Horizontal type, in-line type fiber optic splice closure, 6 cable ports, 3 inports 3 outports
Quick detail about horizontal fiber optic splice closure:
Name:Horizontal fiber optic joint splice closure box
Part number:Inline 3-3-02
Cable entry port:6 ports
Cable input port:3 ports
Cable output port:3 ports
Capacity of fibers:Max. 96 cores
Size:340*200*120mm
Weight:about 3.6kg
Material:ABS/ PC Plastic
Sealing structure:Silica gel
Cable Diameter:7.0-22.0mm
Working temperature:-40℃ to 65℃
Features:
  • Great corrosion resistance
  • Anti-lighting
  • Great water-proof function.
  • Suitable for any harsh environment
Applications:
  • Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.
  • Widely used in FTTH access network
  • Telecommunication networks
  • CATV networks
  • Data communications networks
  • Local area networks

In-line 3-3-02 type fiber optic splice closure also call horizontal 3-3-02 type optical fiber splice enclosure box or optical fiber splice closure, or fiber splice enclosure box. We can provide Horizontal type fiber optic splice closure from 6 cores up to 288 cores for fiber optic cables connection use for aerial, underground, pipeline, hand-holes in Telecom project. The cable out-port can do 3 ports up to 10 ports. We also can supply vertical type of fiber optic splice enclosure box. Also, OEM Service is available, such as LOGO print, package, label, etc all can be customized.

Product pictures:

Horizontal Type Fiber Optic Splice Closure 6 Cable Ports 3 Inputs 3 Outputs 0

Horizontal Type Fiber Optic Splice Closure 6 Cable Ports 3 Inputs 3 Outputs 1

Main parts:
No.NameQuantityUsageRemark
1Crust1 setProtecting fiber cable splices in whole
2Fusion splice trayMax.4 trayFix fiber, Protect heat-shrinkable tube Sleeve
3Foundation1 setFix cable,reinforced core and tray
4Seal fitting1 setAir-proof between cover and bottom
5Port plug4 piecesSealing empty ports
6Valve1 setPressure measurement,inspection sealingConfigure by user
Accessories list:
No.Name of accessoriesQuantityUsageRemarks
1Heat shrinkable tubeProtecting fiber splicesConfiguration as per capacity
2Nylon tieFixing fiber with protective coatConfiguration as per capacity
3Insulation tape1 rollEnlarging diameter of fiber cable for easy fixing
4Seal tape1 rollEnlarging diameter of fiber cable which fits in with seal fittingConfiguration as per specification
5Hanging hook1 setFor aerial use
6Label tape1 pieceSign fiber
7Spanner1 pieceInstall bolts of shell
8Desiccant1 bagDesiccating air.

Horizontal Type Fiber Optic Splice Closure 6 Cable Ports 3 Inputs 3 Outputs 2

Package:

Horizontal Type Fiber Optic Splice Closure 6 Cable Ports 3 Inputs 3 Outputs 3

OEM service:

If you want to display your own brand LOGO on the fiber optic splice enclosure box or package carton box, it is no any problem. When you order quantity is more than 1000 pcs, we can print it FREE to you. Call us or send e-mail to us with your detail requirement!

Shipping:
  • By International express: TNT, DHL, UPS, special line express, etc
  • By air: CA, ZH, CZ, AA, AC, BA, etc
  • By sea
