CCTS SC FC APC 250um 8 Degree Fiber Optic Ferrule Ceramic Zirconia 1.0 Concentricity

  • CCTS SC FC APC 250um 8 Degree Fiber Optic Ferrule Ceramic Zirconia 1.0 Concentricity
  • CCTS SC FC APC 250um 8 Degree Fiber Optic Ferrule Ceramic Zirconia 1.0 Concentricity
  • CCTS SC FC APC 250um 8 Degree Fiber Optic Ferrule Ceramic Zirconia 1.0 Concentricity
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-250-APC-1.0
Minimum Order Quantity Negotiation
Price Negotiation

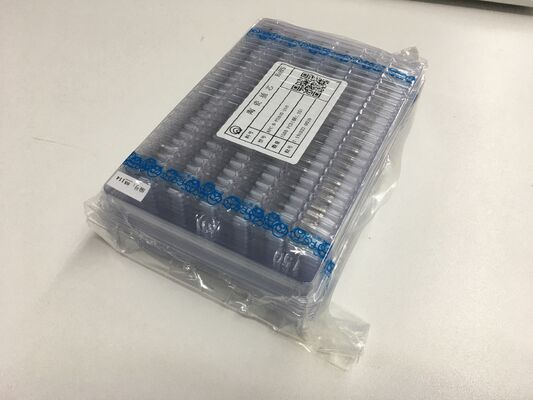

Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T,Western Union,L/C
Supply Ability 50,000 pcs/ month
Product Details
P/N KCO-250-APC-1.0 Ferrule 2.5mm
Fiber Mode Single Mode, Multimode Material Ceramic
Concentricity 1.0 Ferrule Numer 100 Ferrules
Highlight

optical fiber polishing machine

,

fiber optic polishing machine
Leave a Message
Product Description
CCTS SC FC APC 250um 8 Degree Fiber Optic Ferrule
Ceramic Zirconia with 1.0 Concentricity for precision optical connectivity
Product Overview
Fiber optic ceramic ferrules are critical components in optical connectors and fiber optic patch cords, delivering exceptional performance and reliability.
Key Features
  • Low insertion loss for optimal signal transmission
  • Strong interchangeability capability
  • UL94V-0 and ROHS compliant standards
  • High resistance to corrosion and environmental factors
  • Excellent concentricity and dimensional precision
  • High strength and durability with superior anti-aging performance
  • Wear-resistant construction for long service life
  • ISO9001 certified manufacturing
  • Customized specifications available
Technical Specifications
Quick Details
  • Name: Fiber Optic Ferrule
  • Mode: Singlemode, Multimode
  • Material: Ceramic/Zirconia, Metal
  • Ferrule End-face: APC
  • Type: Standard, 8 Degree Angle
  • Outer Diameter: φ2.5mm (FC/SC/ST)
  • With plug: Yes/None options available
Flange Options
SUS303, Brass, Gild (customizable)

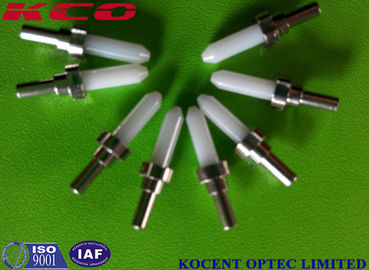

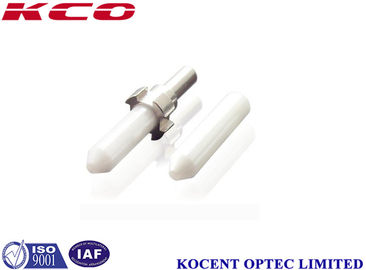

Product Image
CCTS SC FC APC 250um 8 Degree Fiber Optic Ferrule Ceramic Zirconia 1.0 Concentricity 0
Detailed Specifications
Dimensional Specifications
Type SC Type LC Type MU Type APC Type Customized
Outside Diameter (mm) Single Mode: 2.499±0.0005
Multi Mode: 2.499±0.002		 Single Mode: 1.249±0.0005
Multi Mode: 1.249±0.001		 1.249±0.0005 2.4990±0.0005 φd±0.0005
Inside Diameter (mm) Single Mode: d0+0.001
Multi Mode: d0+0.002		 d0+0.001 d0+0.001 d0+0.001 d0+0.001
Concentricity (μm) Single Mode: ≤1.0
Multi Mode: ≤4.0		 ≤1.0 ≤1.0 ≤1.0 user-defined
Length (mm) 10.5±0.05 6.40+0.1 6.5±0.05 10.5±0.05 L±0.05
Performance Parameters
Parameter Unit FC, LC, SC ST, MU MTRJ, MPO
Insertion loss (typical) dB SM: ≤0.3 (PC/UPC/APC)
MM: ≤0.2 (PC)		 SM: ≤0.3 (PC/UPC)
MM: ≤0.2 (PC)		 SM: ≤0.2 (PC/UPC)
MM: ≤0.2 (PC)
Return loss dB SM: ≥45/50/60
MM: ≥30		 SM: ≥45/50
MM: ≥30		 SM: ≥45/50
MM: ≥35
Operating wavelength nm 1310, 1510
Exchangeability dB ≤0.2
Vibration dB ≤0.2
Operating temperature °C -40 to +75
Storage temperature °C -45 to +85
Cable diameter mm Φ3.0, Φ2.0, Φ0.9
Applications
  • Fiber connector, pigtail, and patch cord assemblies
  • Data network communication systems
  • CATV, LAN & WAN infrastructure
  • Telecommunication networks
  • Military data network communication
  • Optical fiber access networks
  • Optical fiber CATV systems
  • Optical fiber test equipment
Order Information
Mode Type ID Flange
S: Single mode
M: Multi-mode		 C: (SC, FC, ST, E2000)/PC
L: LC/PC
D: DIN/PC
U: MU/PC
CA: (SC, FC, E2000)/APC
DA: DIN/APC
CAS: (SC, FC)/APC Step type		 5: 125um
6: 126um
7: 127um		 F: With flange
N: No flange
OEM/ODM Services
We specialize in manufacturing both standard and custom fiber optic ferrules according to your specific requirements. Using high-quality raw materials, we ensure each ferrule meets your most stringent performance standards. Contact us via phone or email to discuss your specifications and custom requirements.
