Payment & Shipping Terms:
|Type:||Inline Type||Cable Ports:||3 In 3 Out|
|Cable Diameter:||8.0~22.0mm||Min. Capacity:||2 Cores|
|Max Capacity:||48 Cores||Material:||PPR, ABS, PC, PP|
fiber optic splice enclosure,
fiber optic joint closure

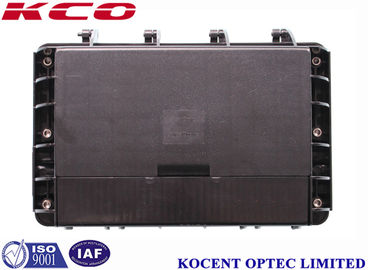

Aerial 1:8 Fiber Optic PLC Splitter Closure Junction Box Outdoor Water-proof Arial KCO-GJS08
- The KCO-GJS08 closure adopts horizontal mechanical sealing and advanced internal structure design.
- It can be installed one 1:8 Blockless PLC splitter.
- 2*3mm drop cable both ends in and out.
- The closure is spacious enough for winding and storing fibers.
- The patented sealing structure keep good sealing performance after re-entry and re-using.
- Easy open and close of closure with very little tool.
- 24cores Fusing Splice available (Max. 48cores)
- Suitable for bunchy fibers
- Aerial, wall-mounting
- It’s especially applicable to FTTH optical fiber distribution
|1||Crust||1 set||Protecting fiber cable splices in whole|
|2||Fusion splice tray||Max.4 tray||Fix fiber, Protect heat-shrinkable tube Sleeve|
|3||Foundation||1 set||Fix cable,reinforced core and tray|
|4||Seal fitting||1 set||Air-proof between cover and bottom|
|5||Port plug||4 pieces||Sealing empty ports|
|6||Valve||1 set||Pressure measurement,inspection sealing||Configure by user|
|No.||Name of accessories||Quantity||Usage||Remarks|
|1||Heat shrinkable tube||Protecting fiber splices||Configuration as per capacity|
|2||Nylon tie||Fixing fiber with protective coat||Configuration as per capacity|
|3||Insulation tape||1 roll||Enlarging diameter of fiber cable for easy fixing|
|4||Seal tape||1 roll||Enlarging diameter of fiber cable which fits in with seal fitting||Configuration as per specification|
|5||Hanging hook||1 set||For aerial use|
|6||Label tape||1 piece||Sign fiber|
|7||Spanner||1 piece||Install bolts of shell|
|8||Desiccant||1 bag||Desiccating air.|
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
