Plastic LC / APC Fiber Optical Adapter For Medical & Military

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number LC/APC-DX
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LC/APC Sleeves Material Ceramic (ZrO2)
Material Plastic Chanel Way Duplex
Color Green Repeat Ability 0.10dB
High Light

fibre optic adapter

,

fiber optic cable adapter

Leave a Message
Product Description

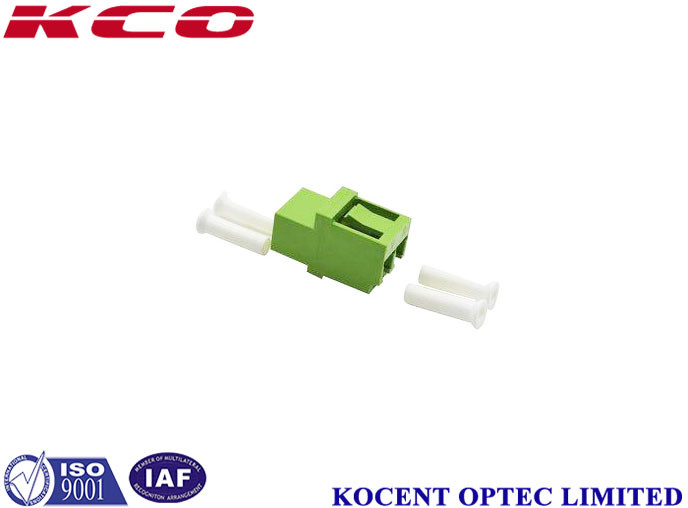

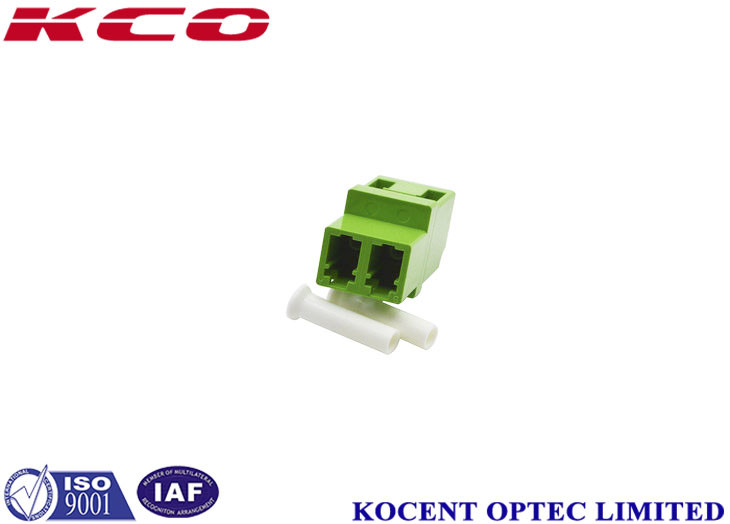

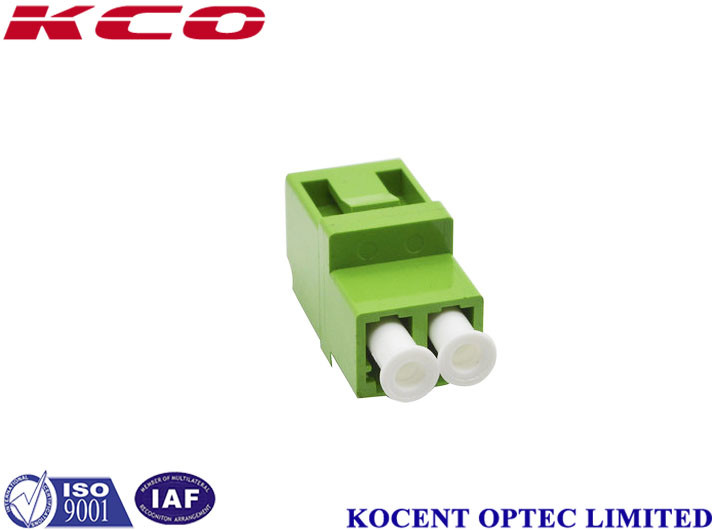

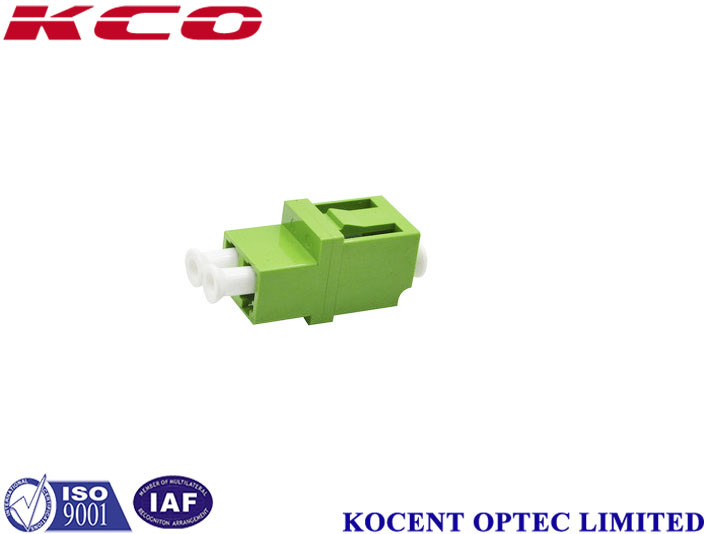

Green Fiber Optic Adapter LC/APC Without Flange, Without Dust Cap, Duplex





Descriptions:



Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC style fiber optic adapters for both multimode and single-mode fiber applications.



LC/APC fiber optic adapter is available in single mode UPC APC and multimode PC to sastify to connect single mode or multimode patch cable.



Applications:

1. Data Processing Networks

2. Telecommunication networks

3. Industrial, Medical & Military

4. LANS, MANS, WANS

5. Fiber to the home, FTTX



Advantage of the fiber optic adapters:



Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.



We provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.



These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.



Feature:

1. Compact Design

2. High Precision Alignment

3. Zirconia Sleeve ,Compact design

4. Low insertional loss, High return loss

5. Comply with IEC, Telcordia GR 326 and JIS standard





Specification of fiber optic adapters:

Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type of Connector Single Mode Multimode
Adapter Color Blue, green, metallic Beige, Metallic
Testing Wavelength 1310nm,1550nm 850nm,1300nm
Insert Loss Typical≤0.15dB, max≤0.2dB Typical≤0.15dB, max≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000Mating, max≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C~+70°C
Storage Temperature -40°C~+85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad .



Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
