|Material:||ABS, PC||Insertion Loss:||0.15dB|
|Return Loss:||55dB||Application:||Indoor End User Wall Socket|
|Fiber Port:||1* SC/UPC Simplex||Ethernet Port:||1* CATV Port|
optical termination box,
fibre termination box

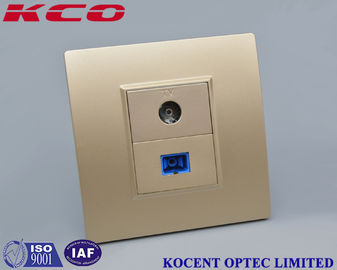

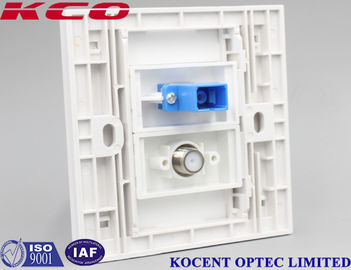

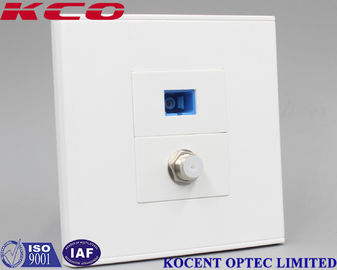

FTTH Flame Retardant Fiber Optic Distribution Box For Fiber CATV Networks Socket Face Plate
- The KCO-FOFP-SCUS-CATV FTTH Socket Panel has a compact plug-in design, combines a Integration, Multi-function, Modern design concept, adopts imported plastic,
- It is of a graceful appearance and applicable for FTTH, FTTO an FTTD, etc., and allows easy use in different installation environments
- KCO-FOFP-SCUS-CATV is used in the end termination of residential buildings and villas, to fix and splice with pigtails.
- It can be installed on wall, may adapt variety of optical connection styles, optical fiber can be managed effectively.
- Applicable for FTTH, FTTO an FTTD, etc., and allows easy use in different installation environments.
- Coordinating with FC strip-type optical adaptor, it generates more options in term of fiber interfaces for users, all SC and SC/FC are usable.
- The big-diametered wrapping post in the box protects radically in an omnibearing way..
- The clasp design of the cover has greatly reduced the installation strength.
- It is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables.
|Fiber ports||1 cores for SC, 2 cores for LC|
|Cable||indoor cable or FTTH cable|
|Cable diameter||Max. 3.0mm|
|CATV port||RF connector * 1pc|
- Sleeve - 2 pcs
- Wall mount screws - 2 sets
- Fiber optic adapter: SC/UPC 1pc
- RF connector: 1pc
- KCO-FOFP-SCUS-CATV with one port of SC/UPC simplex adapter, can change to LC/UPC duplex adapter. Easier to use.
- KCO-FOFP-SCUS-CATV with one port of RF connector for CATV
- PC material, side is clip design of the box, it is more stable and solid, longer life time.
- Small size, light weight, pleasant appearance.
- Buckle type design, installation firm not easy to loosen.
- Transparent structure is easy to understand without fear of error.
- Ultrathin design. The exposed part of the wall is only 7MM.
- Panel size: 86mmx86mm; Mounting hole distance: 60mm.
- Embedded surface frame, convenient for installation and disassembly.
- With protective door, dustproof.
- Easy identification with logo.
- Applicable to multi-class modules and multimedia interfaces.
- High quality PC plastic, anti-collision, flame retardant, anti-impact.
- Widely used in FTTH access network
- CATV networks
- Data communications networks
- Local area networks
- Telecommunication networks
- Temperature: -45°C~+85°C
- Relative humidity: ≤85%(+30°C)
- Atmospheric pressure: 70KPa~106KPa
- Nominal work wave-length: 850nm,1310nm,1550nm
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss: >=50dB(UPC), >=60dB(APC)
- Insulation resistance (between frame and protection grounding): >1000MΩ/500V(DC)
|Type||Indoor fiber optic face plate|
|Capacity||Max. 2 cores|
|Insert loss||≤ 0.2dB|
|Return loss||50dB (UPC), 60dB (APC)|
|Connector||SC, FC, LC, ST, etc|
