KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance

Good quality Fiber Optic Patch Cord for sales
Good quality Fiber Optic Patch Cord for sales
I'm Online Chat Now

KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance

China KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance supplier
KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance supplier KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance supplier KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance supplier KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance supplier KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance supplier

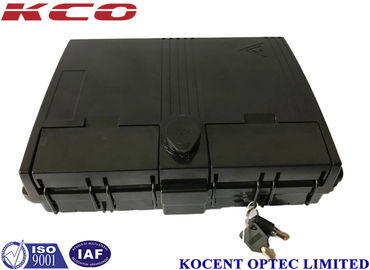

Large Image :  KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001
Model Number: KCO-ODP-16B

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton box, wooden pallet
Delivery Time: 7~14 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 pcs/ month
Contact Now
Detailed Product Description
Material: ABS+PC Insertion Loss: 0.15dB
Return Loss: 55dB Connector: SC, ST, LC, FC, E2000, Etc
Application: Outdoor Capacity: 16 Fibers Fo



KCO-ODP-16B Fibre Optical Splitter Terminal Distriution Junction Box 1*16

Water-proof Black White ABS+PC



KCO-ODP-16B splitter optical distribution terminal box provides a high density wall-mounted solution for next generation networks, which aims to provide and manage maximum numbers of fibers in a limited space. It is normally installed in the way of wall-mounted or pole-mounted.



Features



  • ABS+PC material used ensures the body strong and light.
  • Waterproof design for outdoor use.
  • Made of Grade A PC alloy material, working life more than 20 years.
  • Drop resistance, ability to work under vertical pressure of 500N.
  • Easy installations: Ready for wall mount installation kits provided.
  • Adapter slots used, no screws and tools needed for installing adapters.
  • Ready for splitters: designed space for adding splitters.
  • Double-layer design for easier installation and maintenances:
  • Lower layer for splitters and over length fiber storage.
  • Upper layer for splicing, cross-connecting and fiber distribution.
  • Cable fixing units provided for fixing the outdoor optical cable.
  • Accommodates both cable glands as well as tie-wraps
  • It is good for storage of fixing cable achieves.
  • It is applicable for (indoor and outdoor) (pole-mounted, wall-mounted).
  • The splicing part is convenient for protection and maintenance engineering.
  • Adapter baseboard and optical installation box baseboard uses a rotary design.
  • Cable, pigtails, patch cord are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.



Specification:

Item
KCO-ODP-16B
Cladding diameter(μm)
125.0±1
Product Type
16 core distribution box
Adaptor type
SC/LC/FC/ST/E2000
Protection Class
IP67
Wavelength
1260-1650nm
Shock-resistance
750N
Card Splitter Type
1x16 / 2x16
Type
Waterproof outdoor
Application
FTTH FTTB FTTX
Box Material
PC/SMC/ABS
Operating temperature
-40℃ ~ +60℃
Size 218*292*83mm Weight:  1.5kg

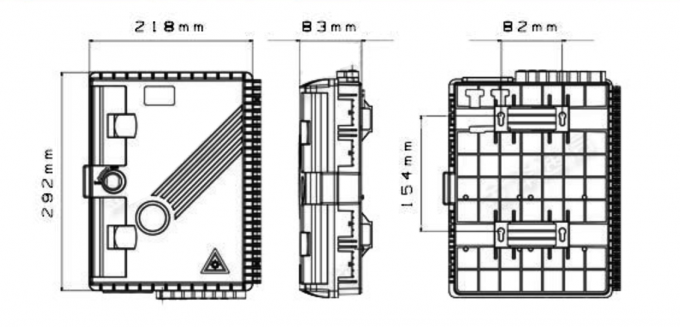

Dimensions:


KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance

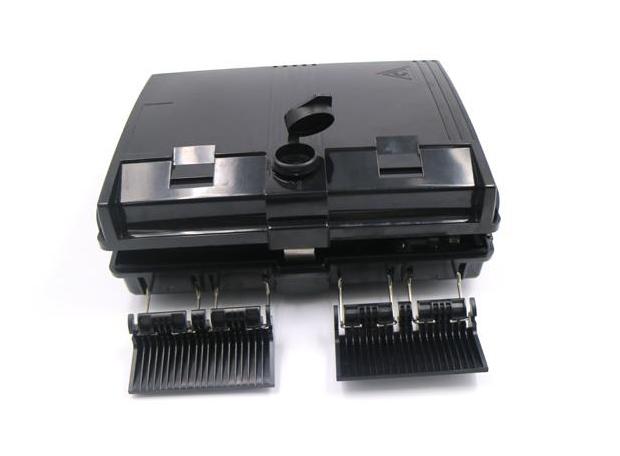

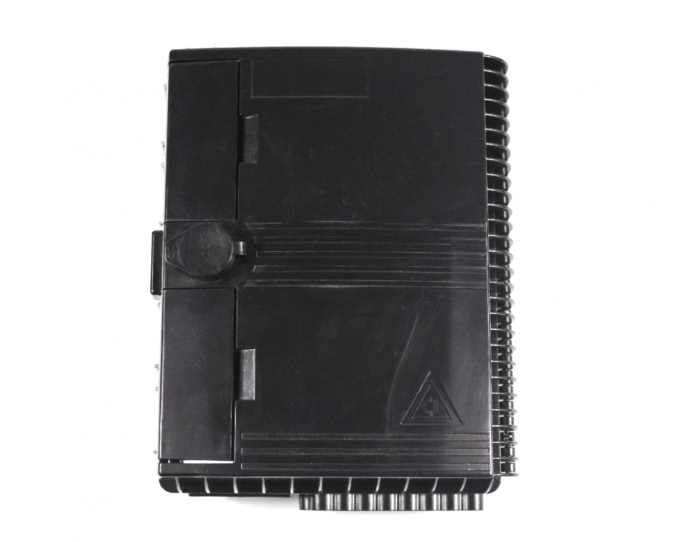

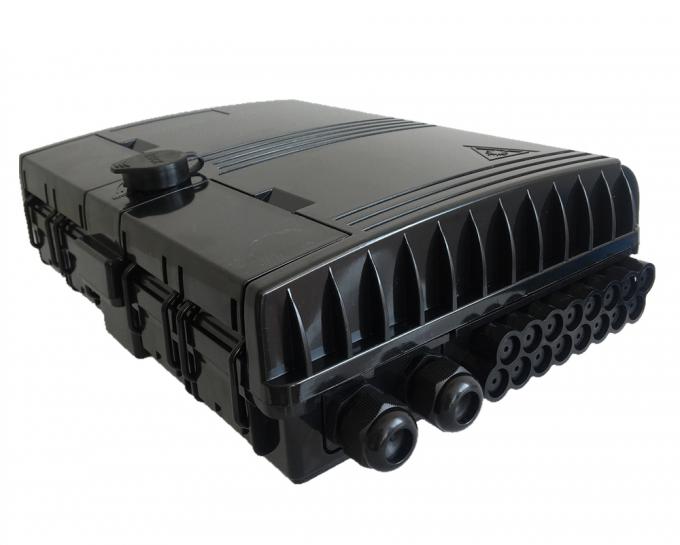

Product photos:

KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance





KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance

KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance

KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance

KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance

Applications:

  • FTTX Systems
  • Telecommunication Networks
  • PON Networks
  • Data communications Networks
  • Fiber Optic Termination
  • Local Area Networks
  • CATV

Specification:

  • Wall Mounted termination box for indoor/outdoor use
  • Up to 1 Fiber capacity SC Simplex
  • Available for SC Simplex Adaptors
  • Available install 1x4, 1x8, 1X16, 2x4, 2x8, 2x16 Mini type PLC Splitters as required

Operation conditions:

  • Temperatures:-40℃ -- 60℃
  • Humidity:93% at 40℃
  • Air Pressure:62kPa – 101kPa



Packing Information



Model N.W (kg/pcs) Dimension of outer carton (mm) G.W of outer Carton (kg/carton) No of Products (pcs/carton)
KCO-ODP-16B 2 550*360*620 18 10




Package includes:

- Terminal box, 1 unit

- Keys for lock, 2 keys

- Wall mount installation accessories, 1 set
