Fiber Optic Cable Adapter / Fiber Optic Adaptor Accurate External Size
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | DIN-FC-SM-DX |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Plastic module, carton box, wooden pallet |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 500,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | DIN-FC | Material | Metalic |
|---|---|---|---|
| Chanel Way | Duplex, Hybrid | Insertion Loss | 0.2dB |
| Return Loss | 55dB | Fiber Mode | Singlemode, Mono Mode, Multimode |
| High Light | fibre optic adapter,fiber optic cable adapter |
||
Product Description
DIN-FC Fiber Optic Hybrid Metallic Adapter Through Connection Adapter FC To DIN Duplex
Quick Information:
- Name: DIN/UPC To FC/UPC Hybrid Through Connection Single Mode Duplex Fiber Optic Adapter
- Fiber type: Single mode (SM) 9/125
- Signal way: duplex (2 ways)
- Material: metallic
- IL: less than 0.2dB
- RL: More than 50dB
- P/N: KCO-DIN-FC-SM-DX
Descriptions:
- Fiber Optical Adapter are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.
- DIN fiber optic adapters which come with zirconia sleeves and threaded size.
- They are available in both single mode type and multimode types.
- DIN 47256 (LSA) feature a single unit body with spring-loaded free floating zirconia ferrule.
- This unique connector offers superior performance in a compact DIN47256 compatible design suitable for various applications.
- The DIN adapters are consistent performance and durability.
Features:
- Excellent changeability and directivity
- 100% Optic test (Insertion Loss)
- Ceramic and phosphor bronze sleeve tube optional
- Accurate external size
- Individually packaged
- Ceramic and phosphor bronze sleeve tube optional
- Accurate external size
- Individually packaged
Applications:
- Testing instruments
- Connection between devices
- Connection between fiber optic patch cords
- CATV, MANS, WANS
- FTTX, FTTH

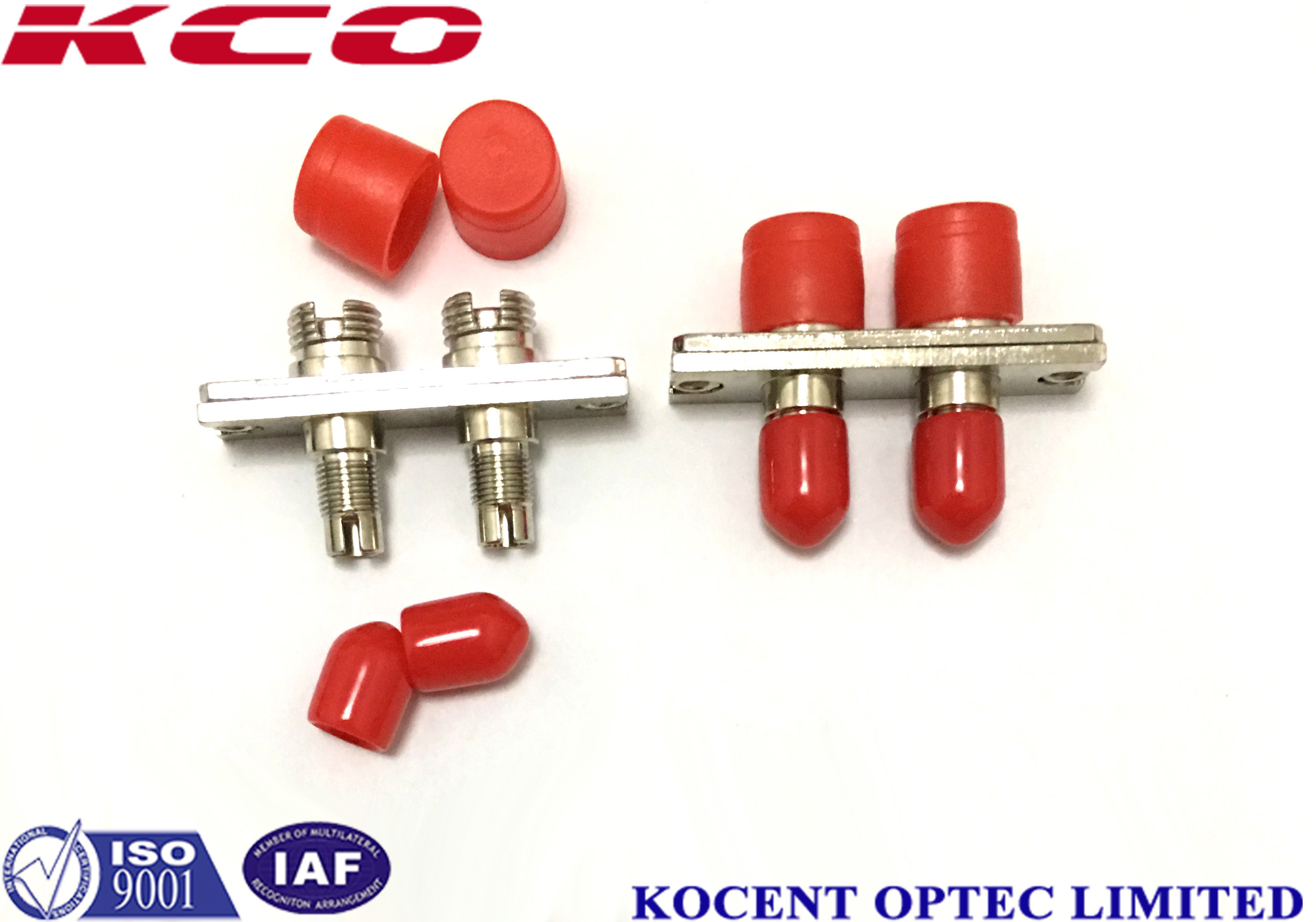

Product pictures:
Specification:
| Characteristics | Unit | Single Mode | Multimode |
| Insertion Loss (IL) | dB | <0.3 | |
| Exchangeability | dB | ∆IL<0.2 | |
| Repeatability (500 times) | dB | ∆IL<0.2 | |
| Sleeve material | - | Zirconia | Phosphor bronze |
| Housing material | - | Nickel plated Copper | |
| Operating Temperature | °C | -40 ~ +70 | |
| Storage Temperature | °C | -40 ~ +70 | |
Reliability testing:
| Item | Test Name | Additional Insertion Loss | Additional Return Loss |
| 1 | Mechanical durability | <0.2dB | <5dB |
| 2 | Repeatability | <0.2dB | <5dB |
| 3 | Lock strength | <0.2dB | <5dB |
| 4 | Low strength | <0.2dB | <5dB |
| 5 | High temperature | <0.2dB | <5dB |
| 6 | Steaming | <0.2dB | <5dB |
| 7 | Temperature cycle | <0.2dB | <5dB |
| 8 | Vibration | <0.2dB | <5dB |
| 9 | Drop | <0.2dB | <5dB |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
