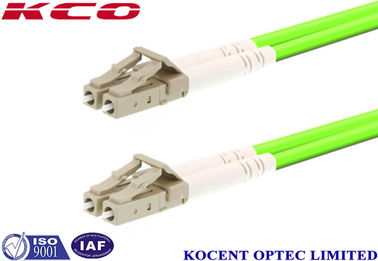

Large Image :  LC-LC Duplex Multimode Fiber Optic Patch Cord 0.35dB Insertion Loss With Different Length

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO
Certification: RoHS, ISO9001
Model Number: LC Duplex

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PE bag, carton box, wooden pallet
Delivery Time: 2~7 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
Connector 1: LC Connector 2: LC, SC, FC, ST
Fiber: 2 Fiber Insertion Loss: 0.35dB
Return Loss: 60dB Fiber Type: Multimode OM5
Color: Lime Green Cover: PVC, LSZH

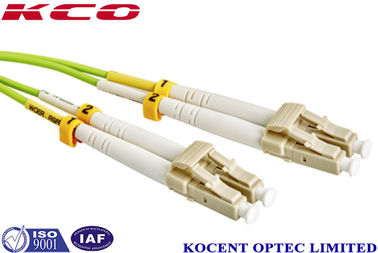

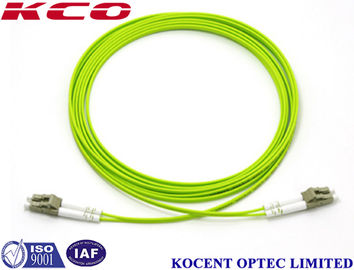

LC-LC Duplex Multimode OM5 Lime Green Fiber Optic Patch Cord 10m 20m 30M



Description:

OM5 wideband multimode fiber is optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s(up to 400m) and 100 Gb/s(up to 150m) and reduced fiber counts for higher speeds.

OM5 Fiber cable assembly:
- OM5 multimode 50/25 fiber cable assemblies, including LC, SC, ST, FC, E-2000, MPO, MTP connectors, from simplex, duplex to multi core break out cables.
Custom made OM5 cables with different length, cable jacket, connector types.
OM5 50/125 multimode fiber cables are designed for used in high efficiency data centers and interconnected buildings.
- The OM5 multi-mode fiber specifications follows the TIA-492AAAE in the ISO/IEC 11801 Edition 3 and the American National Standards Institute cabling standard ANSI/TIA-568.3-D as well as IEC 60793-2-10 edition 6.
- OM5 multimode fiber cable is fully compatible to previous multimode standards OM3 and OM4 yet the OM5 can achieve much higher speed with less fiber cores.
- OM5 uses the color Lime Green

LC-LC Duplex Multimode Fiber Optic Patch Cord 0.35dB Insertion Loss With Different Length

Applications include

- ISP or Broadband network

- Data center Network

- Data-com Network
LC-LC Duplex Multimode Fiber Optic Patch Cord 0.35dB Insertion Loss With Different Length



LC-LC Duplex Multimode Fiber Optic Patch Cord 0.35dB Insertion Loss With Different Length

Parameter
Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.2dB
Return Loss ≥50dB ≥60dB ≥35dB
Test Wavelength 1310/1550nm 850/1310nm
Durability(500 Matings) ≤0.2dB
Operating Temperature -20℃~+70℃
Storage Temperature -40℃~+85℃
Fire Resistant IEC 60794-2-30
Standards-Compliant ROHS,IEC and GR-326
Specification
Fiber type Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,G657A2,G657B2,G657B3
Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)50/125-OM4
Fiber brand YOFC, Corning, OFS...
Connector type SC, LC, FC, ST, E2000, MU, MTRJ, MPO/MTP, SMA, DIN
Cord type Simplex, Duplex, 4cores, 6cores, 12cores, 24cores...
Cable diameter 0.9mm, 2.0mm, 3.0mm....
Cable jacket PVC, LSZH, OFNR, OFNP
Length(M) 0.3m,1m,2m,5m,10m,25m,50m,100m



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

LC-LC Duplex Multimode Fiber Optic Patch Cord 0.35dB Insertion Loss With Different Length



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea

LC-LC Duplex Multimode Fiber Optic Patch Cord 0.35dB Insertion Loss With Different Length
