Low Insertion Loss Fiber Optic Adapter Green LC/APC Shutter Duplex PC Material

  • Low Insertion Loss Fiber Optic Adapter Green LC/APC Shutter Duplex PC Material
  • Low Insertion Loss Fiber Optic Adapter Green LC/APC Shutter Duplex PC Material
  • Low Insertion Loss Fiber Optic Adapter Green LC/APC Shutter Duplex PC Material
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number LC/APC-DX-Shutter-NF
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LC/APC Material Plastic
Chanel Way Duplex, 2 Cores Insertion Loss 0.2dB
Return Loss 55dB Fiber Mode Singlemode, Monomode
Highlight

fibre optic adapter

,

fiber optic cable adapter
Leave a Message
Product Description

Green LC/APC Shutter Duplex Adapter Single Mode Optical Fiber Adapter PC Material None Flange


Quick Information:
- Name: LC/APC Duplex Shutter Adapter without flange
- Fiber type: Single mode (SM) 9/125
- Signal way: duplex (2 ways)
- Material: Plastic
- IL: less than 0.2dB
- RL: More than 50dB
- P/N: LC/APC-DX-Shutter-NF



Feature
- Great repeatability and interchangeability.
- Low insertion loss.
- Hign reliability.
- Compliant with IEC and Rohs standards.

Applications
- Test equipment.
- Connection of optical links in optical active devices
- Jumper connection
- Production and testing of optical devices
- Optical fiber communication system,CATV
- LANs and WANs
- FTTx



Specification:

Parameter Single-mode Multi-mode
Adapter color Blue, Green Beige
Test wavelength 1310nm, 1550nm 850nm, 1300nm
Insertion Loss Typical≤0.15dB, Max≤0.20dB Typical≤0.15dB, Max≤0.20dB
Repeatability ≤0.10dB
Interchangeability ≤0.20dB
Durability ≤0.20dB Max change, 500 mating
Channels Simplex, Duplex, 4channels
Material Plastic or metallic
Sleeve material Ceramic (ZrO2)
Operating Temperature -20ºC to +70ºC
Storage Temperature -40ºC to +85ºC

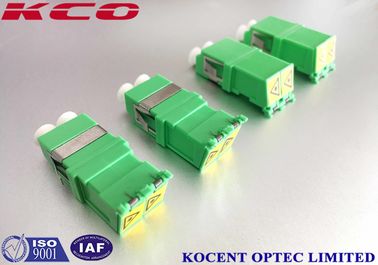

Product pictures:
Low Insertion Loss Fiber Optic Adapter Green LC/APC Shutter Duplex PC Material 0



Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Low Insertion Loss Fiber Optic Adapter Green LC/APC Shutter Duplex PC Material 1

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
Low Insertion Loss Fiber Optic Adapter Green LC/APC Shutter Duplex PC Material 2
