ODF Distribution Fiber Optic Termination Box OM4 OM5 1U 24 Port Rotating Splice Rackmount Patch Panel

  • ODF Distribution Fiber Optic Termination Box OM4 OM5 1U 24 Port Rotating Splice Rackmount Patch Panel
  • ODF Distribution Fiber Optic Termination Box OM4 OM5 1U 24 Port Rotating Splice Rackmount Patch Panel
  • ODF Distribution Fiber Optic Termination Box OM4 OM5 1U 24 Port Rotating Splice Rackmount Patch Panel
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-RotateT-1U
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape/ Aluminum Alloy High 3U
Splitter Type Mini Tube Type Split Way 2 Way Input & 16 Way Output
Connector LC/APC. SC/APC Cable 0.9mm
High Light

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description

1U 24port Rotating Splice Rackmount Patch Panel ODF Distribution Termination Box​



Description:

- Kocent Optec Limited with more than 10 years of experience in OEM and ODM fiber optic patch panel, we are welcome to customer's request.

If you have your own design of fiber optic patch panel or wall mount terminal box and fiber optic cabinet, please contact with our sales team to get best support.

- Fiber Optic Splicing Patching Rotate Shelves 48 Port Rack Mounted Rotation ODF Optical Fiber Splice Patch Panel is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network.

- It is available for the distribution and terminal connection of various kinds of optical fiber system.

- These units are available in sizes that fit the most common distribution requirements.

- The box can make by steel tape with thickness 0.8mm, 1.0mm and 1.2mm. Or also can make by Aluminium Alloy material.

- Paint color can choose grey, white or black or as your request.

- OEM service is open for all of old and new customer.

- Logo printing is free for all of order with quantity more than 100pcs.



Distribution box full accessories:

ODF Distribution Fiber Optic Termination Box OM4 OM5 1U 24 Port Rotating Splice Rackmount Patch Panel 0



Specifications:

Product Name 1U rotating fiber optic distribution splice termination patch panel
Module Type Rotate Type
Fiber Capacity 12-144 core
Cable Type SM MM OM3 OM4
Panel Connector SC LC ST FC
Dimension 435*300*1Umm
Material Cold Rolled Steel/ Aluminium Alloy
Color Black, White, Grey, Customized
Work Temperature -40℃~+85℃
Thickness 0.8mm, 1.0mm, 1.2mm
High 1U, 2U, 3U, 4U
Cable port 2 ports/ 4 ports/ 6 ports or customized
Connector port SC simplex, ST simplex, FC simplex, SC duplex, LC quad
Pigtail SC, LC, FC, ST, E2000, customized
Splitter 1*2, 1*4, 1*8, 1*16, 1*32, 1*64, 1*128
MOQ 1pc



Characteristics:

- Easy to install.
- Improved design for storage
- Cold-roll steel or aluminium alloy, electrostatic painting.
- ABS plastic tray inside. 24cores per tray.
- Different adapter plate available:FC,SC,ST,LC.
- Rotate out drawer for easy cable management.
- Cable entry ports suitable for singe fiber,bundle and ribbon fiber cables
- White, black ,grey color painting optical
- 12core, 24core, 48core, 96core capacity customized.



Product picture:

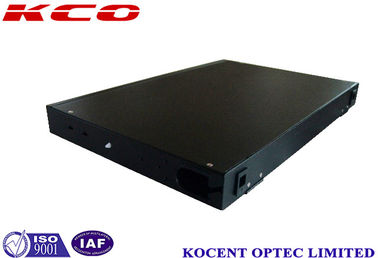

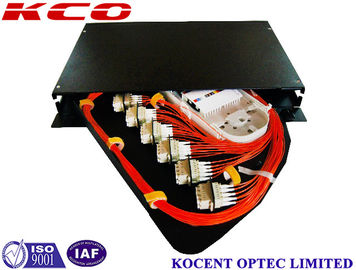

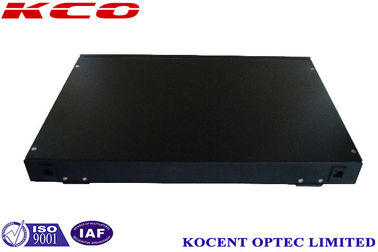

ODF Distribution Fiber Optic Termination Box OM4 OM5 1U 24 Port Rotating Splice Rackmount Patch Panel 1







ODF Distribution Fiber Optic Termination Box OM4 OM5 1U 24 Port Rotating Splice Rackmount Patch Panel 2



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
48 Port LC OM4 Fiber Optic Rack Mount Patch Panel Slide Type 1U Metalic Black



Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

48 Port LC OM4 Fiber Optic Rack Mount Patch Panel Slide Type 1U Metalic Black


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

48 Port LC OM4 Fiber Optic Rack Mount Patch Panel Slide Type 1U Metalic Black
