8 Port Fiber Optic Terminal Box KCO-FBD-08C ABS Black 1*8 Opitcal Splitter SC/UPC

China 8 Port Fiber Optic Terminal Box KCO-FBD-08C ABS Black 1*8 Opitcal Splitter SC/UPC supplier
8 Port Fiber Optic Terminal Box KCO-FBD-08C ABS Black 1*8 Opitcal Splitter SC/UPC supplier 8 Port Fiber Optic Terminal Box KCO-FBD-08C ABS Black 1*8 Opitcal Splitter SC/UPC supplier

Large Image :  8 Port Fiber Optic Terminal Box KCO-FBD-08C ABS Black 1*8 Opitcal Splitter SC/UPC

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001
Model Number: KCO-FBD-08C

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton box, wooden pallet
Delivery Time: 7~14 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 pcs/ month
Contact Now
Detailed Product Description
Material: ABS, ABS+PC P/N: KCO-FBD-08C
Color: Black Connector: SC, ST, LC, FC, E2000, Etc
Application: Outdoor IP65 Capacity: 8 Ports SC Simplex Or 8 Ports LC Suplex

KCO-FBD-08C Fiber Optic Termination Box 8port ABS Black 1*8 Opitcal Splitter SC/UPC



Descriptions:
- KCO-FBD-08C outdoor wall mount and pole mounted fiber optic terminal box for FTTH drop cable entry or exist, it is available for grey, white and black color.

- Fiber optic terminal box KCO-FBD-08C is a box for fiber terminal distribution in optical fiber transmission and communication network. It can be 12 fibers splicing, protection and distribution.

KCO-FBD-08C can be distribution box with 12 ports adapter plate or can be splitter box with LGX splitter plate. LGX splitter plate can install 1*2, 1*4 and 1*8 LGX box type of PLC splitter.

- It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

- It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

- The optical distribution box is a solution that facilitates the installation of optical termination in branch networks for FTTH environments.


Features:

- Material: ABS or ABS+PC plastic.

- Long life time: about 20 years

- Can accommodate 1x4, 1x6, 1x8, 1x12 PLC splitter.

- Rainfall resistant, IP65 outdoor using.

- Can load 12pcs LC, FC, ST, SC, E2000 … adapters.

- Wall mounting and pole mounting application.

- The cover with 2 reinforcing closing pieces, easy to open and close.

- 02pcs cable entry ports (max. diameter 8mm cable) for cable entry without cutting;

- 02pcs cable entry ports M20 PG cable gland (max. Cable diameter 12mm);

- 08pcs exit ports for FTTH drop cable.



Products photos:

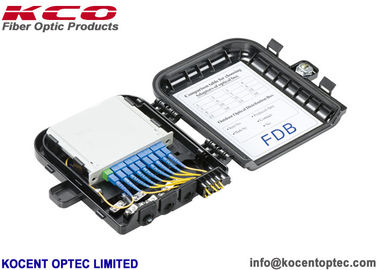

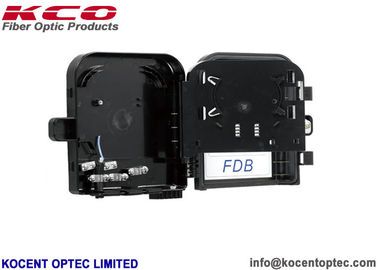

8 Port Fiber Optic Terminal Box KCO-FBD-08C ABS Black 1*8 Opitcal Splitter SC/UPC



Specifications:

Model KCO-FBD-08C
Material PC+ABS or ABS
Dimension 240*200*50mm
Cable Entry 2 cable entrance: 10-16.5mm
Drop cable port 08 ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
Max. Capacity 12 Fibers, 1 tray x 12F
Adapter Max. 12pcs SC simplex (LC, FC, MT optional)
Sealing structure Mechanical sealing with PE waterproof sealing ring
PLC Splitter Max. micro plug-in 1x12 Splitter
Color Gray White or Black
IP Grade IP55
Operating Temperature -40°C~+80°C
Relative Humidity <95%(+40°C)
Insulated Resistance >2x10MΩ/500V(DC)
Installation Method
(in overstriking)
Floor Standing / Wall Mounted / Pole Mounted /
Corridor Mounted / Mounted in Cabinet


Dimension:

Model
Capacity
Dimension (LxWxH)
Weight
KCO-FBD-08C
1*8 PLC splitter, 08 SC adaptors
240*200*50MM
0.8kg
Packing 1pc/box 250*200*58MM



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
