Wall Mounted Socket FTTH Optical Fiber Distribution Box KCO-FTB-08W Waterproof Sealing

China KOCENT OPTEC LIMITED certifications
China KOCENT OPTEC LIMITED certifications
I'm Online Chat Now

Wall Mounted Socket FTTH Optical Fiber Distribution Box KCO-FTB-08W Waterproof Sealing

China Wall Mounted Socket FTTH Optical Fiber Distribution Box KCO-FTB-08W Waterproof Sealing supplier
Wall Mounted Socket FTTH Optical Fiber Distribution Box KCO-FTB-08W Waterproof Sealing supplier Wall Mounted Socket FTTH Optical Fiber Distribution Box KCO-FTB-08W Waterproof Sealing supplier Wall Mounted Socket FTTH Optical Fiber Distribution Box KCO-FTB-08W Waterproof Sealing supplier

Large Image :  Wall Mounted Socket FTTH Optical Fiber Distribution Box KCO-FTB-08W Waterproof Sealing

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001
Model Number: KCO-FTB-08W

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton box, wooden pallet
Delivery Time: 7~14 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 pcs/ month
Contact Now
Detailed Product Description
Material: ABS, ABS+PC P/N: KCO-FTB-08W
Color: White, Grey Connector: SC, ST, LC, FC, E2000, Etc
Application: Indoor IP55 Capacity: 8 Ports SC/FC/ST/E2000 Simplex Or 8 Ports LC Suplex
High Light:

optical termination box

,

fibre termination box

KCO-FTB-08W Indoor Fiber Optical Termination Box Wall-mount Socket FTTH ABS White



Descriptions:
- KCO-FTB-08W fiber optic termination box is design for indoor application with 8 port adapter, can install SC simplex, FC simplex, ST simplex, E2000 simplex or LC suplex adapter.

KCO-FTB-08W fiber optic termination box can install indoor wall mount or be a desktop socket box.

- Fiber optic terminal box KCO-FTB-08W is a box for fiber terminal distribution in optical fiber transmission and communication network. It can be 08 fibers splicing, protection and distribution.

- It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

- It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

- The optical distribution box is a solution that facilitates the installation of optical termination in branch networks for FTTH environments.


Features:

- Material: ABS or ABS+PC plastic.

- Long life time

- Can load 08pcs LC, FC, ST, SC, E2000 … adapters.

- Wall mounting application.

- The cover with 2 reinforcing closing pieces, easy to open and close.

- 08 ports of adapter holder.



Products photos:

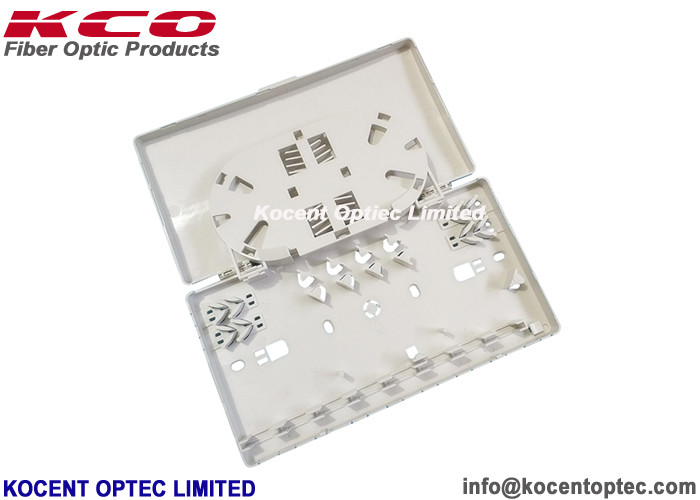

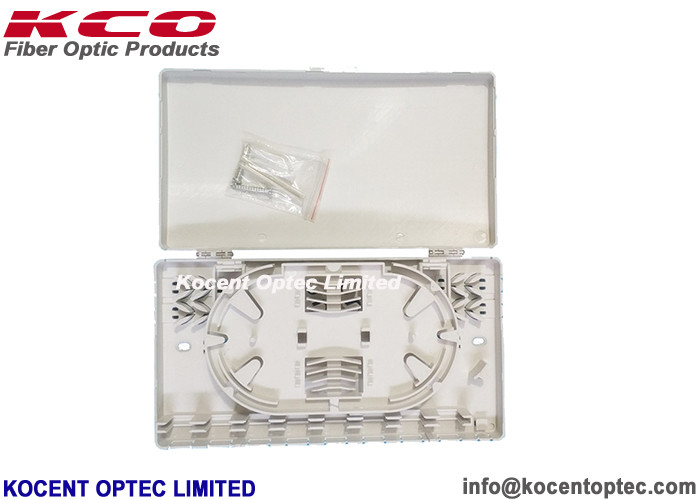

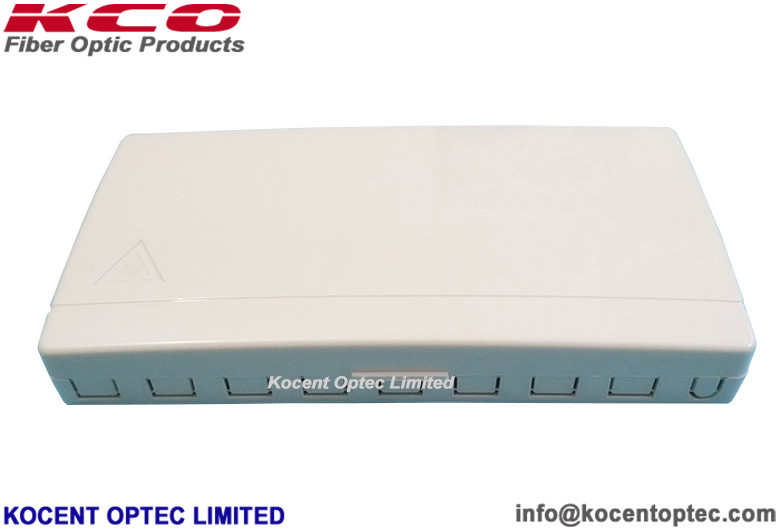

Wall Mounted Socket FTTH Optical Fiber Distribution Box KCO-FTB-08W Waterproof Sealing 0



Wall Mounted Socket FTTH Optical Fiber Distribution Box KCO-FTB-08W Waterproof Sealing 1

Specifications:

Model KCO-FTB-08W
Material PC+ABS or ABS
Dimension 210*110*30mm
Cable Entry 2 cable entrance: 10-16.5mm
Drop cable port 08 ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
Max. Capacity 8 Fibers, 1 tray x 8F
Adapter Max. 8pcs SC simplex (LC, FC, MT optional)
Sealing structure Mechanical sealing with PE waterproof sealing ring
PLC Splitter Max. micro plug-in 1x12 Splitter
Color Gray White or Black
IP Grade IP55
Operating Temperature -40°C~+80°C
Relative Humidity <95%(+40°C)
Insulated Resistance >2x10MΩ/500V(DC)
Installation Method
(in overstriking)
Floor Standing / Wall Mounted / Pole Mounted /
Corridor Mounted / Mounted in Cabinet


Dimension:

Model
Capacity
Dimension (LxWxH)
Weight
KCO-FTB-08W
1*8 PLC splitter, 08 SC adaptors
280*110*30MM
0.3kg
Packing 1pc/box 3000*120*40MM



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

FTTH 24 Port Fiber Optic Terminal Box  KCO-FDB-24G Outdoor Water Proof ABS PC Material


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
