SC CPRI Outdoor Fiber Optical Patch Cord Amored / Non Armored FTTA TPU LSZH Black Color

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SCU-CPRI-2fo-7.0mm/2.0-LSZH-xm
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 SC/UPC, SC/APC, SC MM Connector 2 FC, LC, SC, ST, E2000, ...
Core 2 Cores Insertion Loss 0.2dB
Return Loss 55dB Cable Cover Material LSZH, TPU
High Light

fiber optic pigtail cables

,

patch cord pigtail

Leave a Message
Product Description

SC CPRI Outdoor Fiber Optical Patch Cord Amored

Non-armored Field Army FTTA TPU LSZH Black


CPRI fiber patch cable for the new generation wireless base stations (WCDMA/TD-SCDMA/WiMax/GSM). Such products can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions. Especially in the 3G, 4G, 5G and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cable are rapidly becoming the standard connector interface.

KOCENT OPTEC LIMITED provides OEM and ODM service for all types of fiber optic patch cord.
Special in army field outdoor field operations fiber optic patch cord such as ODVA patch cord, NSN patch cord, PDLC patch cord, DLC patch cord, ODC patch cord, RRU patch cord, TPU patch cord, CPRI patch cord, Optitap patch cord, Mini SC patch cord, and OM3, OM4 patch cord.
We supply all kinds of field operations fiber optic patch cord with different types of water-proof connector, use for Telecom 3G, 4G, 5G, LTE, BBU, RRU, RRH base station.
With completed of production equipment and closed of QC process, we supply Telecom standard of goods to our customer.


Parameter:

Type SM-UPC SM-APC MM-UPC
Typical MAX Typical MAX Typical MAX
Insertion loss ≤0.1 ≤0.3dB ≤0.15 ≤0.3dB ≤0.05 ≤0.3dB
Return loss ≥50dB ≥60dB ≥30dB
Durability 500 mating cycles
Working temperature -40 to + 85


Quick Informations:
- Connector End 1: SC
- Connector End 2:
SC,
Optional: LC, FC, SC, ST, E2000, ....
- Cable:
Armored,
Optional: non-armored
- Cover:
LSZH,
Optional: TPU, PE
- Outer Diamerter:
7.0mm,
Optional: 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm
- Inner Diameter:
2.0mm,
Optional: 0.9mm, 0.6mm
- Fanout part:
2.8mm armored,
Optional: 3.0mm non-armored, 2.0mm non-armored
- Color: Black
- Length: 5m, 10m, 20m, 30m , 40m, 50m, 60m, 70m, 80m, 90m, 100m, 150m, 200m, 300m, 500m, ...


CPRI Patch Cord Constructions:
SC CPRI Outdoor Fiber Optical Patch Cord Amored / Non Armored FTTA TPU LSZH Black Color 0

Features:
- Easily add/install jumper cables for a future expansion
- Factory-assembled cables for a fast on-site installation
- IP67 water and dust protection
- Flexibility with small bending radius and excellent cable routing properties
- Equipped with customer specific power and fiber-optic connectors



7.0mm Non-armored Field Cable Construction:

SC CPRI Outdoor Fiber Optical Patch Cord Amored / Non Armored FTTA TPU LSZH Black Color 1


7.0mm Armored Field Cable Construction:
SC CPRI Outdoor Fiber Optical Patch Cord Amored / Non Armored FTTA TPU LSZH Black Color 2
Application:
1- Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.

2- Automation and industrial cabling
provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.


3- Surveillance systems
Security camera manufacturers choose ODC connectors for its compact size and robust design. ODC assemblies are easy to install even in areas difficult to access and provide highest installation safety.

4- Naval and ship building
The high corrosion resistance convinced both naval and civil ship builders to use ODC assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.

5- Broadcast
offers a range of mobile cabling systems and ODC assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc.and for temporary connections in case of natural hazards.

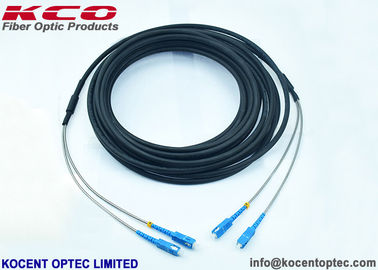

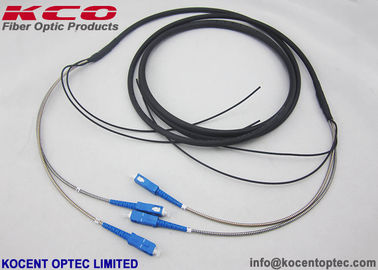

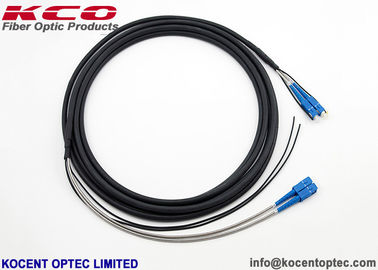

Product photo:
SC CPRI Outdoor Fiber Optical Patch Cord Amored / Non Armored FTTA TPU LSZH Black Color 3

SC CPRI Outdoor Fiber Optical Patch Cord Amored / Non Armored FTTA TPU LSZH Black Color 4
SC CPRI Outdoor Fiber Optical Patch Cord Amored / Non Armored FTTA TPU LSZH Black Color 5



Specifications:

Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
  Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, ...
Fiber count

2 cores
4 cores
6 cores
8 cores
12 cores
24 cores
48 cores

Fiber Type

SM
G.652D
G.657A (A1, A2, B3, ...)



MM
OM1
OM2
OM3
OM4
OM5)

Jacket Materials

LSZH
TPU
PE

Cable diameter

4.8mm
5.0mm
5.5mm
6.0mm
6.5mm
7.0mm

Testing Wavelengths

SM:
1310±30nm
1550±30nm



MM:
850±30nm
1300±30nm

Insertion Loss(dB)
TIA/EIA-455-107
≤ 0.3dB(PC/UPC/APC)
≤ 0.3dB(UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC)
Exchange ability ≤ 0.2dB
Cable Assemblies Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
Operating Temperature -14℃~+ 85℃
Storage Temperature -40℃~+85℃


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
SC CPRI Outdoor Fiber Optical Patch Cord Amored / Non Armored FTTA TPU LSZH Black Color 6

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
SC CPRI Outdoor Fiber Optical Patch Cord Amored / Non Armored FTTA TPU LSZH Black Color 7
