2 Core Fiber Optic Cable Patch Cord Connector High Strength IP68 0.2dB Insertion Loss

Good quality Fiber Optic Patch Cord for sales
Good quality Fiber Optic Patch Cord for sales
I'm Online Chat Now

2 Core Fiber Optic Cable Patch Cord Connector High Strength IP68 0.2dB Insertion Loss

China 2 Core Fiber Optic Cable Patch Cord Connector High Strength IP68 0.2dB Insertion Loss supplier
2 Core Fiber Optic Cable Patch Cord Connector High Strength IP68 0.2dB Insertion Loss supplier 2 Core Fiber Optic Cable Patch Cord Connector High Strength IP68 0.2dB Insertion Loss supplier 2 Core Fiber Optic Cable Patch Cord Connector High Strength IP68 0.2dB Insertion Loss supplier

Large Image :  2 Core Fiber Optic Cable Patch Cord Connector High Strength IP68 0.2dB Insertion Loss

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO
Certification: ISO9001, RoHS
Model Number: 1 2 4 6 8 12 Core

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PE bag, carton box, wooden roll
Delivery Time: 2~5 days after get payment
Payment Terms: Western Union, T/T, L/C
Contact Now
Detailed Product Description
Connector 1: SC ST FC LC Connector 2: FC, LC, SC, ST, E2000, ...
Core: 1 2 4 6 8 Cores Insertion Loss: 0.2dB
Return Loss: 55dB Cable Cover Material: LSZH, TPU

2Core FTTA Water-proof Army Field Military Tactical Fiber Optic Patch Cord Connector IP68

Introduction:

- Kocent Optec Limited is one of lead outdoor field fiber optic patch cord manufacturer. Special is in all type of field fiber optic patch cord with waterproof connector, such as: Military Connector, PDLC, ODVA, ...

-  With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment. We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.

- FTTA Water-proof Army Field Military Tactical Fiber Optic Patch Cord Connector is designed for military field fiber optic cable supporting, neutral bayonet locking structure can be realized head and seat, head and head, seat and seat fast any connection.

- With multi-core once connected and blind insertion;connection loss, high reliability; rugged, waterproof, dustproof, resistance to harsh environments, etc.,

- Can be used in a variety of optical fiber communication network field army, military computer systems, airborne or ship borne equipment, repair and other outdoor optical cable system temporary connection.

- Product is available in 2 core, 4-core, 6-core, 8-core, 12-core.



Features

● Wiring compact all-dielectric structure, the inner sleeve is 0.9mm fiber, the cable has a high strength-weight ratio, allowing for quick wiring;
● High-strength fiber composite structure secondary coating offers the best performance and minimum temperature of the additional attenuation cables in harsh conditions to ensure the reliability and service life;
● A special high-strength, flexible type central reinforcing element, to ensure fiber strength and bending properties;
● Large area of aramid reinforced fiber optic cable to provide a high mechanical strength;
● Small tight pitch SZ stranded helical twisted fibers and aramid fibers single combined to ensure the field fiber optic cable has greater tensile strain capacity;
● Environmental friendly, Comply with RoHS.

Applications
● Data transmission and industrial automation and control bus system
● Intelligent systems and industrial robot servo system
● Communication switching system
● Digital multimedia systems
● Medical sensing system
● Power systems

● Military Communications
● Coal, oil, natural gas, etc.
● Geological exploration Communications
● Broadcast television,
● Emergency reopened optical fiber communication

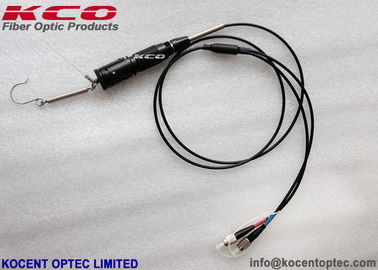

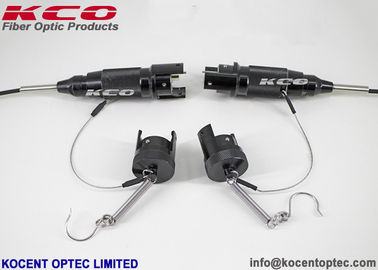

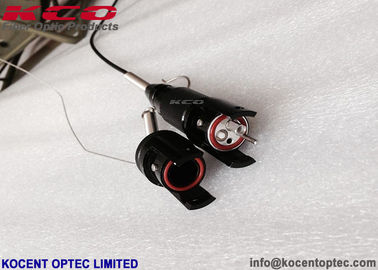

Products photo:

2 Core Fiber Optic Cable Patch Cord Connector High Strength IP68 0.2dB Insertion Loss







Specifications:

Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
  Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, ...
Fiber count

2 cores
4 cores
6 cores
8 cores
12 cores

Fiber Type

SM
G.652D
G.657A (A1, A2, B3, ...)



MM
OM1
OM2
OM3
OM4
OM5)

Jacket Materials

LSZH
TPU
PE

Cable diameter

4.8mm
5.0mm
5.5mm
6.0mm
6.5mm
7.0mm

Testing Wavelengths

SM:
1310±30nm
1550±30nm



MM:
850±30nm
1300±30nm

Insertion Loss(dB)
TIA/EIA-455-107
≤ 0.3dB(PC/UPC/APC)
≤ 0.3dB(UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC)
Exchange ability ≤ 0.2dB
Cable Assemblies Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
Operating Temperature -14℃~+ 85℃
Storage Temperature -40℃~+85℃


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

2 Core Fiber Optic Cable Patch Cord Connector High Strength IP68 0.2dB Insertion Loss


Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
2 Core Fiber Optic Cable Patch Cord Connector High Strength IP68 0.2dB Insertion Loss
