|Connector 1:||FULLAXS SC ST FC LC||Connector 2:||FC, LC, SC, ST, E2000, ...|
|Core:||1 2 4 6 8 Cores||Insertion Loss:||0.2dB|
|Return Loss:||55dB||Cable Cover Material:||LSZH, TPU|
patch cord pigtail,
fibre optic patch cable

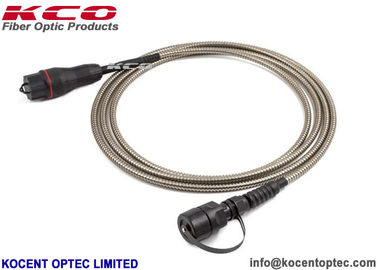

Fullaxs ODVA Anti Rodent Fiber Optic Patch Cord Spiral Armored FTTA Military Field Patch Cable
- Kocent Optec Limited is one of lead outdoor field fiber optic patch cord manufacturer. Special is in all type of field fiber optic patch cord with waterproof connector, such as: Fullaxs Connector, Military Connector, PDLC, ODVA, ...
- With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment. We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.
- FTTA Water-proof Army Field Military Tactical Fiber Optic Patch Cord Connector is designed for military field fiber optic cable supporting, neutral bayonet locking structure can be realized head and seat, head and head, seat and seat fast any connection.
- With multi-core once connected and blind insertion; connection loss, high reliability; rugged, waterproof, dustproof, resistance to harsh environments, etc.,
Application: A CPRI/ FTTA/ Base Station patch cord is used as: 3G 4G base station, Aerospace& Defence, Equipment diagnosis, FO sensor, FTTA ,FTTP, FTTX, WIMAX, BBU, RRU, RRH, LTE.
- Product is available in 2 core, 4-core, 6-core, 8-core, 12-core.
- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High temperature stability.
- Precise connector
- Excellent mechanical capability
- Connector type: LC/UPC, SC/UPC, FC/UPC, ST/UPC. LC/APC, SC/APC, FC/APC, ST/APC
- Insertion Loss: <=0.2db <=0.3db
- Return Loss: >=50db >=60db
- Fiber mode: Single-mode/ Multi-mode, G.652.D
- Operating wavelength: 1310, 1550nm
- Test wavelength: 1310,1550nm
- Repeatability: <=0.1
- Interchangeability: <=0.2dB
- Durability: <=0.2dB
- Fiber Length: 1m, 2m….. any length optional.
- Length and tolerance: 10cm
- Operating Temperature: -40C ~ +85C
- Storage Temperature: -40C ~ +85C
- Type 1: SUS Spiral Steel Amoured +LSZH+Kevlar+ 2×Buffered 0.9mm fiber (4.8mm);
- Type 2: SUS Spiral Steel Amoured + LSZH+Kevlar+ 2×2.0mm cable (7.0mm)
- Other cable construction welcome to customerize.
- The connectors are comply with IEC, Telcordia-GR-326-Core standards;
- Different size & color boot option;
- Low insertion loss; High return loss;
- 100% interferometer measurement;
- Telecommunication networks;
- Local area networks;
- Active device termination;
- Data center system networks;
- Military exercise;
- Performance and so on.
|Parameters||Standard Fiber Cable Assemblies|
|Connector||Side A: SC with armored|
|Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, ...|
|Exchange ability||≤ 0.2dB|
|Cable Assemblies||Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord|
|Operating Temperature||-14℃~+ 85℃|
