KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box

China KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box supplier
KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box supplier KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box supplier KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box supplier KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box supplier

Large Image :  KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001
Model Number: KCO-0416B

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton box, wooden pallet
Delivery Time: 7~14 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 pcs/ month
Contact Now
Detailed Product Description
Part Number: KCO-0416B Material: ABS+PC
Color: White/ Black/ Customized Connector: SC, ST, LC, FC, E2000, Etc
Application: Outdoor Capacity: 16 Fibers Fo





KCO-0416B 1*16 1*8 Fiber Optical Splitter Distrinution Terminal Enclosure Box ABS+PC





Descriptions:

- KCO-0416B fiber access termination closure is able to hold up to 16 subscribers and 96 splicing points as closure.

- It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system.

- It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

- KCO-0416B Fiber Optic CTO Distribution Box Outdoor Water Proof 16 Cores fiber optic access termination box is designed to seal with screws and buckles.

- The compact size and flip-over cover bring easy operation as well as complete function.

- The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier.

- You can take each tray out, after splice, then fix it in closure. It is designed to prevent from operation damage.

- Environmental requirement

Working temperature: -40℃~+85℃

Relative humidity: ≤85%(+30℃)

Atmospheric pressure: 70KPa~106Kpa

- Insertion loss: ≤0.2dB

- Return loss:

UPC return loss: ≥50dB

APC return loss: ≥60dB

- Life of insertion and extraction: >1000 times

- The grounding device is isolated with the cabinet, isolation resistance is less

- The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V



Applications:

- Wall mounting and pole mounting installation

- FTTH pre-installation and filed installation

- 2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable



Features:

- Water-proof design with IP-65 Protection Level.

- Can be used indoor and outdoor, wall mount and pole mount

- Integrated with 4pcs flap-up splice cassette and adaptor holder

- All stainless metal plate and anti-rusting bolts, nuts

- Fiber bend radius control more than 40mm

- Suitable for the fusion splicer or mechanical splice

- 2 Pcs of 1*8 Splitter can be installed as an option

- Mechanical sealing structure and mid-span cable entry.

- 16 outports for drop cable

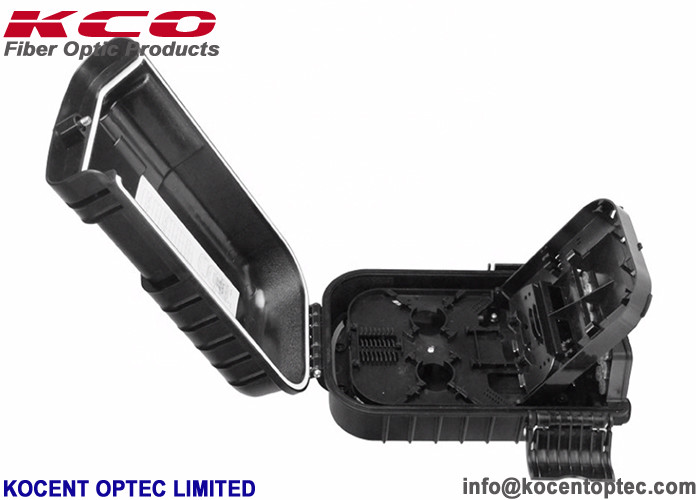

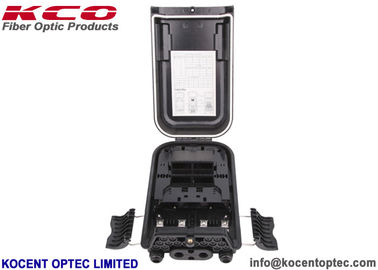

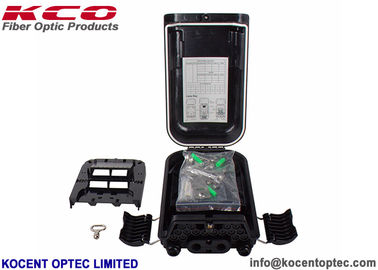

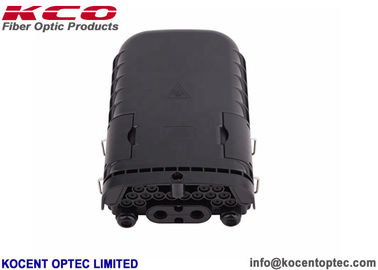

Product photo:



KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box

KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box

KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box

KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box



Specification:
Model KCO-0416B
Material PC+ABS
Dimension 287*172*102mm
Cable Port

2 uncut port

2 reserved cable entrance

Cable Dimension

2 uncut port: 10-16.5mm;

2 reserved port: 8-16.5mm

Cable Outport 16 outputs for drop cable
Max. Capacity 24 Fibers
Sealing structure Mechanical sealing(buckle and screw)
PLC Splitter Max. micro 1x16 Splitter, 2 pcs 1*8 PLC Splitter
Color Gray/Black/White
IP Grade IP65
Application Wall mount, pole mount
Weight 1.20kg


Ordering information:
Item Capacity Splitter Connector Adapter Logo
KCO-0416B 16 cores 1*2 SC/UPC SC/UPC KCO
1*4 SC/APC SC/APC customized
1*6 FC/UPC FC/UPC
1*8 FC/APC FC/APC
1*12 ST/UPC ST/UPC
1*16 LC/UPC LC/UPC
... ... ...


OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
