Cajas Nap CTO Splitter Fiber Optic Terminal Box KCO-0416 Outdor FTTH 16 Ports IP65

China Cajas Nap CTO Splitter Fiber Optic Terminal Box KCO-0416 Outdor FTTH 16 Ports IP65 supplier
Cajas Nap CTO Splitter Fiber Optic Terminal Box KCO-0416 Outdor FTTH 16 Ports IP65 supplier Cajas Nap CTO Splitter Fiber Optic Terminal Box KCO-0416 Outdor FTTH 16 Ports IP65 supplier

Large Image :  Cajas Nap CTO Splitter Fiber Optic Terminal Box KCO-0416 Outdor FTTH 16 Ports IP65

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001
Model Number: KCO-0416W

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton box, wooden pallet
Delivery Time: 7~14 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 pcs/ month
Contact Now
Detailed Product Description
Part Number: KCO-0416W Material: ABS+PC
Color: White/ Black/ Grey/ Customized Connector: SC, ST, LC, FC, E2000, Etc
Application: Outdoor Capacity: 16 Fibers Fo
Water Proof: IP65 UV-Anti: Yes



KCO-0416 Outdor FTTH 16 Ports Fibra Optica Cajas Nap CTO Splitter Distribution Box





Descriptions:

KCO-0416 is new design for outdoor applicatin of optic fiber access termination closure, it is able to hold up to 16 subscribers and 96 splicing points as closure.

It is available in grey, black and white color, and also as customer request.

The box ex-work status without any logo on box, we can print customer logo as request.

It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system.

It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

KCO-0416 Fiber Optic CTO Distribution Box Outdoor Water Proof IP 65 wit 16 Cores fiber optic access termination box is designed to seal with screws and buckles.

The compact size and flip-over cover bring easy operation as well as complete function.

The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier.

You can take each tray out, after splice, then fix it in closure. It is designed to prevent from operation damage.



Data:

Item Material Size (mm) Max Capacity Nos of Adaptor Wight Color
KCO-0416 ABS/PC 287*172*102 Splice 16 Fibers
(1 tray)

1*8 PLC Splitter:

2pcs

16pc of SC 1.20kg

Grey

Black

White



Features:

- Water-proof design with IP-65 Protection Level.

- Can be used indoor and outdoor, wall mount and pole mount

- Integrated with 4pcs flap-up splice cassette and adaptor holder

- All stainless metal plate and anti-rusting bolts, nuts

- Fiber bend radius control more than 40mm

- Suitable for the fusion splicer or mechanical splice

- 2 Pcs of 1*8 Splitter can be installed as an option

- Mechanical sealing structure and mid-span cable entry.

- 16 outports for drop cable

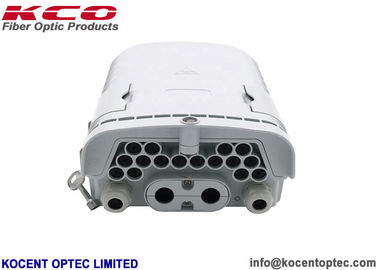

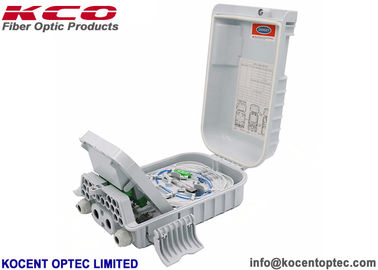

Product photo:

Cajas Nap CTO Splitter Fiber Optic Terminal Box KCO-0416 Outdor FTTH 16 Ports IP65

Cajas Nap CTO Splitter Fiber Optic Terminal Box KCO-0416 Outdor FTTH 16 Ports IP65







Specification:
Model KCO-0416B
Material PC+ABS
Dimension 287*172*102mm
Cable Port

2 uncut port

2 reserved cable entrance

Cable Dimension

2 uncut port: 10-16.5mm;

2 reserved port: 8-16.5mm

Cable Outport 16 outputs for drop cable
Max. Capacity 24 Fibers
Sealing structure Mechanical sealing(buckle and screw)
PLC Splitter Max. micro 1x16 Splitter, 2 pcs 1*8 PLC Splitter
Color Gray/Black/White
IP Grade IP65
Application Wall mount, pole mount
Weight 1.20kg


Ordering information:
Item Capacity Splitter Connector Adapter Logo
KCO-0416B 16 cores 1*2 SC/UPC SC/UPC KCO
1*4 SC/APC SC/APC customized
1*6 FC/UPC FC/UPC
1*8 FC/APC FC/APC
1*12 ST/UPC ST/UPC
1*16 LC/UPC LC/UPC
1*24 LC/APC LC/APC


OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.


Cajas Nap CTO Splitter Fiber Optic Terminal Box KCO-0416 Outdor FTTH 16 Ports IP65



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea


Cajas Nap CTO Splitter Fiber Optic Terminal Box KCO-0416 Outdor FTTH 16 Ports IP65
