Mini Splitter Optical Fiber Terminal Box 16 Port Outdoor IP65 FAT CTO Box KCO-0416W

China Mini Splitter Optical Fiber Terminal Box 16 Port Outdoor IP65 FAT CTO Box KCO-0416W supplier
Mini Splitter Optical Fiber Terminal Box 16 Port Outdoor IP65 FAT CTO Box KCO-0416W supplier Mini Splitter Optical Fiber Terminal Box 16 Port Outdoor IP65 FAT CTO Box KCO-0416W supplier Mini Splitter Optical Fiber Terminal Box 16 Port Outdoor IP65 FAT CTO Box KCO-0416W supplier

Large Image :  Mini Splitter Optical Fiber Terminal Box 16 Port Outdoor IP65 FAT CTO Box KCO-0416W

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001
Model Number: KCO-0416W

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton box, wooden pallet
Delivery Time: 7~14 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 pcs/ month
Contact Now
Detailed Product Description
Part Number: KCO-0416B Material: ABS+PC
Color: White/ Black/ Customized Connector: SC, ST, LC, FC, E2000, Etc
Application: Outdoor Capacity: 16 Fibers Fo





KCO-0416B 16 Port Fiber Optic Termination Mini Splitter Box / Fibre Optik Distribution Box





Descriptions:

- KCO-0416B is fiber optic terminal enclosure box, it design with 16 ports for FTTH drop cable and 4 ports for outdoor fiber optic cable.

- KCO-0416 is avaibale in three colors:

Black color: KCO-0416B

White color: KCO-0416W

Grey color: KCO-0516G

- KCO-0416B fiber access termination closure is able to hold up to 16 subscribers as a splitter box and 96 splicing points as splice closure.

- It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system.

- It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

- The compact size and flip-over cover bring easy operation as well as complete function.

- The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier.

- You can take each tray out, after splice, then fix it in closure. It is designed to prevent from operation damage.



Technical Data:

- Environmental requirement

     Working temperature: -40℃~+85℃

     Relative humidity: ≤85%(+30℃)

     Atmospheric pressure: 70KPa~106Kpa

- Insertion loss: ≤0.2dB

- Return loss:

     UPC return loss: ≥50dB

     APC return loss: ≥60dB

- Life of insertion and extraction: >1000 times

- The grounding device is isolated with the cabinet, isolation resistance is less

- The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V



Usage:

- Wall mounting installation,

- Pole mounting installation,

- FTTH pre-installation,

- Filed installation,

- 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable.



Features:

- Water-proof design with IP-65 Protection Level.

- Can be used indoor and outdoor, wall mount and pole mount

- Integrated with 4pcs flap-up splice cassette and adaptor holder

- All stainless metal plate and anti-rusting bolts, nuts

- Fiber bend radius control more than 40mm

- Suitable for the fusion splicer or mechanical splice

- 2 Pcs of 1*8 Splitter can be installed as an option

- Mechanical sealing structure and mid-span cable entry.

- 16 outports for drop cable

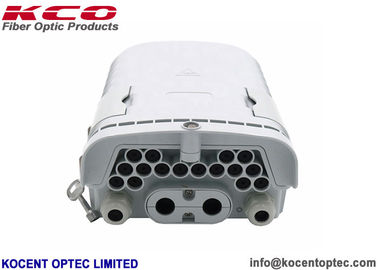

Product photo:

Mini Splitter Optical Fiber Terminal Box 16 Port Outdoor IP65 FAT CTO Box KCO-0416W

Mini Splitter Optical Fiber Terminal Box 16 Port Outdoor IP65 FAT CTO Box KCO-0416W

Mini Splitter Optical Fiber Terminal Box 16 Port Outdoor IP65 FAT CTO Box KCO-0416W







Specification:
Model KCO-0416B
Material PC+ABS
Dimension 287*172*102mm
Cable Port

2 uncut port

2 reserved cable entrance

Cable Dimension

2 uncut port: 10-16.5mm;

2 reserved port: 8-16.5mm

Cable Outport 16 outputs for drop cable
Max. Capacity 24 Fibers
Sealing structure Mechanical sealing(buckle and screw)
PLC Splitter Max. micro 1x16 Splitter, 2 pcs 1*8 PLC Splitter
Color Gray/Black/White
IP Grade IP65
Application Wall mount, pole mount
Weight 1.20kg


Ordering information:
Item Capacity Splitter Connector Adapter Logo
KCO-0416B 16 cores 1*2 SC/UPC SC/UPC KCO
1*4 SC/APC SC/APC customized
1*6 FC/UPC FC/UPC
1*8 FC/APC FC/APC
1*12 ST/UPC ST/UPC
1*16 LC/UPC LC/UPC
... ... ...


OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Mini Splitter Optical Fiber Terminal Box 16 Port Outdoor IP65 FAT CTO Box KCO-0416W
