DIN Fiber Optic Patch Cord with 0.2dB Insertion Loss OM1 OM2 OM3 OM4 OM5 and 50dB Return Loss

  • DIN Fiber Optic Patch Cord with 0.2dB Insertion Loss OM1 OM2 OM3 OM4 OM5 and 50dB Return Loss
  • DIN Fiber Optic Patch Cord with 0.2dB Insertion Loss OM1 OM2 OM3 OM4 OM5 and 50dB Return Loss
  • DIN Fiber Optic Patch Cord with 0.2dB Insertion Loss OM1 OM2 OM3 OM4 OM5 and 50dB Return Loss
  • DIN Fiber Optic Patch Cord with 0.2dB Insertion Loss OM1 OM2 OM3 OM4 OM5 and 50dB Return Loss
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number DIN/PC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 DIN/PC Connector 2 SC, LC, FC, ST
Fiber Count Simplex, Duplex, Multi-fibers Insertion Loss 0.2dB
Return Loss 50dB Fiber Type OS2, OM1, OM2, OM3, OM4, OM5
Color Yellow, Orange, Aqua, Violet, Lime Green Cover PVC, LSZH
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description
DIN Fiber Optic Patch Cord OM1 OM2 OM3 OM4 OM5 SM PVC LSZH Cover 0.2dB Insertion Loss
Product Description

DIN Fibra Optical Patch Cable OM1 OM2 OM3 OM4 OM5 SM 1m 3m 5m 10m 15m

Introduction
  • Fiber patch cable connects computers with equipment
  • Features convenient connection and management with thicker protection layer, typically used between optical devices and terminal boxes
Technical Standard
  • Insertion Loss: PC ≤ 0.2dB, UPC ≤ 0.2dB, APC ≤ 0.3dB; Typical: 0.1dB
  • Return Loss: SM PC ≥ 50dB, UPC ≥ 55dB, APC ≥ 65dB; MM PC ≥ 35dB, UPC ≥ 35dB
  • Interchangeability: ≤0.2dB
  • Salt Spray: ≤0.2dB
  • Repeatability: (1000 times) ≤0.1dB
  • Vibration: (550Hz 1.5mm) ≤0.1dB
  • High Temperature: (+85 sustain 100 hours) ≤0.2dB
  • Low Temperature: (-40 sustain 100 hours) ≤0.2dB
  • Temperature Circularly: (-40+85 sustain 100 hours) ≤0.2dB
  • Humidity: (+25+65 93 R.H.100 hours) ≤0.2db
  • Apex Offset: 0μm≤≤50μm
  • Radius of Curvature: 7mm≤≤25mm
  • Cable Type: Simplex, Duplex, Fan-Out, Branch Out
  • Connector Type: LC, SC, FC, ST, E2000, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc.
  • Fiber Mode: SM (single mode) G652D, G655, G657 MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125, 40Gbs/100Gb/s 50/125)
Product Photos

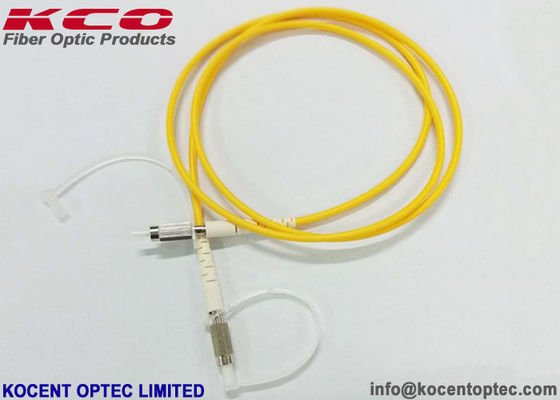

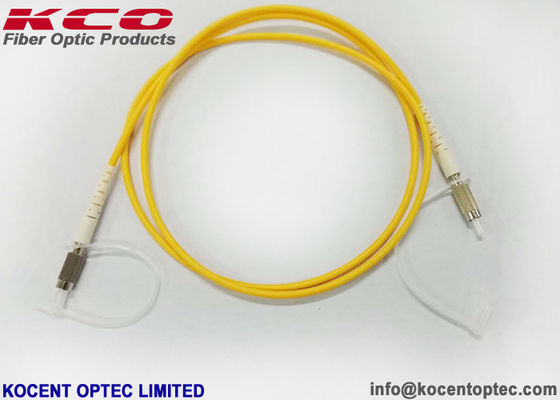

DIN Fiber Optic Patch Cord with 0.2dB Insertion Loss OM1 OM2 OM3 OM4 OM5 and 50dB Return Loss 0 DIN Fiber Optic Patch Cord with 0.2dB Insertion Loss OM1 OM2 OM3 OM4 OM5 and 50dB Return Loss 1
Features
  • Compliant with Telcordia's GR-326-Core and IEC Standards
  • Green production meeting RoHS standards
  • Excellent polished finish with 100% testing
  • High stability in various environments
  • Custom orders available
Categories
  • FC, SC, ST, LC, MTRJ, MPO, MU, SMA, FDDI, E2000, DIN, D4 patch cables
  • Standard configurations: FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST etc.
Available Lengths
  • 0.5m, 1m, 2m, 3m, 5m, 10m and custom lengths
Characteristics
  • Low insertion loss
  • Excellent repeatability
  • High return loss
  • Superior mutual insert performance
  • Outstanding temperature stability
Applications
  • Optical fiber communication systems
  • Optical access networks
  • Fiber-optic data transmission
  • Fiber optic CATV
  • Local area networks (LAN)
  • Test equipment
  • Fiber optic sensors
Technical Data
Data Unit FC, LC, SC Jumper SR, MU MT-RJ, MPO E2000
SM MM SM MM
PC UPC APC PC
Insert loss DB ≤0.3 ≤0.2 ≤0.3 ≤0.3
Return loss DB ≥45 ≥50 ≥60 ≥30
Work wavelength NM 1310,1510
Interchange ability DB ≤0.2
Vibration DB ≤0.2
Work temperature ℃ -40 to 75
Install temperature ℃ -40 to 85
Fiber OD MM 3.0/2.0/0.9
OEM/ODM Service

We offer custom branding options for cables, packaging, labels, and more. Our OEM and ODM services are available to meet your specific requirements.

Packing

Standard export packing options include carton boxes, wooden boxes, and wooden pallets.

Shipping
  • International express: UPS, TNT, DHL etc.
  • International air: CA, AA, EA etc.
  • Sea freight

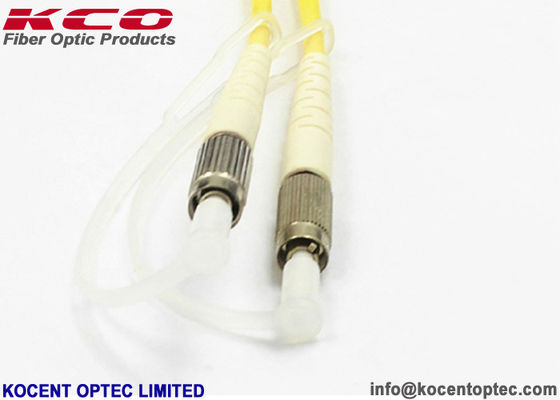

DIN Fiber Optic Patch Cord with 0.2dB Insertion Loss OM1 OM2 OM3 OM4 OM5 and 50dB Return Loss 2
KOCENT OPTEC LIMITED - Your Reliable Fiber Optic Partner

We prioritize our customers' business needs and requirements, building long-term relationships with distributors and working closely with installers, consultants, integrators, and end users.

We stay attuned to market trends and technological innovations in this fast-moving industry, maintaining flexibility to keep our customers at the forefront.
