Polarization Maintaining PM CIR Fibre Optic Circulator Four Port 1064nms 1310nm 1550nm

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-PMFOC-4P-FCA-xxxxnm
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steelless Tube Type Length 1.0m
Type 1*2 1x2 Port No. 3 Port, Three Port
Connector FC/APC Cable 0.9mm
Wavelength 1064nm, 1310nm, 1490nm, 1550nm
High Light

PLC Optical Splitter

,

ABS Box PLC Splitter

Leave a Message
Product Description



Polarization Maintaining PM CIR Fibre Optic Circulator Four Port

Single Mode 1064nm 1310nm 1550nm



Descriptions:

- There are two type of circulator, they are single mode fiber optic circulator and PM ( polarization maintaining) fiber optic circulator.

- The polarization maintaining fiber optic circulator is available in 3 ports, 4 ports and 6 ports.

- It can come without connector or with FC/UPC connector, FC/APC connector and also other type of fiber optic connector to meet customer requesment.

- Polarization-Maintaining (PM) Optic Circulators are non-reciprocating, unidirectional, three-port devices that are used in a wide range of optical setups.

- Multiple wavelengths (850nm, 1030nm, 1064nm, 1310nm, 1550nm etc.) available, these circulators are fast axis blocked and hence are designed to work with light that is launched into the slow axis.

 - It is used in non-reciprocating systems, making light travel in a given direction while isolating light travelling in the opposite direction;

- Low insertion loss, high isolation and high extinction ratio;

- We offer circulators with no connectors, FC/PC connectors, or FC/APC connectors or also other type of connector to match with customer request.

- Used as an add/drop multiplexer in optical communication systems, for bi-directional pumping, fiber sensing and dispersion compensation.



PM and PI Circulator Tube Size:



Polarization Maintaining PM CIR Fibre Optic Circulator Four Port 1064nms 1310nm 1550nm 0



Characteristic:

- Non-Reciprocating

- Unidirectional Operation

- Center Wavelengths: 1064 nm, 1310 nm, or 1550 nm

- Polarization-Maintaining Fiber Available with Bare Fiber, FC/PC Connectors, or FC/APC Connectors or other connector.

- Fast Axis Blocking

Polarization Maintaining PM CIR Fibre Optic Circulator Four Port 1064nms 1310nm 1550nm 1



Applications:

- Fiber Sensors

- EDFA

- CATV Fiber Optic Links
- Fiber Optic System Testing
- Fiber Optic LAN Systems
- Telecommunication

- Add-Drop Multiplexing

- Bidirectional Pumping

- Bidirectional Signal Transmission Systems

- Coupling In-Line Chromatic Dispersion Compensation Devices



Features:

- High Channel Isolation

- Low Insertion Loss

- High Return Loss

- Low PDL

- High Stability and Reliability

- Compact in-Line Package

- Epoxy Free Optical Patch Cord

High-Power Options for 1064nm and 1550 nm

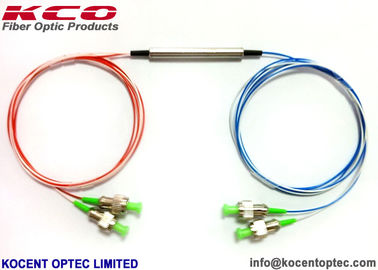

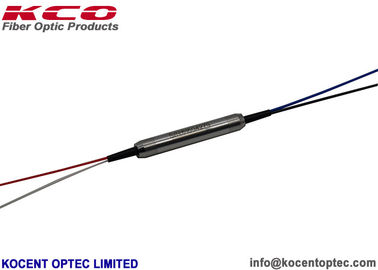

Product photo:

Polarization Maintaining PM CIR Fibre Optic Circulator Four Port 1064nms 1310nm 1550nm 2

Polarization Maintaining PM CIR Fibre Optic Circulator Four Port 1064nms 1310nm 1550nm 3

Polarization Maintaining PM CIR Fibre Optic Circulator Four Port 1064nms 1310nm 1550nm 4



Specifications:

Configuration Wavelength (nm) Insertion loss (dB) Isolation (dB) Power (mW)
3 ports (1 to 2 to 3 to 1) 1064 <2.3 >20 300
  1310/1550 <0.8 >30 500
4 ports (1 to 2 to 3 to 4) 1064 <4.0 >45 300
  1310/1550 <1.1 >40 300
Grade GRADE P GRADE A
Construction Port1 to Port 2, Port2 to Port3
Operation Wavelength(nm) 1310/1550/ 1585
Standard Input Loss(23°C) 0.4 0.5
Max. Insertion Loss(23°C) 0.5 0.6
Max. Isolation(dB) 50
Min. Isolation(dB) 40
Directivity(dB) 50
PDL(dB) 0.15
PMD(ps) 0.1
RL(dB) 50
Bandwidth(nm) +/-30
Max. Operating Power(mw) 500/300
Operating Temperature(°C) 0~70
Storage Temperature(°C) -40~85



OEM/ODM Service:
If you want to show your own brand logo on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
