LC APC Fiber Optic PLC Splitter

  • LC APC Fiber Optic PLC Splitter
  • LC APC Fiber Optic PLC Splitter
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number PLC-LCA-2x32 or PLC-SCA-2x32
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box
Delivery Time 3~7 days after payment
Payment Terms L/C, T/T, Western Union
Supply Ability 50,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 2x32 Connector SC/APC, SC/UPC
Uniformity (Max.) 2.5dB Insertion Loss 18.2dB
PDL(Max.) 0.4dB ABS Plastic Box Size 120x90x18mm
High Light

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description

FTTH 2x32 ABS Module Fiber Optic PLC Splitter Corning Fiber with PVC with LC/APC Connector



PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2.0mm and up to 3.0mm, or LGX metal box for plug and play splitter applications. Customized designs are also available for customer needs, call or e-mail us about anything you need that you don't see here. Our PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications. All fiber splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.



Fiber Optic PLC Splitter Options:

- 1xN: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits.

- 2xN: 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits.

- Un-connectorized.

- Fiber jacketing outside boxes 2mm and up to 3mm.

- ABS box type or inside metal box/module cassette type.

- SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, ect connector options.

- Custom connector configurations and combinations.



Applications:

- Fiber to The Point (FTTX).

- Fiber to The Home (FTTH).

- Local Area Networks (LAN).

- Cable Television (CATV).

- Test Equipment.

- Passive Optical Networks (PON).

- Gigabit Passive Optical Networks (GPON).



Features:

- Low insertion loss.

- Low Polarization Dependent Loss.

- Excellent Environmental Stability.

- Excellent Mechanical Stability.

- Telcordia GR-1221 and GR-1209.



Product Picture:

LC APC Fiber Optic PLC Splitter 0

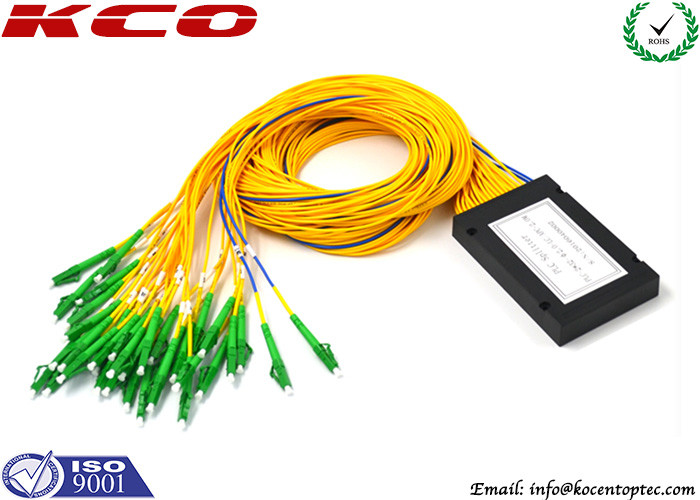

LC APC Fiber Optic PLC Splitter 1



Specifications:

Measured at room temperature and excludes connector loss
Type 2*32
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260～1650
Insertion Loss(dB) Typical 17.3
  Max 18.2
Loss Uniformity(dB) Max 2.5
Polariation Dependent Loss(dB) Max 0.4
Directivity(dB) ≥55
Return Loss (dB) UPC:50 APC:55
Operating Temperature (°C) -40～+85
Measured at room temperature and includes connector loss
Type 2*32
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260～1650
Insertion Loss(dB) Typical 17.8
  Max 18.7
Loss Uniformity(dB) Max 2.5
Polariation Dependent Loss(dB) Max 0.4
Directivity(dB) ≥55
Return Loss (dB) UPC:50 APC:55
Operating Temperature (°C) -40～+85



Rack Mount PLC Splitter Packing ways:
According to export standard packing.


OEM/ODM service: Our Rack Mount PLC Splitter OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.

Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
