Single Mode 4 Four Port Fiber Optic Cable Splitter Laser Circulator High Power

China Single Mode 4 Four Port Fiber Optic Cable Splitter Laser Circulator High Power supplier
Single Mode 4 Four Port Fiber Optic Cable Splitter Laser Circulator High Power supplier Single Mode 4 Four Port Fiber Optic Cable Splitter Laser Circulator High Power supplier Single Mode 4 Four Port Fiber Optic Cable Splitter Laser Circulator High Power supplier

Large Image :  Single Mode 4 Four Port Fiber Optic Cable Splitter Laser Circulator High Power

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001, RoHS
Model Number: KCO-PMFOC-4P-FCA-xxxxnm

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton box, wooden pallet
Delivery Time: 5~8 days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 set/ month
Contact Now
Detailed Product Description
Material: Steelless Tube Type Length: 1.0m
Type: 1*2 1x2 Port No.: 3 Port, Three Port
Connector: FC/APC Cable: 0.9mm
Wavelength: 1064nm, 1310nm, 1490nm, 1550nm



Single Mode 4 Four Port Fiber Optical Laser Circulator High Power 1064nm 1310nm 1550nm



Descriptions:

- We offer circulators with no connectors, FC/PC connectors, or FC/APC connectors or also other type of connector to match with customer request.

- There are two type of circulator, they are single mode fiber optic circulator and PM ( polarization maintaining) fiber optic circulator.

- The polarization maintaining fiber optic circulator is available in 3 ports, 4 ports and 6 ports.

The 4 ports optical circulator is a compact high performance lightwave component that transmits the incoming signal from port 1 to port 2, the 2nd signal from port 2 to port 3 and the 3 rd signal from port 3 to port 4.

- The component provides high isolation, low insertion loss, high extinction ratio, and excellent environment stability.

 - It is used in non-reciprocating systems, making light travel in a given direction while isolating light travelling in the opposite direction;

- Low insertion loss, high isolation and high extinction ratio;

- Used as an add/drop multiplexer in optical communication systems, for bi-directional pumping, fiber sensing and dispersion compensation.



Applications:

- CATV system

- Telecommunication network system

- Metro/Access networks

- Optical amplifier

- Wavelength add / drop

- Dispersion compensation

- Bi-Direction communication



Features:

- Four-port operation

- Wide band (+/-30nm at 1310nm or 1550nm)

- High isolation

- Low PDL

- Epoxy free optical path

- Low insertion loss

- Wide band high isolation

- Compact in-line package

- High stability and reliability

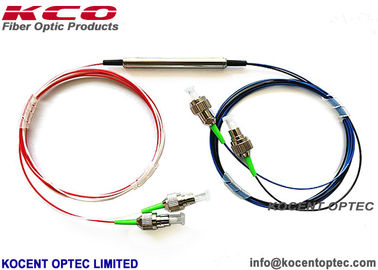

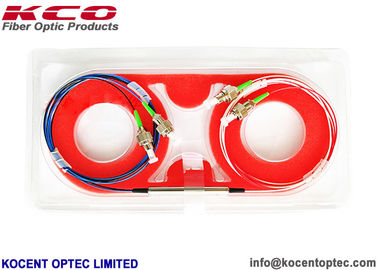

Product photo:

Single Mode 4 Four Port Fiber Optic Cable Splitter Laser Circulator High Power

Single Mode 4 Four Port Fiber Optic Cable Splitter Laser Circulator High Power

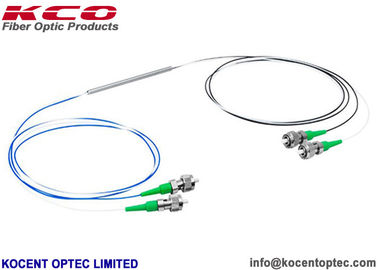

PM and PI Circulator Tube Size:



Single Mode 4 Four Port Fiber Optic Cable Splitter Laser Circulator High Power



Specifications:

Parameters Unit Specification
Operating wavelength Range nm 1310+/-30 or 1550+/-30 1525~1610(C+L)
Insertion loss (1-2, 2-3 @λOp, TOp, all states of polarization) dB ≤1.0 ≤1.2
Polarization Dependent Loss (PDL) dB ≤0.2 ≤0.25
Polarization Mode Dispersion (PMD) dB ≤0.10 ≤0.10
Isolation (2-1, 3-2 @λOp, TOp, all states of polarization) dB ≥50 ≥30
Directivity dB ≥50
Return Loss dB ≥50
Power handling(CW) mW ≤500
Pigtail length m 1.0±0.1
Port color --- Port 1: black, Port 2 and 3: clear (natural)
Tensile Load N ≤5
Operating Temperature 0 to +70
Storage Temperature -40 to +85
Parameters Values
Central wavelength 1310nm or 1550nm
Operating wavelength ± 30nm
Transmitting direction 1->2, 2->3, 3->4
Insertion loss <0.8dB
Isolation >45dB
Directivity >50dB
Return loss >50dB
PDL <0.15dB
PMD <0.05ps
Max. optical power 300mW
Max. tensile load 5N
Fiber type SMF28e
Operation temperature -5 to +70°C
Storage temperature -40 to +85°C



OEM/ODM Service:
If you want to show your own brand logo on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
