ODVA Water-proof FTTA-08A MPO Connector FTTA Fiber Optic Splice Closure

  • ODVA Water-proof FTTA-08A MPO Connector FTTA Fiber Optic Splice Closure
  • ODVA Water-proof FTTA-08A MPO Connector FTTA Fiber Optic Splice Closure
  • ODVA Water-proof FTTA-08A MPO Connector FTTA Fiber Optic Splice Closure
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number KCO-FTTA-08
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Pole Mount, Wall Mount Waterproof Port 1in 6 Out
P/N KCO-FTTA-06 Min. Capacity 12 Cores
Max Capacity 12 Cores Material ABS
Color Grey Connector Type PDLC, ODVA, Huawei Mini SC, ...
High Light

FTTA Fiber Optic Enclosure Box

,

MPO Connector Fiber Optic Enclosure
Leave a Message
Product Description



ODVA FTTA-08A Fiber Optic Enclosure Box MPO Water Proof Connector For Field Assembly



Benefits:
- High compatibility: can be assembled ODVA, OptiTap, Mini SC, AARC, PTLC, PTMPO or factory-sealed or field assembly

- Compact size, save cost, easy to operating.

- From 2 to 12 ports for single or multifiber harsh connectors
- Available with PLC or splice sleeve for fiber divide

- IP67 waterproof rating,Wall mounting, aerial installation or holding pole installation
- Decreased angle surface and height make sure no connector interfering when operating
- Cost effective: save 40% operating time



Feature:

- Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive
- Made of material with good capability of outdoor environment resistance and high durability
- Having reliable cable fixing and grounding facilities
- Using self-adhesive isolative tape and glue belt to seal
- To use rotating method to connect fiber organizer cassette result in easy installation
- Mechanical design suitable for installing, fiber splicing storage and cable connection
- Compact and tight



Application:

- FTTA (Fiber to the attena)

- FTTx (FTTA, FTTB, FTTH, FTTO, ...)

- CATV
- Telecom

- Opic fiber communications system

- Military Communication, ...



Specification:

Product Name FTTA Fiber Optic Splice Closure Box
P/N KCO-FTTA-06
Material ABS
Dimension (mm): 185*85*55mm
Weight 0.4KG
Max Capacity 12 Core
Ports 1 inlet 6 outlet
Suitable Water Proof Connector: ODVA, Huawei Mini SC, PDLC, Optitap, ODC, ...




Description:

- This FTTA fiber optic splice closure is special design to use for FTTA project.

- Norally it is installed on the pole come tho FTTA tower.

- Can install many different types of water proof connector such as: PDLC, ODVA, Optitap, Huawei Mini SC/APC, ...

- Come with 1pc input port, normally use to install the MPO waterproof connector, or also can use to install PLC splitter input connector.

- FTTx splice closure is a new economic fiber distributed solution for outdoor use.

- Compare traditional products, FTTx splice closure is easy to operate and has high compatibility.

- It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.

- FTTx splice closure not only used in FTTH field, but also used in FTTA or other harsh environment.

- Traditionally, Remote Radio Unit (RRU) and Building Base band Unit (BBU) connected by optical fiber cable, formed star network topology. Each RRU need one duplex outdoor cable link to BBU. Installation will need more time and cost will be high.
- FTTX Enclosure work as an Aggregation/Demark box, link RRU and BBU together. From BBU to FTTX Enclosure, only need one multi-fiber hybrid cable.
- Then FTTX Enclosure divide fibers to each RRU through IP67 pre-assembled waterproof cable assemblies. RRU can get power through assembled power connector on FTTX Enclosure.It can avoid needless duplication.


Product pictures:

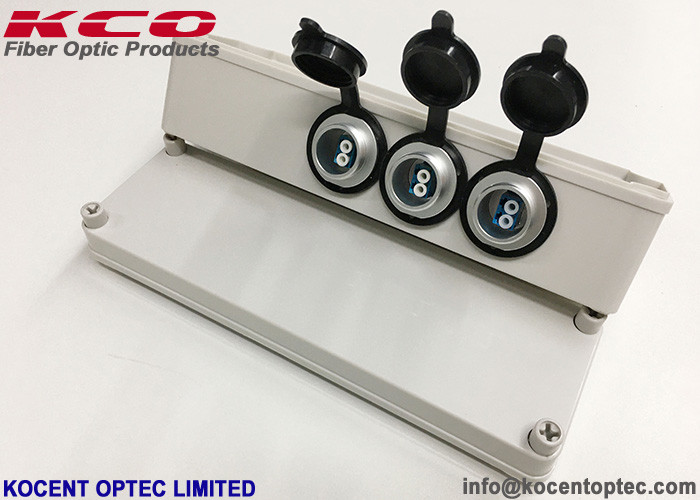

ODVA Water-proof FTTA-08A MPO Connector FTTA Fiber Optic Splice Closure 0

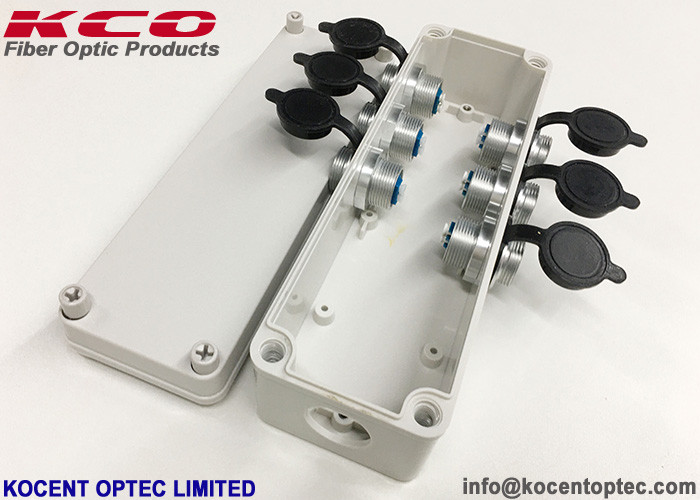

ODVA Water-proof FTTA-08A MPO Connector FTTA Fiber Optic Splice Closure 1

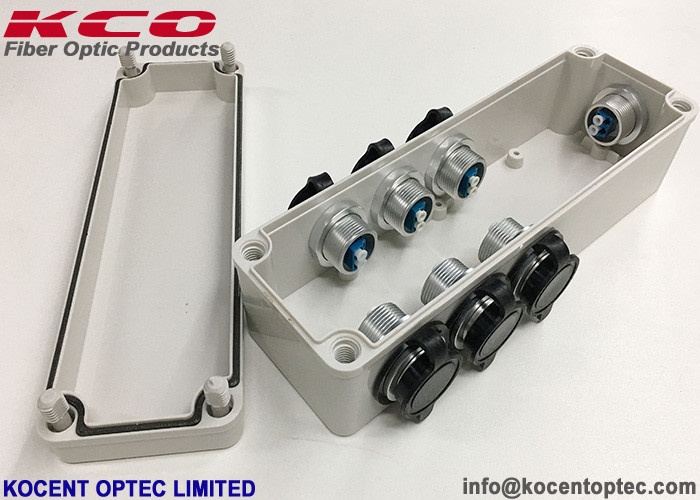

ODVA Water-proof FTTA-08A MPO Connector FTTA Fiber Optic Splice Closure 2





Relation products:





Lead time:
Quantity(Pieces) 1~10 11~100 101~500 >500
Est. Time(days) 3   10 Negotiable



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Mini Dome Fiber Optic Splice Closure KCO-DM22-48LX Outdoor IP67 Pole Mount 24/48 Core



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
