8CH Mux Passive Optical DWDM SC APC Connector 100G For CATV Networks

  • 8CH Mux Passive Optical DWDM SC APC Connector 100G For CATV Networks
  • 8CH Mux Passive Optical DWDM SC APC Connector 100G For CATV Networks
  • 8CH Mux Passive Optical DWDM SC APC Connector 100G For CATV Networks
  • 8CH Mux Passive Optical DWDM SC APC Connector 100G For CATV Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-DWDM-Mux-Module-8CH-0.9-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package ABS Box Channel No. 8CH
Fiber Type Single Mode Pigtail Length 0.3m
Cable Dia. 0.9mm Terminal Connector LC/UPC
IL ≤2.0dB RL ≥45dB
Fiber No. Single Fiber (Mux Or Demux) P/N KCO-DWDM-Mux-Module-8CH-0.9-SCA
High Light

Mux Passive Optical DWDM

,

8CH Passive Optical DWDM

,

CATV Networks CWDM Module
Leave a Message
Product Description

100G 200G 8Channel Mux DWDM SC/APC Connector Dense Wavelength Divisin Multiplexing



Descriptions:

- Wavelength-division multiplexing (WDM) technology combines multiple wavelengths into a single optical fiber. This technique enables better fiber utilization, as it increases fiber capacity by a factor of 16-96 and enables building effective optical networks.

- DWDM pluggable optical transceivers support wavelength tunability, which reduces the part numbers needed and enables faster delivery time while also reducing spare parts.

- The 10G/100G/200G/400G transceivers connect to the front panel and easily increase capacity for pay-as-you-grow network architecture.

- DWDM C-band spectrum supports up to 96 wavelengths, spaced at the standard ITU grid of 50GHz, 64 wavelengths, spaced at the standard ITU grid of 75GHz, and 48 wavelengths, spaced at the standard ITU grid of 100GHz. DWDM also supports flex-grid in which flexible bandwidth spectrum slices are allocated to the optical signals.

- The DWDM dense division multiplexing architecture enables the fitting of multiple wavelengths on a single fiber and supports long haul, metro and DCI applications with capacities of 10G/100G/200G/400G per wavelength.

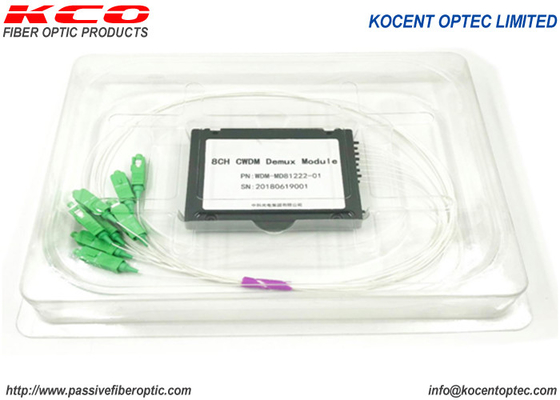

8CH Mux Passive Optical DWDM SC APC Connector 100G For CATV Networks 0



Product advantage:

- One of the biggest advantages of DWDM is the use of optical amplifiers, which can amplify the entire DWDM spectrum and overcome long spans of attenuation and fiber loss, enabling cost-effective transmission over long distance.

- The optical amplifiers are managed and configured as part of the optical network and have adjustable gain and operation modes.

- The optical multiplexer/demultiplexer (mux/demux) supports 4 to 96 DWDM channels in the fiber, with 50GHz, 75GHz and 100GHz spacing, according to the output standards.



Product photo:

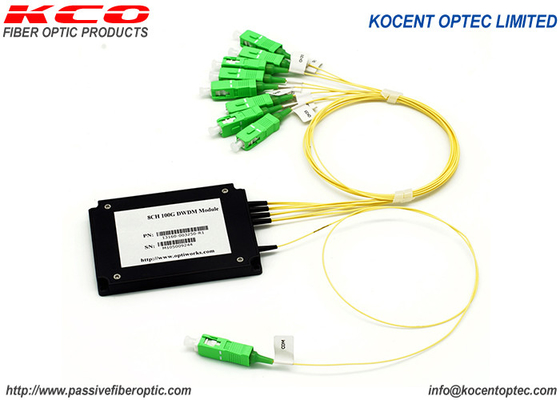

8CH Mux Passive Optical DWDM SC APC Connector 100G For CATV Networks 1

Key Features

- 100GHz ITU Channel Spacing (100GHz ITU)
- Low insertion loss
- Broadband transmission
- High channel isolation
- High stability and reliability
- Epoxy-free optical path


Applications
- DWDM System
- CATV networks

- PON Systems

- FTTx Systems


  DWDM C-band λc Wavelength Guide

  ITU Channel Code Wavelength ITU ChannelCode Wavelength
  21 1560.61 41 1544.53
  22 1559.79 42 1543.73
  23 1558.98 43 1542.94
  24 1558.17 44 1542.14
  25 1557.36 45 1541.35
  26 1556.55 46 1540.56
  27 1555.75 47 1539.77
  28 1554.94 48 1538.98
  29 1554.13 49 1538.19
  30 1553.33 50 1537.4
  31 1552.52 51 1536.61
  32 1551.72 52 1535.82
  33 1550.92 53 1535.04
  34 1550.12 54 1534.25
  35 1549.32 55 1533.47
  36 1548.51 56 1532.68
  37 1547.72 57 1531.9
  38 1546.92 58 1531.12
  39 1546.12 59 1530.33
  40 1545.32 60 1529.55


Relation products:

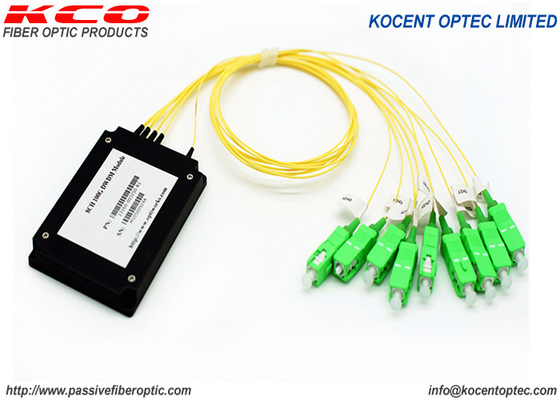

8CH Mux Passive Optical DWDM SC APC Connector 100G For CATV Networks 2



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
