|Connector:||SC/APC+ Others||Mode:||Single Mode|
|Core:||Simplex, Duplex, Multi-fibers||Cable Diameter:||0.9mm, 1.6mm, 2.0mm, 3.0mm, ...|
|Cover:||PVC, LSZH, ...||Insertion Loss:||0.2dB|
|Return Loss:||55dB||Length:||3m, 5m, Or Customized|
fibre optic patch cable,
patch cord pigtail

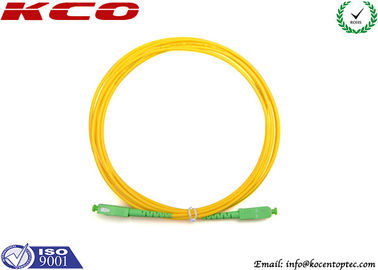

Telecom grade SC/APC - SC/APC fiber optic patch cables 3.0mm single mode simplex LSHZ
We can provide SC/APC-SC/APC fiber optic patch cord for single mode, multimode, simplex, duplex or multi-fibers. Also OEM Service is available, such as inside fiber, connector, cable length, color, cover materials, package all can be customized. All our SC/APC-SC/APC fiber optic patch cord meet RoHS Compliant, and 100% test Insert loss before shipment.
Fiber optic patch cables descriptions:
These high speed single-mode 9/125um fiber optic patch cables are terminated with SC/APC fiber optic connectors on one end and also SC/APC fiber optic connectors on the other end (SC/APC-SC/APC). Ferrule Connectors ("SC") is used in high-vibration environments and are commonly used for data-com, telecom, measurement equipment and single-mode lasers. They are slowly becoming less common in today's expanding fiber optic world. Referred to as Subscriber Connectors, Square Connectors or Standard Connectors, these push-pull connectors are the most common choice for FTTH (fiber to the home) applications in use for Data-com and Telecom and most GBIC modules require this connector type.
Our extensive range of fiber patch cables are terminated with state-of-the-art connectors, which available in any combination of FC, ST, SC and LC with PC, UPC or APC polish types to meet your standard or custom configurations. Our fiber optic jumpers have been geometrically inspected with interferometers and tested with automated insertion loss and reflection test equipment to ensure exceptional performance.
SC/APC-SC/APC fiber optic patch cord Features:
- High speed, single-mode
- Simplex fiber
- Push-pull SC connector on one end and also push-pull SC connector on the other end for easy installation.
- APC polish type to maximize signal transmission efficiency.
- RoHS Compliant
- Available in custom of cable diameter, lengths and colors
SC/APC-SC/APC fiber optic patch cord Specifications:
|Connection Style||Simplex or duplex or multi-fibers|
|Connectors||SC/APC to SC/APC|
|Typical Insertion Loss||≤ 0.15dB|
|Maximum Insertion Loss||≤ 0.30 dB|
|Maximum Return Loss||≥ 55 dB|
|Cable Cover||PVC, LSHZ|
|Cable Diameter||0.9mm, 1.6mm, 2.0mm, 3.0mm|
|Cable color||Yellow or customized|
Our SC/APC-SC/APC fiber optic patch cord packing ways:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
