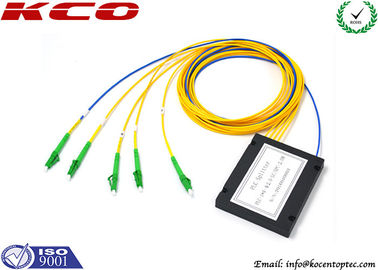

FTTH Fiber Optic ABS Box PLC Splitter / Corning Optical Fibre Splitter 1 x 4 Type

  • FTTH Fiber Optic ABS Box PLC Splitter / Corning Optical Fibre Splitter 1 x 4 Type
  • FTTH Fiber Optic ABS Box PLC Splitter / Corning Optical Fibre Splitter 1 x 4 Type
  • FTTH Fiber Optic ABS Box PLC Splitter / Corning Optical Fibre Splitter 1 x 4 Type
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number PLC-LCA-1x4 or PLC-SCA-1x4
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box
Delivery Time 3~7 days after payment
Payment Terms L/C,T/T,Western Union
Supply Ability 50,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 1x4 Connector LC/APC, FC/UPC, Or Customized
Fiber 9/125 Um SMF-28e Or Customer Appoint Fiber Length 1.0m, 1.5m
Cable Diameter 2.0mm, 3.0mm ABS Plastic Box Size 110x80x16mm
Insertion Loss 16.2dB PDL(Max.) 0.3dB
Return Loss 55dB Uniformity (Max.) 1.5dB
Highlight

Planar Lightwave Circuit Splitter

,

PLC Optical Splitter
Leave a Message
Product Description
FTTH Fiber Optic ABS Box PLC Splitter / Corning Optical Fibre Splitter 1 x 4 Type
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
Available Configuration Options
Split Ratios: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32, 2x64
Connector Types: SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, and custom configurations
Housing Options: ABS box type or metal box/module cassette type
Fiber Jacketing: 2mm up to 3mm outside boxes
Termination: Un-connectorized or connectorized options available
Key Features
  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability
  • Compliant with Telcordia GR-1221 and GR-1209 standards
FTTH Fiber Optic ABS Box PLC Splitter / Corning Optical Fibre Splitter 1 x 4 Type 0
Technical Specifications
General Specifications
Fiber Length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Performance Specifications - 1xN Configuration
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss (dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL (dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85°C) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Performance Specifications - 2xN Configuration
Port Configuration 2x2 2x4 2x8 2x16 2x32 2x64
Insertion Loss (dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss (dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss (-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1
Additional Services
OEM/ODM Services
We offer comprehensive OEM and ODM services, including custom branding on cables, packaging bags, labels, or any other requested location. Your brand logo can be prominently displayed on all goods.
Packaging
Standard export packaging using carton boxes, wooden boxes, or wooden pallets as required.
Shipping Options
International express services (UPS, TNT, DHL), international air freight (CA, AA, EA), and sea freight available.
