OM3 LC Fiber Optic Adapter 4 Ways Single Mode IEC Standards Customized

Good quality Fiber Optic Patch Cord for sales
Good quality Fiber Optic Patch Cord for sales
I'm Online Chat Now

OM3 LC Fiber Optic Adapter 4 Ways Single Mode IEC Standards Customized

China OM3 LC Fiber Optic Adapter 4 Ways Single Mode IEC Standards Customized supplier
OM3 LC Fiber Optic Adapter 4 Ways Single Mode IEC Standards Customized supplier OM3 LC Fiber Optic Adapter 4 Ways Single Mode IEC Standards Customized supplier OM3 LC Fiber Optic Adapter 4 Ways Single Mode IEC Standards Customized supplier

Large Image :  OM3 LC Fiber Optic Adapter 4 Ways Single Mode IEC Standards Customized

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001, RoHS
Model Number: LC/UPC, LC/APC, LC/PC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plastic module, carton box, wooden pallet
Delivery Time: 2~5 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500,000pcs/month
Contact Now
Detailed Product Description
Type: LC/UPC, LC/APC, LC/PC Material: Plastic, Metal
Chanel Way: 4 Ways Insertion Loss: 0.15dB
Return Loss: 55dB Fiber Mode: Singlemode, Multimode

OM3 LC Fiber Optic Adapter 4 Ways Single Mode IEC Standards Customized





Quick informations:
- Adapter type: LC/UPC single mode, LC/APC single mode, LC/PC multimode
- Channel way: 1 way (simplex), 2 ways (duplex)
- Fiber mode: single mode, multimode, OM3, OM4
- Color: blue, green, pink, beige, aqua, metal color


Descriptions:

- LC fiber optic adapter (also call LC optic fiber adapter) is available in single mode UPC and multimode SPC to sastify to connect single mode or multimode patch cable.

- LC adapter color is blue, green, beige, pink, aqua, metal color.

- Fiber optic adapters also call fiber optical adapter, optic fiber adapter, optical fiber adapter.

- The fiber optic adapters use to join two fiber optic patch cables together. It contains the interconnect sleeve, that holds the two ferrules together.



Applications:

- Testing instruments

- Connection between devices

- Connection between fiber optic patch cords

- CATV, MANS, WANS

- FTTX, FTTH



Advantage of the fiber optic adapters:

- Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.

- We provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.
- These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.

- Low Insertion Loss means there is little reduction in light intensity along the transmission router.

- High Reliability

- Also compliant with the IEC and ROSH standards



Product pictures:

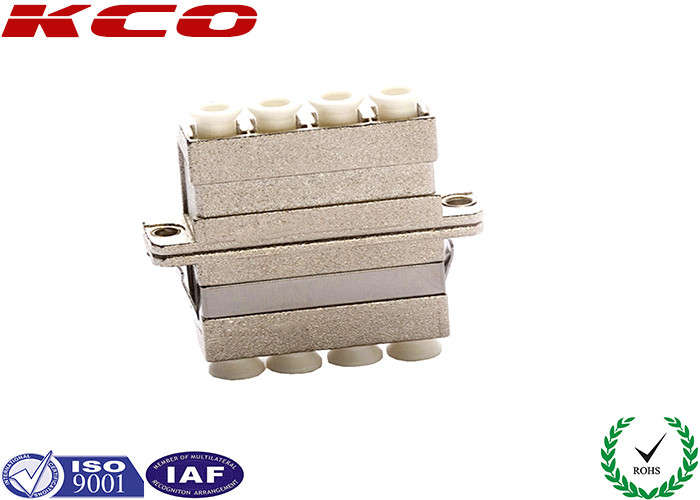

OM3 LC Fiber Optic Adapter 4 Ways Single Mode IEC Standards Customized

Specification of fiber optic adapters:

Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type of Connector Single Mode Multimode
Adapter Color Blue, green, metallic Beige, Metallic
Testing Wavelength 1310nm,1550nm 850nm,1300nm
Insert Loss Typical≤0.15dB, max≤0.2dB Typical≤0.15dB, max≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000Mating, max≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C~+70°C
Storage Temperature -40°C~+85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad .



Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
