Duplex SC Fiber Optic Adapters 55dB Return Loss Contains Interconnect Sleeve

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number SC/APC, SC/UPC, SC/PC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type SC/APC, SC/UPC, SC/PC Sleeves Material Ceramic (ZrO2)
Chanel Way Duplex Material Metal Or Plastic
Return Loss 55dB Color Blue, Green
High Light

fibre optic adapter

,

fiber optic cable adapter

Leave a Message
Product Description

Duplex SC Fiber Optic Adapters 55dB Return Loss Contains Interconnect Sleeve





Applications:

- Testing instruments

- Connection between devices

- Connection between fiber optic patch cords

- CATV, MANS, WANS

- FTTX, FTTH



Advantage of the fiber optic adapters:

- Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.

- We provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.
- These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.

- Low Insertion Loss means there is little reduction in light intensity along the transmission router.

- High Reliability

- Also compliant with the IEC and ROSH standards



Descriptions:

- SC fiber optic adapter is available in single mode UPC APC and multimode PC to sastify to connect single mode or multimode patch cable.

-  Fiber optic adapters also call fiber optical adapter, optic fiber adapter, optical fiber adapter.

- The fiber optic adapters use to join two fiber optic patch cables together. It contains the interconnect sleeve, that holds the two ferrules together.



Product pictures:

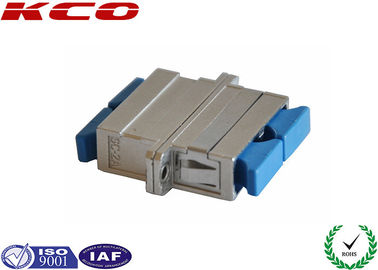

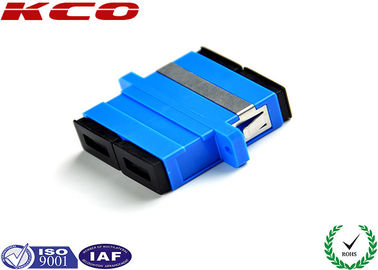

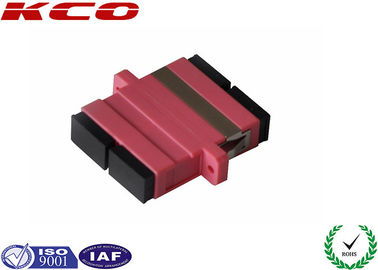

Duplex SC Fiber Optic Adapters 55dB Return Loss Contains Interconnect Sleeve 0



Specification of fiber optic adapters:

Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type of Connector Single Mode Multimode
Adapter Color Blue, green, metallic Beige, Metallic
Testing Wavelength 1310nm,1550nm 850nm,1300nm
Insert Loss Typical≤0.15dB, max≤0.2dB Typical≤0.15dB, max≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000Mating, max≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C~+70°C
Storage Temperature -40°C~+85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad .



Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB



Our fiber optic adapters packing ways:

Duplex SC Fiber Optic Adapters 55dB Return Loss Contains Interconnect Sleeve 1



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
