|Ferrule:||1.25mm, 2.5mm||Connector Type 1:||SC/APC, ST/APC, LC/APC, FC/APC, Etc|
|Fiber Mode:||Single Mode, Multimode||Connect:||By USB|

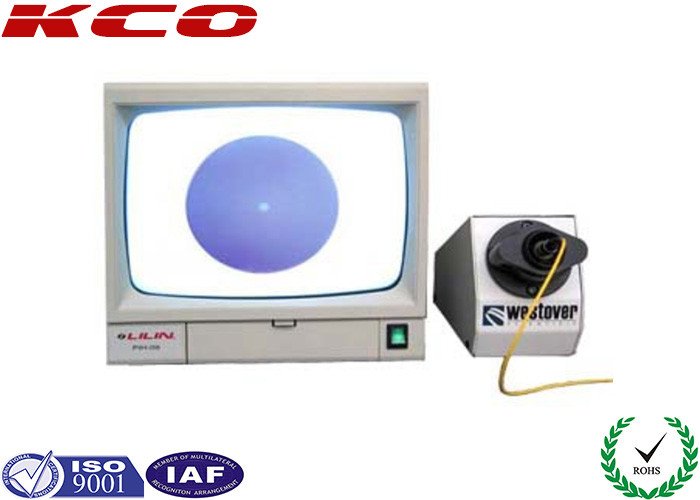

Ferrule End Face Fiber Optic Polishing Equipment Fiber Optic Inspection Microscope
Brand Name: KCO
Model Number: KCO-inspector
Product name: FIber optic ferrule end face inspector microscope
Insertion Loss: ≦0.2dB
Insert-Pull Test: 1000 times
Operating Temperature(°C): -40~85
- Fiber Scope: The main provider of microscope functions, high-end camera with a resolution of
0.5um, the image(s) has a sense of 3-D perspective, to identify the types of defects, and to achieve the best inspection result. It is handy to couple with the fixture(mount) for 1.25mm, 2.5mm, PC, APC, MPO finished/semi-finished fixture, MTRJ finished/semi-finished fixture, and FA fiber-matrix fixture.

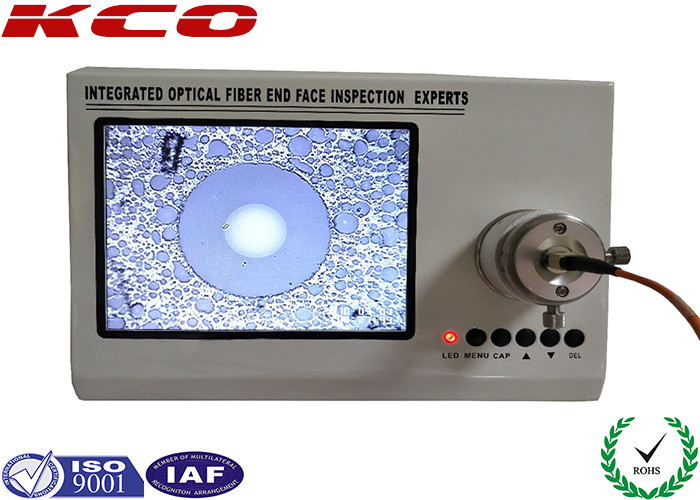

- 8-inch TFT-LED Display: Displays images according to user needs to adjust to the best imaging results, the images are silky comfort and minimize eye fatigue, no hidden corners, no noise and no interference.
- 2.5mm adaptor mount: for the test of 2.5mm PC ferrules, ceramic sleeves used never harmful to connectors.
- 1.25mm adaptor mount: for the test of 1.25mm PC ferrules, ceramic sleeves used never harmful to connectors.
- 12VDC power cord: for use with appropriate AC adaptor.
- 5-cord spring cord: for connection with Desktop base and 8-inch Display
- The cylindrical adjusting knobs on the X-axis and Y-axis enable adjustment in all directions (5.5x4.0 mm) Multi-axial alignment
- High definition and high resolution
- You can fix the located fiber core images by rotating two disk-shaped adjusting knobs right at the right and bottom of the Adapter socket. This solves the problem that the original model cannot be fixed. ●During high magnification observation, you can test any part of the fiber endface, thus achieving a balance between broad vision and high definition.
- With corresponding adapters supplied, you can test MTRJ (the lock pin type and finished product type), and MT/MPO/FA connectors.
- Applicable to manufacturers of all type of fiber optic patch cable.
Fiber optic patch cable/ pigtail production machine/ tool list:
|Work stage name||Machines/Tools|
|Ferrule bonding||Ferrule bonding by hand or automatic|
|Optic fiber Cut||Optic fiber cable Cutting machine|
|Fiber pares||Sable jacket stripper|
|Glue Modulate||Measuring cup|
|Epoxy 353ND glue|
|Curing||Cable jacket stripper|
|250um curing jig|
|125um curing jig|
|MTRJ curing jig|
|Dusty free paper|
|Getting glue away||Fiber reamer|
|50*50*cm rubber polishing pad|
|Ferrule stand plate|
|Polishing||High Frequency Cleaner|
|Rubber rubber polishing pad insert 75#|
|Rubber rubber polishing pad insert 55#|
|Hand polish disc-LC MU|
|Hand polish discST SC FC 250um|
|Polishing checking||Microscope, Optical fiber end face detector|
|Dusty free paper|
|Assembly||Assembling machine (connector boot bonding machine)|
|Screw glue 262#|
|Instant adhesives 414#|
|Test||Power metterInsertion Loss＆Return Loss|
|Dusty free paper|
|FC Test adaptor|
|SC Test adaptor|
|LC Test adaptor|
|FC Test Master|
|SC Test Master|
|ST Test Master|
|LC Test Master|
|Visual Fault Locator|
|Others||single sided glue|
|double sided glue|
