IEC Standard Ceramic Fiber Sleeve / Zirconia Sleeve For Fibers Optical Adapters

  • IEC Standard Ceramic Fiber Sleeve / Zirconia Sleeve For Fibers Optical Adapters
  • IEC Standard Ceramic Fiber Sleeve / Zirconia Sleeve For Fibers Optical Adapters
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-sleeve
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 50,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-sleever Diameter 1.25mm, 2.5mm
Fiber Mode Single Mode, Multimode Durability 1000 Times
IL 0.1dB RL 60dB
High Light

fiber optic cutting machine

,

optical fiber polishing machine
Leave a Message
Product Description

IEC Standard Ceramic Fiber Sleeve / Zirconia Sleeve For Fibers Optical Adapters





Descriptions:
- Zirconia, well known for its environment resistance and abration resistance, it is the key important materials for fiber optical network connection, especially for fiber optic adapter and attenuator.

- Ceramic sleeves (zirconia sleeve) are mostly used in Fiber optic adapter for the main purpose of connecting and aligning two inserted Ceramic Ferrules together.



Features:

  • Compliance with JIS, IEC standard
  • Stable pull out force
  • Good insertion loss repeatability
  • Custom design and high-mix low-volume is available
  • Material: Zirconia
  • Typical insertion loss: ≤0.1dB
  • Durability: >1000 times
  • Temperature range: -40 to 85 degree Celsius
  • Retention force: 200 to 600g
Product pictures:

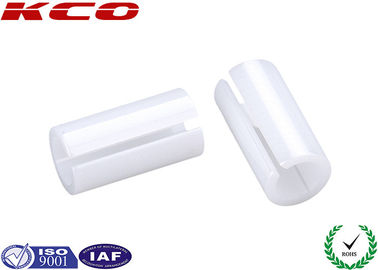

IEC Standard Ceramic Fiber Sleeve / Zirconia Sleeve For Fibers Optical Adapters 0

Ceramic Split sleeves and Solid ceramic sleeves.
- Ceramic Split sleeves are to hold ferrules in place firmly and to enable a stable connection with Fiber optic connectors.

- Solid ceramic sleeves (precision sleeves) are often used for connecting optical modules.

- Moreover, the solid ceramic sleeve requires a more accurate inner diameter process than the Ceramic split sleeve.



Ceramic Split Sleeves and Phosphor Bronze Split Sleeves:
- Ceramic Split sleeves are used in Adapters and other fiber optic components for fiber alignment to get minimal insertion loss of the transmitted light signal.

- Phosphor Bronze Split Sleeves are an economical solution for applications where tremendous durability and repeated connect / disconnect operations are not required.

-Ceramic Splits sleeves and Phosphor Bronze Split Sleeves are categorized into two types used for ferrule outer diameters of 12.5mm and 2.5mm.

- They are used for connecting and aligning ferrules used with ST, FC, SC, LC and MU Fiber Connectors.

- LFO provides several kinds of ceramic split sleeves and Phosphor Bronze Split Sleeves with various -Ferrules pull force requirements for φ2.5mm OD Ferrules used for SC, FC and ST Fiber Adapters and for φ1.25mm OD Ferrules used for LC and MU Fiber Adapters.

- We also provide sleeves with special configurations, such as taped or chamfered in ends.

- Those configurations were uniquely designed to reduce the sleeve's broken rate and ferrule surface's abrasion when inserting the adapters into the sleeves.

- The configuration of products is greatly improved on the basis of considering requirements of pull-out force, insertion loss and length.

- Besides Standard singlemode and multimode ceramic sleeves for standard FC, ST, SC, LC, MU fiber adapter.

- We also offer custom manufacturing Non standard ceramic sleeves, both split and solid types of various length and O.D.



Package:

IEC Standard Ceramic Fiber Sleeve / Zirconia Sleeve For Fibers Optical Adapters 1

Specification:

Type Singlemode(PC) Singlemode(APC) Multimode (PC)
Insertion Loss ≤0.2 dB
Plug and unplug force (g/f) 200-600
Durablity plug and unplug 1000times
Operating Temperature -40℃ to +75℃
