Payment & Shipping Terms:
|Cutting Length:||Max 200m||Cable Type:||Indoor Cable Simplex, Duplex, Multifibers|
|Bear Weight:||40kg Of Cable Roll||Dimension:||700x400x750mm|
fiber optic cutting machine,
fiber optic polishing machine

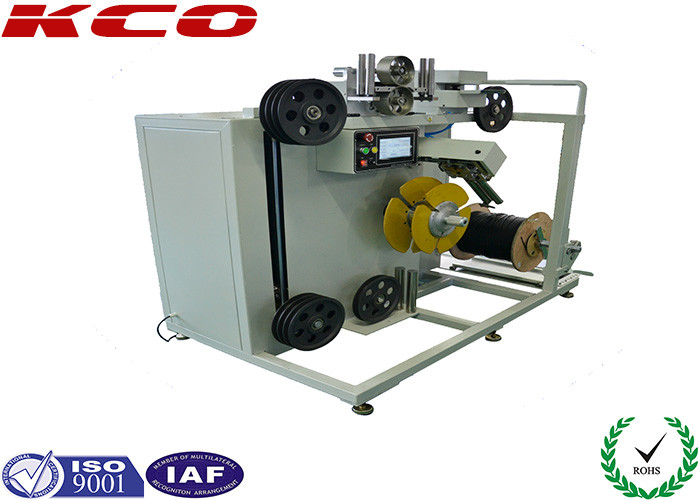

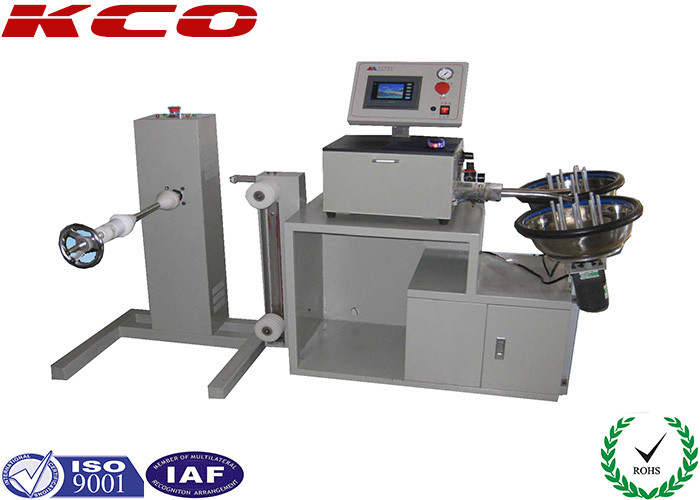

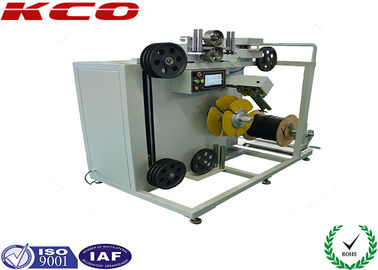

Full automatic fiber optic cable cutting machine, optical cable cutter
The KCO-cutter-01 fiber optic cable cutting machine is full automatic machine, use to cut the indoor fiber optic cable. It large use in fiber optic patch cable/pigtail production line. In addition of this type of fiber optical cable cutting machine, we also can supply the full automatic of FTTH cable cutting machine also. Please call us or send e-mail to us with your detail request to get more information about them.
- Automatic Opical Fiber Cutting Machine is applied for producing fiber optic patchcord, and it is a professional equipment with measuring length / cutting and winding fuctions.
- It could cut different indoor optical fibers into required length and wind cable into circularity.
- This equipment integrates the advantages from China and oversea factory’s cutting machines, and increas an automatic feedback function for data groups.
- It makes the measuring accuracy impove better.
- It includes automatic winding and automatic cutting functions to protect the optical fiber.
- Friendly touch screen interface, compact window, self-defined language: Chinese / English / Korea.
- Easy to handle, High precision, High speed, Low noise. It is the best machine for cable cutting and winding.
Scope of Application:
- Specifications of fiber-optic cables supported: standard φ0.9—φ4.0 single-core or dual-core fiber-optical.
- Cutting length: 0.3-200 meters per cutting.
- Accuracy of cutting: 5‰ per 100 meters.
- The longest cutting length: 200 meters.
- Diameters of cable winding disk: 360mm.
- Finish diameter of fiber-optic cables: 80mm-140mm.
- Maximum weight of fiber-optic cables on machine: 42Kg.
- Applicable cables: φ0.9mm—φ4.0mm, including single and double cores cable or multi-cores cables with a outside diameters less than 4mm, such as φ0.9 tight-buffered fiber-optic cables, φ3.0mm single or double cores cables.
- Cutting length of cables: between 1-200m.
- Maximum winding length: over 200m for φ3.0mm single-core cable
- Diameter of cables shaft applicable: no more than φ600mm in diameter and no more than 30kg in weight
- Accuracy of cutting: 100Mx5‰
- Velocity of cutting cables: 0.3~1.2m/s
- Retraction of cables: no more than 1cm/m
- Adjusting range of cable take-up disk: φ80mm—φ180mm
- Even winding on disks, no intertwining for dual-core cables
- Convenient and quick use of cables
|Main unit length*width*height||590x390x240mm|
|Machine cabinet length*width*height||900x400x650mm|
|Cables pay-off machine length*width*height||700x400x750mm|
|Relative humidity||15% ~ 85%|
|Power supply||220~230VAC 50Hz/60 Hz|
|Power consumption||Cable cutting machine 80w|
|cable pay-off machine 370w|
|- Environmental temperature||-10℃~50℃|
|- Relative humidity||15%~85%|
|- Vibration||1.0g, 5~100Hz, 45min|
|- Bearable impact||5cm free fall
According to export standard packing.
OEM/ODM service: Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.
