ACS / ACS-2 Armored Outdoor Optical Fiber Cable Slitter Fiber Optic Tools

Place of Origin America
Brand Name Miller
Certification ISO9001
Model Number ACS-2
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~3 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Metal Application FTTH, CATV
Diameter 8mm-28.6mm Weight 284g
Part No. ACS Part No.: 37880 Size 5 In (127 Mm)
High Light

fiber optic accessories

,

fiber optic tools and equipment

Leave a Message
Product Description

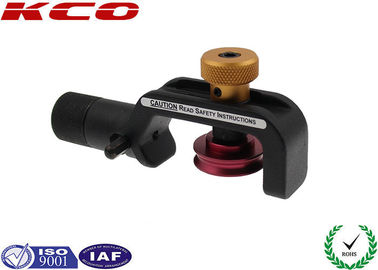

Miller ACS/ACS-2 Armored Outdoor Optical Fiber Cable Slitter



The ACS Tools are designed to work on jacketed or jacketed and armored multi-fiber cable.

Their main purpose is to gain midspan access to fiber optic conductors by slitting the outer jacket or jacket and armor on the above cables.

The tools are designed with a precision adjustable blade to avoid damage to the fibers.

The cable outer diameter range is noted below for each model.

The blade can be set up to .215 "(5.5mm) deep for each model.



Model Cable Diameter Range Guide Wheel Color
ACS 5/16"~1-1/8" (8mm-28.6mm) Gold
ACS-2 5/32"~ 25/64"(4mm-10mm) Red
  • Professional grade tool ideal for slitting the corrugated copper, steel or aluminum armor layer on Fiber Feeder, Central Tube, Stranded Loose Tube fiber optic cables and other armored cables
  • Versatile design allows jacket or shield slitting on non-fiber optic cables as well
  • Tool slits outer polyethylene jacket and armor in one operation
    – Performs longitudinal slitting and circumferential (ringing) for end stripping
    – Blade rotates 90 degrees by activating blade lever, allowing easy mid-span preparation (ringing and slitting)
  • ACS 2 is adjustable from 0.157 in. (4 mm) to .393 in. (10 mm) for smaller cable O.D. options
  • Adjustable blade depth to 5.5 mm maximum to accommodate different cable jackets
  • Cable guide wheel provides cable stability and allows for easier tool movement along the cable
  • Rugged anodized aluminum and steel construction
  • Cable guide wheel for smaller cable sizes can be ordered separately
  • Made in the U.S.A.
  • U.S. Patent Nos.: D505, 056S
  • Replacement blade: Part No.: 37884 (CB 251-K)
  • Height: 5 in (127 mm)
  • Weight: 10 oz (284 g)
  • Part #: 37897

Pictures:

ACS / ACS-2 Armored Outdoor Optical Fiber Cable Slitter Fiber Optic Tools 0

ACS / ACS-2 Armored Outdoor Optical Fiber Cable Slitter Fiber Optic Tools 1

ACS / ACS-2 Armored Outdoor Optical Fiber Cable Slitter Fiber Optic Tools 2
