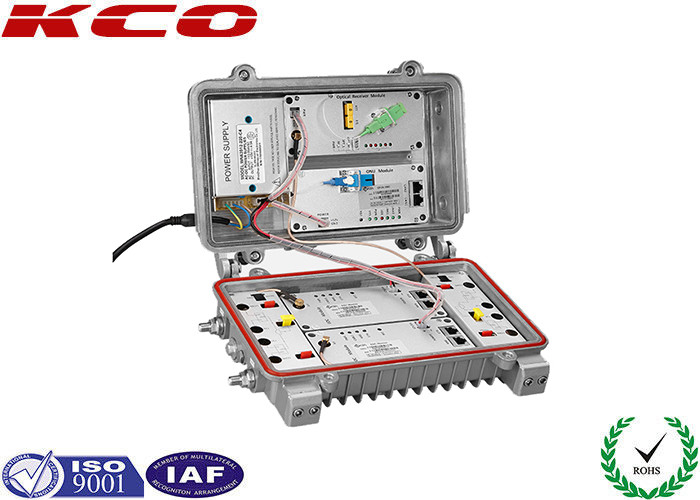

KCO7934 EOC Master Ethernet Over Coaxial VOD CATV IPTV EOC ONU OR
- KCO7934 is an all-in-one EOC Master with EOC master module, ONU module and OR module.
- We can use one KCO7934 to instead of three type products, HFC optical node, EPON ONU and EOC mater.
- It can reduce the number of active node in the system, decreasing failure rate and saving a space.
- It is the best choice of CATV, Internet and VOD for the operator.
- The EOC Master Module in the CD7934 is based the Qualcomm AR7410 chipset solution, with high anti jamming capability OFDM technology.
- The 7.5-65MHz low frequency band is used for EOC signals.
- Built in high isolation filter as CATV RF and EOC signal mixer, the EOC signal and CATV signal in 87~862MHz can run on one cable without interference.
- The EOC Master can provide high speed data service.
- The PHY Layer speed is 600Mbps, the MAC Layer throughput is up to 320Mpbs.
- The OR module in the KCO7934 can provide an HFC optical input and one RF output.
- The CATV signal will convert from optical to RF signal here.
- The OR module is a high quality optical receiver product.
- It received the optical signal from the TX of HFC network, and the signal processed by the PIN, Amplifier, EQ and AGC to a stable RF output.
- The output level will be up to 108dBuv.
- The ONU module in the KCO7934 designed with one EPON port, two standard 10/100/1000 Base-TX Ethernet ports.
- It provides the key functionality of 802.3ah EPON ONU.
- By using the EPON technology, the ONU module provides a high-speed data channel through a single optical fiber with a rate of 1.25 Gbit/s on bi-direction.
- In addition, it offers the QOS, flexible bandwidth allocated to provide quality high-speed data service, voice service, and video service.
|Specification of EOC Module|
|Interface and LED Indicator||RF Port||1*EOC low-frequency signal output port, support F- Female or SMB connector|
|Ethernet Port||Two 10/100/1000Mauto-negotiation, RJ45|
|LED Indicator||1 for Power Supply Status
1 CABLE Link Status indicator
2 for Ethernet Ports Status
|Performance Parameters||RF Parameters||Frequency Band :7.5-65MHz
RF Output Level:110±5dBuv@ output of moduleReceive sensitivity: 45dBuv
Throughput on MAC Layer:320Mbps
|Modulation Mode||OFDM~ 2690~carriers 4096,1024,256,64,16,8~QAM, QPSK, BPSK, ROBO|
|Standard||EOC Standard||IEEE P1901(Draft)
|Ethernet Standard||IEEE 802.3, IEEE 802.3x, IEEE 802.3u
|Software||Network Management||WEB, CLI, SNMP|
|Software Features||VLAN, QOS, Bandwidth Control, Broadcast storm limitation|
|Specification of OR|
|Optical Specifications||Wavelength||1100～1600 nm|
|Optical Power Input Range||-8～+2 dBm|
|Recommend optical Power Input Range||-6～0 dBm|
|Optical Input Return Loss||≥45 dB|
|RF Specifications||Bandwidth||45～870 MHz|
|Stability of RF output under Operating Temperature||≤5 dB|
|Nominal RF Output Level||108 dBuV|
|Return Loss||≥14 dB|
|Power consumption||<7.5 W|
|Optical and temperature AGC||Stability of RF output under optical AGC||≤±1 dB|
|LED Indicator||Indicator Description||RUN: module operating
RF: RF signal
PWR:Power is coming up
OPTH: Optical power is higher
OPTM: Optical power is nominal
OPTL: Optical power is lower
|Specification of ONU Module|
|Interface||PON Interface||One EPON port
Meet 1000BASE-PX20 standard
Up to 1.25Gbps Upstream and Down-stream
Single-mode fiber, single-strand
Maximum split ratio 1:64
Up to 20Km distance @ 1:32
|Ethernet Interface||Two 10/100/1000Mauto-negotiation
RJ45 type connector , Auto MDI/MDI-X
Up to 100m distance
|Performance Parameters||PON Optical Parameters||Wavelength: Upsteam1310nm, Downstream 1490nm
Transmitter Optical Power: 0～4dBm
Optical Receive Sensitivity: -27dBm
Saturation Optical Power:-3dBm
|Data Transfer Parameters||Data Transfer Rate: Upstream 900Mbps；Downstream 950Mbps
LAN Interface: 1000Mbps
Packet Loss:<1*10E-12 latency:<1.5ms
|Business Capability||Layer 2 wire speed switching
Support VLAN TAG/UNTAG,VLANconversion
Support Port-based speed limitation
Support Priority classification
Support storm control of broadcast
|Network Management||Management Mode||Support IEEE802.3 QAM, ONU can be remotely managed by OLT
Support Remote management through SNMP and Telnet
|Function||Status monitor, Configuration management, Alarm management, Log management|
|Indicator||Indicator Description||PWR: Power up or down
LOS: Optical Link Status
PON: ONU registered
LNK: Link Status
|Physical Features||Power supply & Consumption||Power Supply: 220V/60V optional
|Size & Net weight||Dimension: 290×220×120mm
|Environment Attribute||Working Temperature: -10~65℃
Storage Temperature: -40~85℃
Working humidity: 10%~90%non-condensing
Storage humidity: 10%~90% non-condensing
