FTTH drop SC Optical Fibre Connectors Housing Set For Drop Patch Cord

  • FTTH drop SC Optical Fibre Connectors Housing Set For Drop Patch Cord
  • FTTH drop SC Optical Fibre Connectors Housing Set For Drop Patch Cord
  • FTTH drop SC Optical Fibre Connectors Housing Set For Drop Patch Cord
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC/APC, SC/UPC, SC/PC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type SC FTTH Color Blue
Insertion Loss 0.2dB Return Loss 55dB
Mode Single Mode, Multi Mode, Mono Mode Diameter 0.9mm, 2.0mm, 3.0mm
Highlight

fibre optics connectors

,

optical fibre cable connectors
Leave a Message
Product Description
FTTH Drop SC Optical Fiber Connectors Housing Set
Specialized housing set designed for creating patch cords using FTTH fiber optic cables. Suitable for both indoor FTTH cables and outdoor drop cables, available in green, blue, and black boot colors.
Product Overview
The SC connector features a 2.5mm ceramic ferrule that securely holds a single fiber. The nickel-plated brass connector body includes a key-aligned, threaded locking coupling nut for reliable, repeatable connections. The threaded design ensures secure performance even in high-vibration environments.
Key Features
  • High-quality ceramic components and materials
  • End-face geometry compliant with Telcordia GR-326-CORE standards
  • 100% tested for optical performance (Insertion Loss & Return Loss)
  • Available in simplex, duplex, and higher core densities
  • Compatible with 900 micron, 2mm, and 3mm cable applications
  • Tunable keying capability for optimal insertion loss alignment
Applications
  • Telecommunication Networks
  • Local Area Networks (LAN)
  • CATV Systems
  • FTTH Deployments
  • Testing Equipment
Technical Specifications
Component Material
Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Performance Specifications
Parameter Single Mode Multimode
Insertion Loss (per connector) 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB (PC)
≥50 dB (UPC)
≥60 dB (APC)		 N.A
Insertion Loss (MTRJ Connector) 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N
Product Image

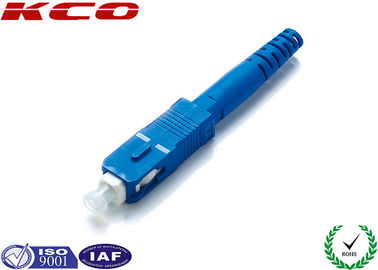

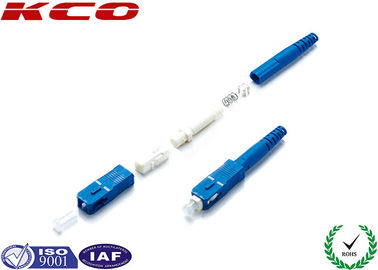

FTTH drop SC Optical Fibre Connectors Housing Set For Drop Patch Cord 0
Ordering Information
When ordering, please specify:
  • Connector type: SC, LC, FC, ST, MTRJ, etc.
  • Polish type: UPC, PC, APC
  • Mode: Single mode or Multimode
  • Fiber count: Simplex or Duplex
  • Connector boot diameter: 0.9mm, 2.0mm, or 3.0mm
    • OEM/ODM Services
    Custom branding available for cables, packaging, labels, and other components. Our OEM and ODM services are ready to accommodate your specific requirements.
    Packaging & Shipping
    Standard export packaging using carton boxes, wooden boxes, or wooden pallets. Shipping options include international express (UPS, TNT, DHL), international air freight, and sea freight.
