KCO-DIN-SC-SM-06 Fiber Optic Din Rail Terminal Box Single Mode SC 6 Ports FTTH GPON

  • KCO-DIN-SC-SM-06 Fiber Optic Din Rail Terminal Box Single Mode SC 6 Ports FTTH GPON
  • KCO-DIN-SC-SM-06 Fiber Optic Din Rail Terminal Box Single Mode SC 6 Ports FTTH GPON
  • KCO-DIN-SC-SM-06 Fiber Optic Din Rail Terminal Box Single Mode SC 6 Ports FTTH GPON
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-DINRAIL-SC-SM-06
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month
Product Details
Material Steel Tape Cable Port 2 Cable Ports
Adapter Ports 6 Port Adapter SC Single Mode
Application Din Rail, Indoor Rack Mountable Capacity 6 Cores
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
KCO-DIN-SC-SM-06 Fiber Optic DIN Rail Terminal Box Single Mode SC 6 Ports FTTH GPON
KCO-DINRAIL-SC-SM-06 Optical Fiber DIN Rail Splice Terminal Box Single Mode SC 6 Ports FTTH GPON
Overview
DIN rail fiber optic splice terminal box is a metal or plastic enclosure specifically designed to snap onto DIN rails in fiber optic distribution frames. It features easy installation and maintenance while saving valuable space.
This terminal box accepts one modular panel, making it ideal for smaller fiber count applications. With its dustproof design, it's suitable for rack dustproof installations and compatible with most adapters. Widely applied for distribution and end connection of indoor cables.
Quick Information
Name DIN Rail Fiber Optic Splice Terminal Box
Part Number KCO-DINRAIL-SC-SM-06
Cable Ports 2 cable ports
Adapter Ports 6 adapter ports
Suitable For SC simplex adapter, LC duplex adapter (Single mode, Multimode, OM3, OM4)
Splice Capacity Maximum 6 cores
Size 130×128.8×36.5mm
Weight Approximately 0.8kg

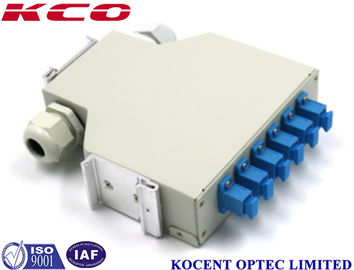

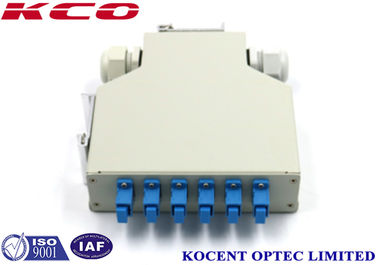

KCO-DIN-SC-SM-06 Fiber Optic Din Rail Terminal Box Single Mode SC 6 Ports FTTH GPON 0 KCO-DIN-SC-SM-06 Fiber Optic Din Rail Terminal Box Single Mode SC 6 Ports FTTH GPON 1
Key Features
  • Cold-roll steel construction with electrostatic painting
  • Compatible with various adapters: FC, SC, ST, LC, and more
  • 2 cable entry/exit ports; 4, 6, 8, or more pigtail entry/exit ports
  • Maximum capacity: 4, 6, 8, or more adapters
  • Integrated splice holders for fusion splices
  • IP20 protection rating
  • Rear or aside DIN rail fixation options
  • 2 rear entries with PG 11 cable gland
  • Standard grey color (RAL 7035)
Applications
  • Suitable for pigtail, ribbon, and bunch cable connection distribution
  • Ideal for wall-mounted applications
  • Used in FTTH, Telecommunications, CATV, and related industries
KCO-DIN-SC-SM-06 Fiber Optic Din Rail Terminal Box Single Mode SC 6 Ports FTTH GPON 2
Dimensions & Packaging
Specification Measurement
Box Size 130×128.8×36.5mm
Packing Box Size 165×155×45mm
Net Weight Approximately 0.8kg
KCO-DIN-SC-SM-06 Fiber Optic Din Rail Terminal Box Single Mode SC 6 Ports FTTH GPON 3 KCO-DIN-SC-SM-06 Fiber Optic Din Rail Terminal Box Single Mode SC 6 Ports FTTH GPON 4
OEM/ODM Services
We offer comprehensive OEM and ODM services. Customize your brand logo on cables, packaging bags, labels, or any visible surface according to your requirements.
Packing & Shipping
Standard export packing includes carton boxes, wooden boxes, and wooden pallets. Shipping options available via international express (UPS, TNT, DHL), international air freight, and sea freight.
